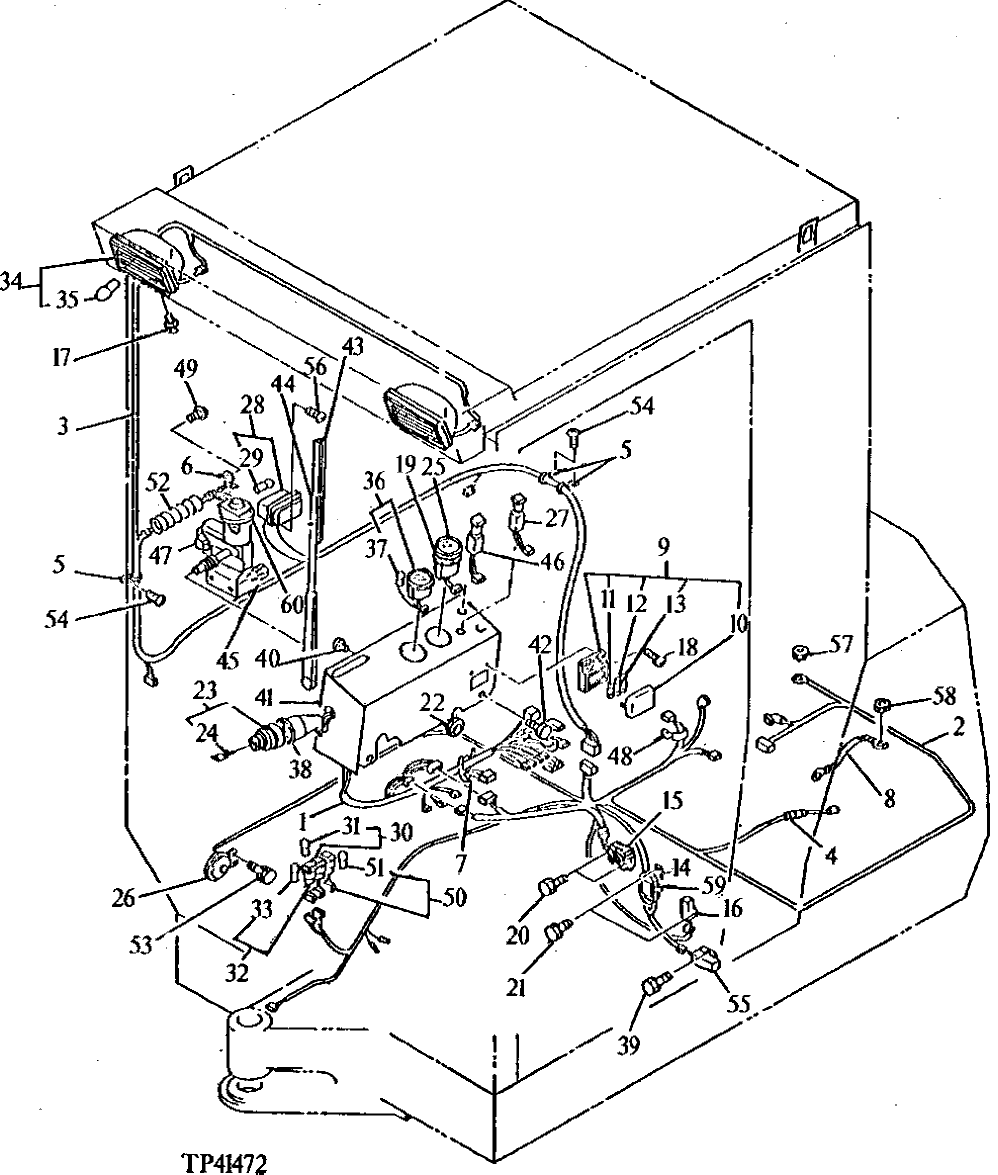

Запчасти John Deere 5 4 - GAUGES, SWITCHES AND LIGHTS 1674 - ELECTRICAL SYSTEM 16

1

T110309

WIRING HARNESS

1шт.

2

WIRING HARNESS

( T111190 NO LONGER AVAILABLE)

1шт.

3

T113966

WIRING HARNESS

1шт.

4

T110092

LINK

(FUSIBLE)

1шт.

5

T110094

TIE BAND

3шт.

6

T110094

TIE BAND

1шт.

7

T110612

TIE BAND

3шт.

8

T110624

GROUND CABLE

(GROUND)

1шт.

9

AT110212

FUSE BOX

1шт.

10

T110400

COVER

1шт.

11

CH11320

FUSE

(5A) (COOLANT TEMPERATURE AND ENGINE OIL INDICATORS)

1шт.

12

CH11321

FUSE

(10A) (FUEL TRANSFER PUMP HEATER AND LIGHTS)

2шт.

13

AT39227

FUSE

(SUB FOR CH11322 OR T116143) (15A) (WIPER AND HORN)

2шт.

14

T111000

RELAY

(SAFETY)

1шт.

15

T110995

REGULATOR

1шт.

16

T111001

INDICATOR LAMP

1шт.

17

19M7932

CAP SCREW

M8 X 16

2шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

18

M801342

SCREW WITH WASHER

2шт.

19

T110388

WASHER

1шт.

20

19M7077

CAP SCREW

M6 X 20

2шт.

12M7006

LOCK WASHER

6 MM

2шт.

21

19M7077

CAP SCREW

M6 X 20

2шт.

12M7006

LOCK WASHER

6 MM

2шт.

22

T110622

GROMMET

1шт.

23

AT110584

SWITCH

(IGNITION)

1шт.

24

AT110583

KEY

1шт.

25

T110524

HOUR METER

1шт.

26

T110480

HORN

1шт.

27

T110370

SWITCH

(LIGHT)

1шт.

28

AT111676

LAMP

1шт.

29

T113967

BULB

1шт.

30

AT110216

LAMP

(ALTERNATOR)

1шт.

31

T110522

BULB

1шт.

32

AT110217

LAMP

(OIL)

1шт.

33

T110522

BULB

1шт.

34

AT111677

FLOODLAMP

2шт.

35

T111740

BULB

1шт.

36

AT110589

TEMPERATURE GAUGE

1шт.

37

T111335

BULB

1шт.

38

T111336

COVER

1шт.

39

19M7077

CAP SCREW

M6 X 20

2шт.

12M7006

LOCK WASHER

6 MM

2шт.

40

T110323

SCREW

2шт.

41

AT110185

PANEL

1шт.

42

12M7006

LOCK WASHER

6 MM

2шт.

19M7923

CAP SCREW

M6 X 12

2шт.

43

TY16302

WIPER BLADE

(SUB FOR T110387) (ALSO ORDER TY16312)

1шт.

44

T113968

WIPER ARM

1шт.

45

T111315

SCREW WITH WASHER

3шт.

46

T110520

SWITCH

1шт.

47

T113969

WIPER MOTOR

1шт.

48

T111144

CLAMP

1шт.

49

21M7209

SCREW

M4 X 10

1шт.

50

AT110593

LAMP

1шт.

51

T110522

BULB

1шт.

52

T113970

POWER CORD

1шт.

53

12M7006

LOCK WASHER

6 MM

2шт.

19M7923

CAP SCREW

M6 X 12

2шт.

54

T110426

SCREW

3шт.

55

T111002

RESISTOR

1шт.

56

T110426

SCREW

2шт.

57

14M7139

NUT

M4

1шт.

58

14M7274

NUT

M10

1шт.

59

T111739

TIE BAND

1шт.

60

CH16579

CLAMP

1шт.
