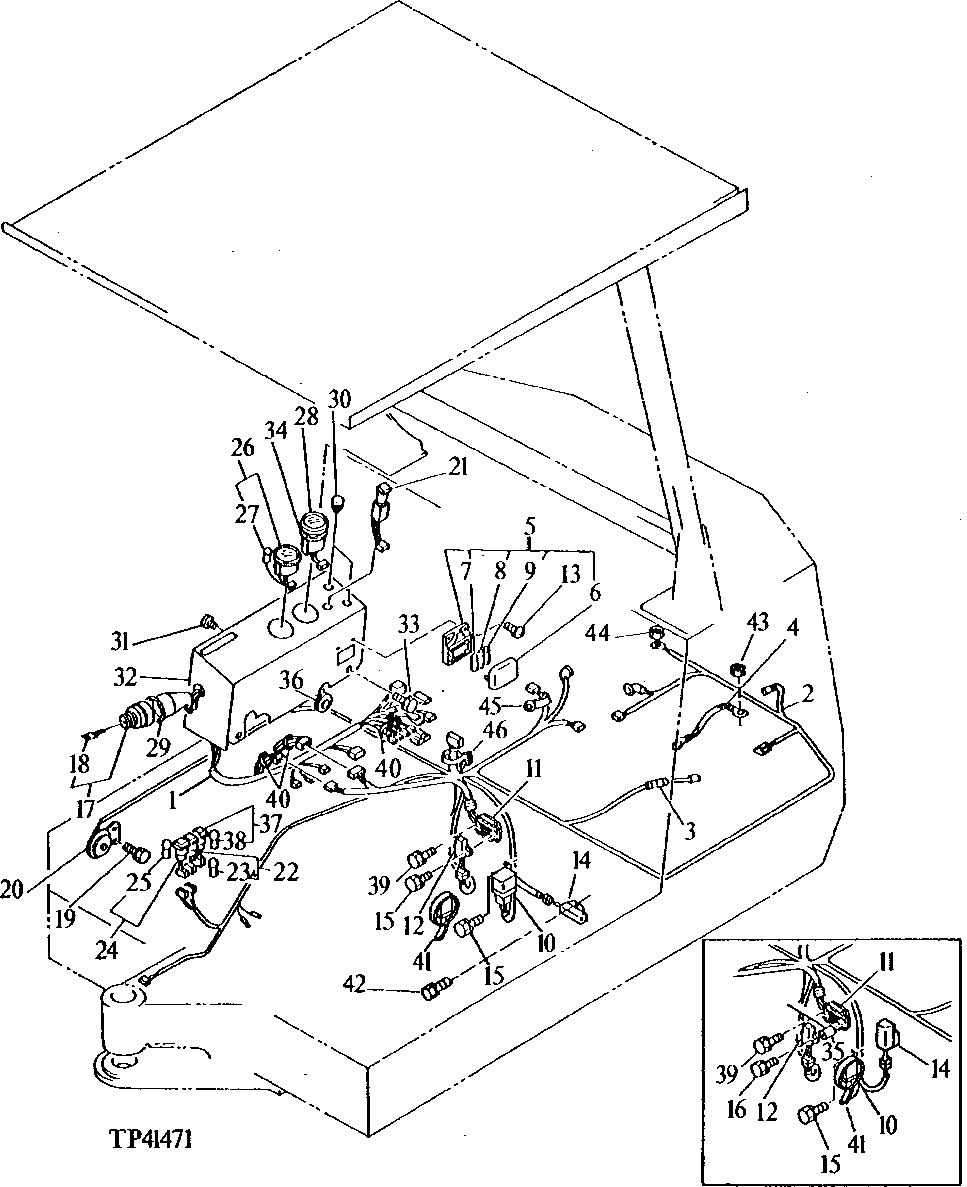

Запчасти John Deere 5 2 - GAUGES, SWITCHES AND LIGHTS 1674 - ELECTRICAL SYSTEM 16

1

T110309

WIRING HARNESS

1шт.

2

WIRING HARNESS

( T111190 NO LONGER AVAILABLE)

1шт.

3

T110092

LINK

(FUSIBLE)

1шт.

4

T110624

GROUND CABLE

(GROUND)

1шт.

5

AT110212

FUSE BOX

1шт.

6

T110400

COVER

1шт.

7

CH11320

FUSE

(5A) COOLANT TEMPERATURE AND ENGINE OIL INDICATORS

1шт.

8

CH11321

FUSE

(10A) (FUEL TRANSFER PUMP HEATER AND LIGHTS)

2шт.

9

AT39227

FUSE

(SUB FOR CH11322 OR T116143) (15A) WIPER AND HORN

2шт.

10

T111000

RELAY

(SAFETY)

1шт.

11

T110995

REGULATOR

1шт.

12

T111001

INDICATOR LAMP

1шт.

13

M801342

SCREW WITH WASHER

2шт.

14

T111002

RESISTOR

(GLOW RESISTOR)

1шт.

15

CH19135

BOLT

2шт.

16

T110451

BOLT

1шт.

17

AT110584

SWITCH

(IGNITION)

1шт.

18

AT110583

KEY

1шт.

19

CH13781

BOLT

2шт.

20

T110480

HORN

1шт.

21

T110370

SWITCH

(LIGHT)

1шт.

22

AT110216

LAMP

(ALTERNATOR)

1шт.

23

T110522

BULB

1шт.

24

AT110217

LAMP

(OIL)

1шт.

25

T110522

BULB

1шт.

26

AT110589

TEMPERATURE GAUGE

1шт.

27

T111335

BULB

1шт.

28

T110524

HOUR METER

1шт.

29

T111336

COVER

1шт.

30

T110011

GROMMET

2шт.

31

T110323

SCREW

2шт.

32

AT110185

PANEL

1шт.

33

CH13781

BOLT

2шт.

34

T110388

WASHER

1шт.

35

T110402

BUSHING

1шт.

36

T110622

GROMMET

1шт.

37

AT110593

LAMP

1шт.

38

T110522

BULB

1шт.

39

CH19135

BOLT

1шт.

40

T110612

TIE BAND

(SUB FOR T110311, THIS APPLICATION)

3шт.

41

T111739

TIE BAND

1шт.

42

CH19135

BOLT

1шт.

43

14M7274

NUT

M10

1шт.

44

14M7139

NUT

M4

1шт.

45

T111144

CLAMP

1шт.

46

T111739

TIE BAND

1шт.
