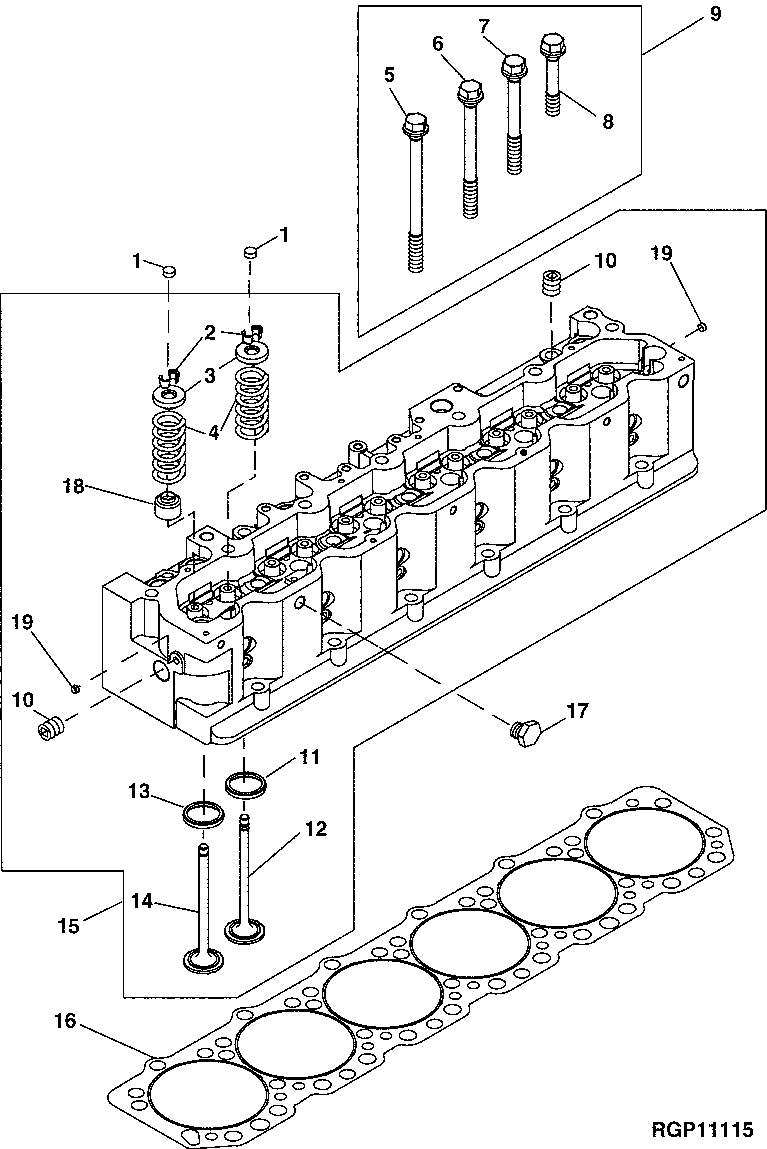

Запчасти John Deere 35C RTS 56 - 5104 CYLINDER HEAD AND VALVES 0400A 6081HT002 6081HT002 6081HT002

1

T20129

Cap

12шт.

2

T20077

Retainer

24шт.

3

R500098

Cap

12шт.

4

R502187

Compression Spring

12шт.

5

R121491

Cap Screw

(A) 14.275 X 202.997 mm (9/16" X 7.992")

7шт.

6

R121490

Cap Screw

(A) 14.275 X 174.498 mm (9/16" X 6.870")

8шт.

7

R502911

Screw

(A) 14.275 X 121.691 mm (9/16" X 4.791")

6шт.

8

R502912

Screw

(A) 14.275 X 163.703 mm (9/16" X 6.445")

5шт.

9

RE506501

Bolt Kit

(A)

1шт.

10

15H690

Pipe Plug

3/4"

11шт.

11

R121193

Valve Seat Insert

(B)

6шт.

12

R84618

Intake Valve

STD

6шт.

R93308

Intake Valve

0.08MM (.003") OS

ARшт.

R93312

Intake Valve

0.38MM (.015") OS

ARшт.

R93314

Intake Valve

0.76MM (.030") OS

ARшт.

13

R119132

Valve Seat Insert

(B)

6шт.

14

R84619

Exhaust Valve

STD

6шт.

R93311

Exhaust Valve

0.08MM (.003") OS

ARшт.

R93313

Exhaust Valve

0.38MM (.015) OS

ARшт.

R93315

Exhaust Valve

0.76MM (.030") OS

ARшт.

15

RE519894

Cylinder Head

(MARKED R130818 OR RE506 503 ) (SUB FOR RE502211)

1шт.

SE501577

Cylinder Head Reman

(REMAN FOR RE519894)

1шт.

16

RE55475

Engine Cylinder Head Gasket

1шт.

17

19H2367

Cap Screw

5/8" X 3/4"

1шт.

18

R501640

Shield

6шт.

19

R515575

Plug

2шт.
