Запчасти John Deere 35C RTS 48 - 5002 OIL PUMP 0400A 6081HT002 6081HT002 6081HT002

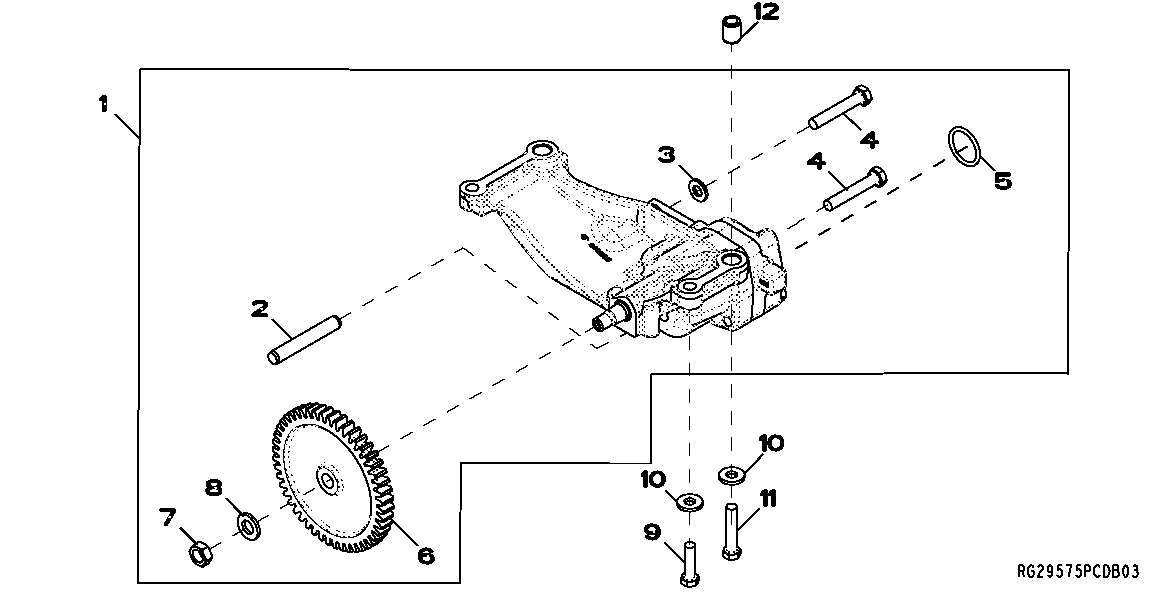

Схема запчастей John Deere 35C RTS - 48 - 5002 OIL PUMP 0400A 6081HT002 6081HT002 6081HT002

Артикул

Название

Примечание

Количество

1

RE519513

Oil Pump

(MARKED R518347) (SUB RE533975)

1шт.

SE501270

Oil Pump Reman

(A) (MARKED R518347) (REMAN FOR RE519513)

1шт.

RE507076

Oil Pump

(MARKED R504028)

1шт.

SE500877

Oil Pump Reman

(A) (MARKED R504028) (REMAN FOR RE507076)

1шт.

2

R62943

Quick Lock Pin

1шт.

3

24M7239

Washer

10.700 X 21 X 2.500 mm

2шт.

4

19M9399

Cap Screw

M10 X 60 , (USE WITH RE51 9513, RE533975 OR SE501270)

3шт.

R104628

Screw

(USE WITH RE507076 OR SE500877)

3шт.

5

R71732

O-Ring

1шт.

6

R529397

Gear

SUB FOR R526290

1шт.

7

14H826

Nut

1/2"

1шт.

8

T21242

Washer

1шт.

9

19H3219

Cap Screw

3/8" X 1-3/8"

2шт.

10

R57696

Washer

4шт.

11

19H3759

Cap Screw

3/8" X 1-7/8"

2шт.

12

R500642

Bushing

2шт.

Выбрано товаров: 16
