Запчасти John Deere 35C RTS 38 - 9901 CRANKSHAFT OIL SEAL AND HOUSING 0400A 6081HT002 6081HT002 6081HT002

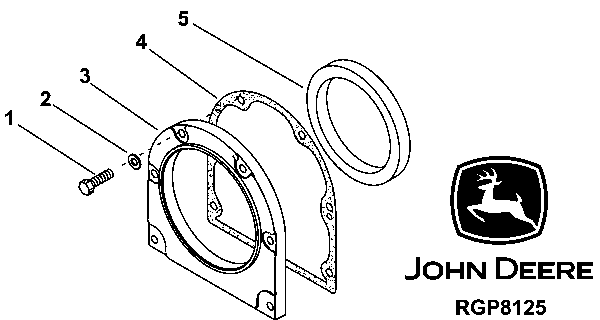

Схема запчастей John Deere 35C RTS - 38 - 9901 CRANKSHAFT OIL SEAL AND HOUSING 0400A 6081HT002 6081HT002 6081HT002

Артикул

Название

Примечание

Количество

1

19H2117

Cap Screw

5/16" X 1-1/8"

6шт.

2

T27860

Washer

8.740 X 17.500 X 1.664 mm (11/32" X 0.689" X 0.066")

6шт.

3

R125027

Housing

1шт.

4

R520504

Gasket

(SUB FOR R26058)

1шт.

5

RE520036

Seal

(SUB FOR RE504363)

1шт.

Выбрано товаров: 5
