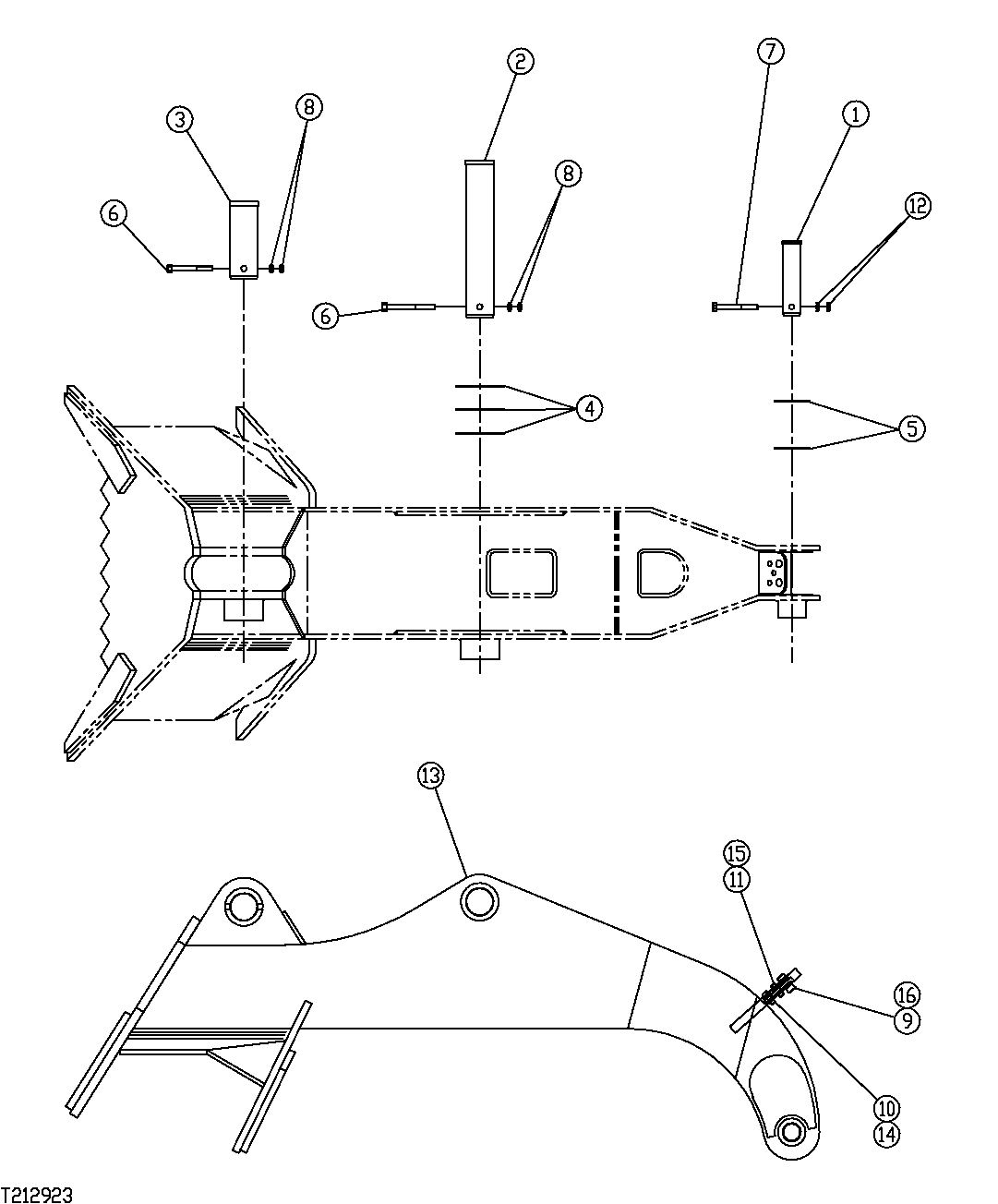

Запчасти John Deere 35C RTS 561 - HEEL RACK AND PINS 3803 GRAPPLE MECHANISM

1

FFSB107256

Pin Fastener

1шт.

FFSB107292

Pin Fastener

1шт.

2

FF105548

Pin

(SUB FOR FFSB107206)

1шт.

3

FFSB107108

Pin Fastener

1шт.

4

4144513

Washer

(SUB FOR FFSB108121)

3шт.

5

4075357

Washer

(SUB FOR FFSB108129)

2шт.

6

19M8100

Cap Screw

M20 X 180 (SUB FOR FFSB109230)

2шт.

7

19M7954

Cap Screw

M16 X 150 (SUB FOR FFSB109221)

1шт.

8

14M7277

Nut

M20 (SUB FOR FFSB109330)

4шт.

9

PMH163

Union Fitting

(SUB FOR FFSB102145)

2шт.

10

38H1321

Elbow Fitting

(ALSO ORDER T78716 AND T77 857 ) (SUB FOR FFSB102227)

2шт.

11

X6WLO-WLNL-S

Union Fitting

(SUB FOR FFSB103491)

1шт.

12

14M7276

Nut

M16 (SUB FOR FFSB108865)

2шт.

13

FFSB100070

Grapple

(HEEL RACK WELDMENT)

1шт.

14

38H1416

Fitting

(SUB FOR FFSB112991)

2шт.

15

X6FNL-S

Fitting

(SUB FOR FFSB114709)

1шт.

16

X12FNL-S

Fitting

(SUB FOR FFSB106434)

2шт.
