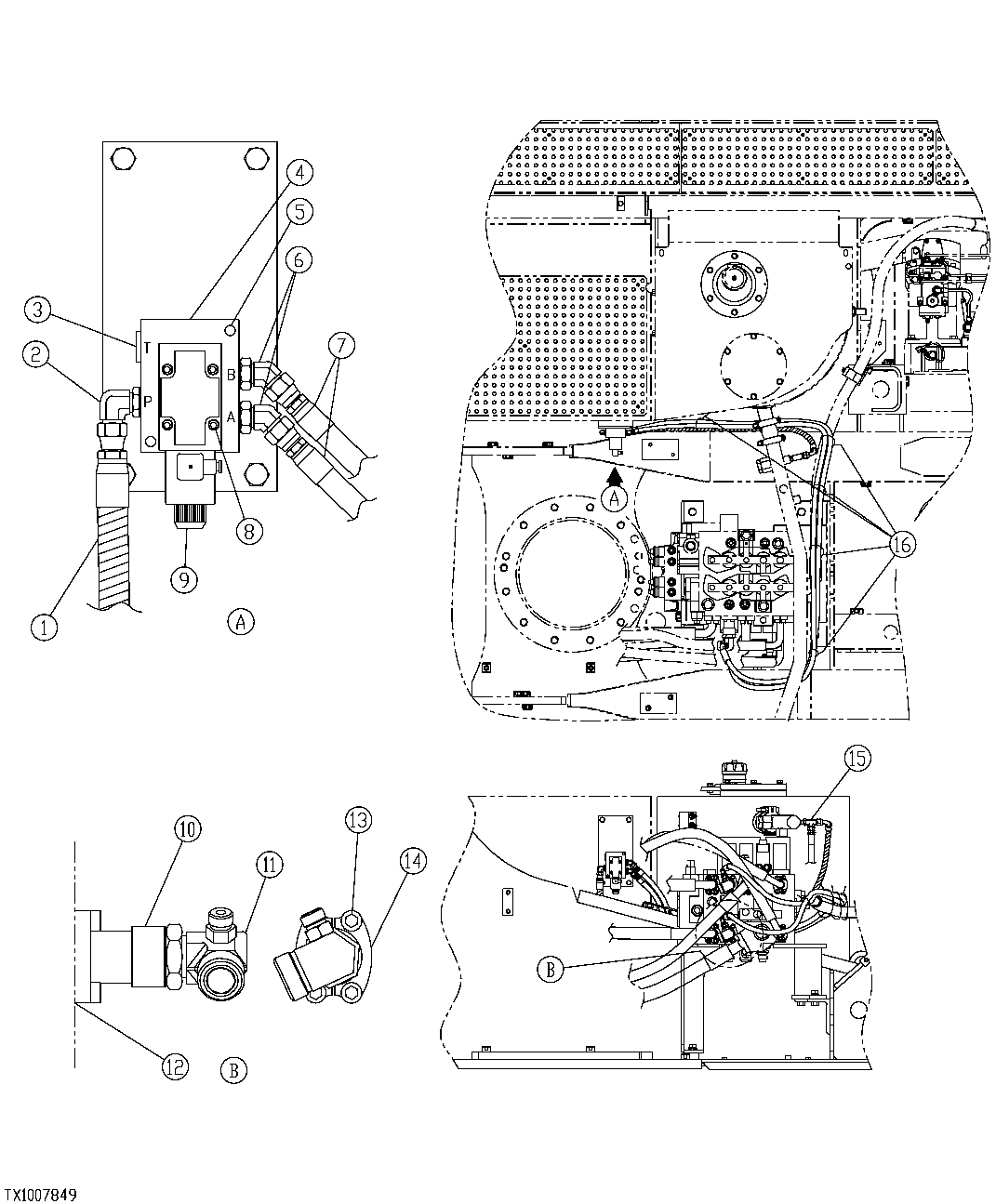

Запчасти John Deere 35C RTS 560 - VALVE IN HEAD FLOAT VALVE HOSES 3360 HYDRAULIC SYSTEM

1

FFSB110034

Hydraulic Hose

(CUT TO 1325 MM) (SUB FOR FFSB110201)

1шт.

XHG-075

Hose Guard

(CUT TO 1200 MM) (SUB FOR FFSB110201 AND FFSB110202)

1шт.

2

X8C5OX-S

Elbow Fitting

(SUB FOR FFSB106174)

1шт.

3

X8HP5ON-S

Fitting Plug

(SUB FOR FFSB105066)

1шт.

4

FFSB103785

Plate

1шт.

5

19M8713

Screw

M6 X 45 (SUB FOR FFSB110136)

2шт.

6

X6-8V5OLO-S

Elbow Fitting

(SUB FOR FFSB106597)

2шт.

7

FFSB113086

Hydraulic Hose

(CUT TO 2170 MM)

2шт.

8

19H3070

Screw

0.190" X 1-1/4" (SUB FOR FFSB102861)

4шт.

9

FFSB103786

Check Valve

1шт.

10

FFSB102168

Adapter Fitting

2шт.

11

X16C5OLO-S

Elbow Fitting

(SUB FOR FFSB113085 OR FFSB113084)

2шт.

X6F5OLO-S

Adapter Fitting

(SUB FOR FFSB113085, FFSB106529)

2шт.

12

T78313

O-Ring

(SUB FOR FFSB106430)

2шт.

13

19M7576

Screw

M10 X 30 (SUB FOR J781030)

8шт.

14

H61354

Flange Fitting

(SUB FOR FFSB110184)

4шт.

15

X8R4OMXS

Tee Fitting

(SUB FOR FFSB110192)

1шт.

16

H77698

Tie Band

(SUB FOR FFSB108110)

5шт.
