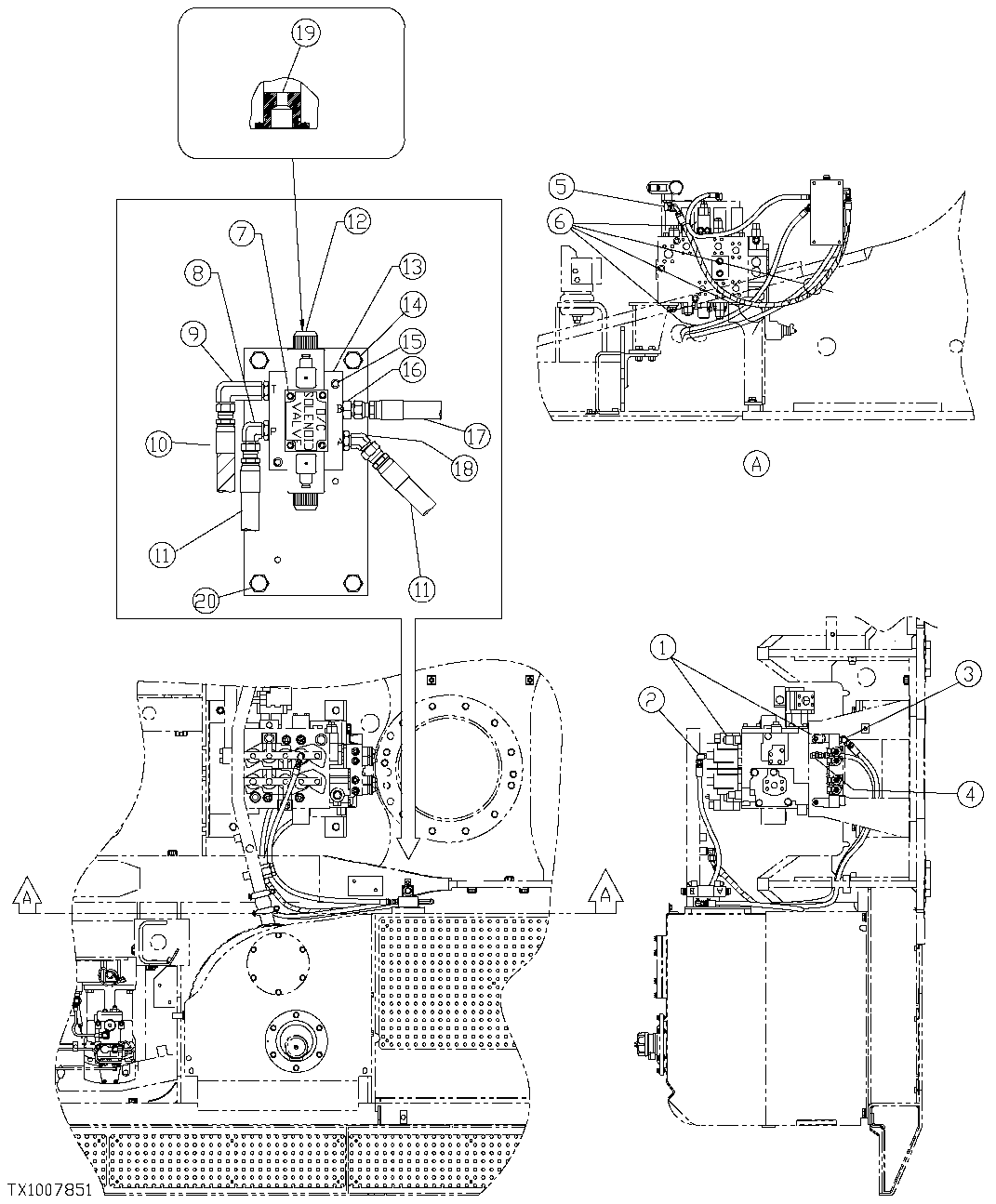

Запчасти John Deere 35C RTS 558 - SINGLE FUNCTION PILOT PLUMBING 3360 HYDRAULIC SYSTEM

1

4419373

Pressure Relief Valve

(SUB FOR FFSB105643)

2шт.

2

4208913

Adapter Fitting

(SUB FOR FFSB107487)

1шт.

3

4190244

Elbow Fitting

(SUB FOR FFSB108477)

1шт.

4

X6-6F4OMXS

Adapter Fitting

(SUB FOR FFSB105049)

1шт.

5

F010072

Elbow Fitting

(SUB FOR FFSB103643)

1шт.

6

H77698

Tie Band

(SUB FOR FFSB108110)

4шт.

7

19H3070

Screw

0.190" X 1-1/4" (SUB FOR FFSB102861)

4шт.

8

X6-8C5OX-S

Elbow Fitting

(SUB FOR FFSB104941)

1шт.

9

AH61439

Elbow Fitting

(SUB FOR FFSB109448)

1шт.

10

FFSB113065

Hydraulic Hose

(CUT TO 1270 MM) (SUB FOR FFSB113066)

1шт.

XHG-075

Hose Guard

(CUT TO 1200 MM) (SUB FOR FFSB113066 AND FFSB110202)

1шт.

11

FFSB103582

Hydraulic Hose

(CUT TO 1803 MM)

2шт.

12

FFSB102383

Solenoid Valve

1шт.

13

FFSB102547

Plate

1шт.

14

FFSB110138

Plate

1шт.

15

19M8713

Screw

M6 X 45 (SUB FOR FFSB110136)

2шт.

16

R36426

Fitting

(SUB FOR FFSB109415)

1шт.

17

FFSB113067

Hydraulic Hose

(CUT TO 1050 MM)

1шт.

18

AN113929

Elbow Fitting

(SUB FOR FFSB109811)

1шт.

19

FFSB106319

Orifice

2шт.

20

19M7407

Cap Screw

M8 X 25 (SUB FOR FFSB107195)

2шт.
