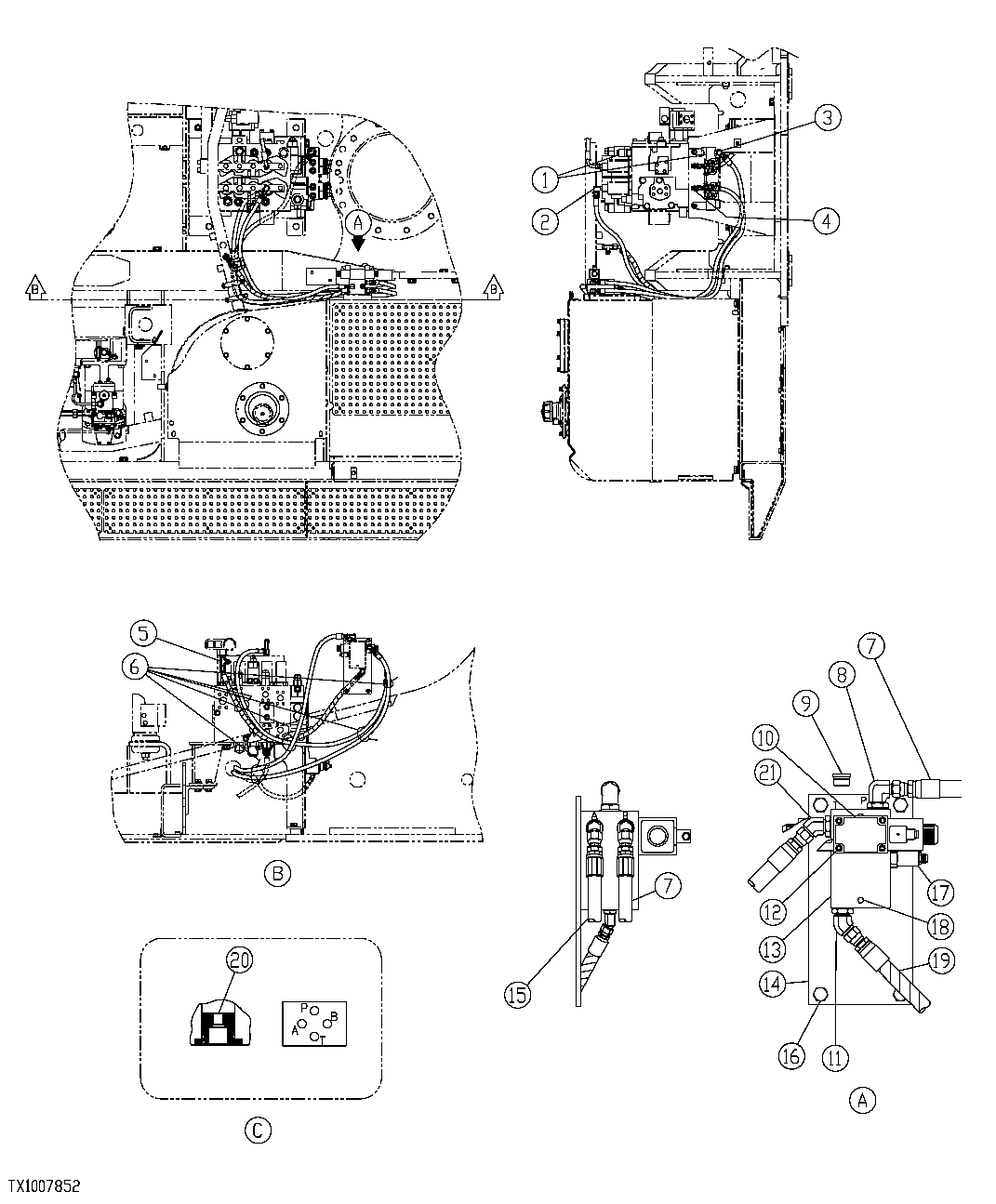

Запчасти John Deere 35C RTS 557 - HEELER AND DOUBLE FUNCTION PILOT PLUMBING 3360 HYDRAULIC SYSTEM

1

4419373

Pressure Relief Valve

(SUB FOR FFSB105643)

2шт.

2

4208913

Adapter Fitting

(SUB FOR FFSB107487)

1шт.

3

4190244

Elbow Fitting

(SUB FOR FFSB108477)

1шт.

4

X6-6F4OMXS

Adapter Fitting

(SUB FOR FFSB105049)

1шт.

5

X8R4OMXS

Tee Fitting

(SUB FOR FFSB110192)

1шт.

6

H77698

Tie Band

(SUB FOR FFSB108110)

5шт.

7

FFSB113068

Hydraulic Hose

(CUT TO 1650 MM)

2шт.

8

AT35123

Elbow Fitting

(SUB FOR FFSB104941)

1шт.

9

X8HP5ON-S

Fitting Plug

(SUB FOR FFSB105066)

1шт.

10

FFSB102383

Solenoid Valve

1шт.

11

X8V5OX-S

Elbow Fitting

(SUB FOR FFSB103646)

1шт.

12

19H3070

Screw

0.190" X 1-1/4" (SUB FOR FFSB102861)

4шт.

13

FFSB102385

Plate

1шт.

14

FFSB110138

Plate

1шт.

15

FFSB103582

Hydraulic Hose

(CUT TO 1803 MM)

1шт.

16

19M7407

Cap Screw

M8 X 25 (SUB FOR FFSB107195)

4шт.

17

FFSB102386

Pressure Relief Valve

1шт.

18

19M8405

Screw

M8 X 70 (SUB FOR FFSB110199)

2шт.

19

FFSB111362

Hydraulic Hose

(CUT TO 1160 MM) (SUB FOR FFSB113069)

1шт.

XHG-075

Hose Guard

(CUT TO 1100 MM) (SUB FOR FFSB113069 AND FFSB112998)

1шт.

20

FFSB106319

Orifice

2шт.

21

R36426

Fitting

(SUB FOR FFSB109415)

2шт.
