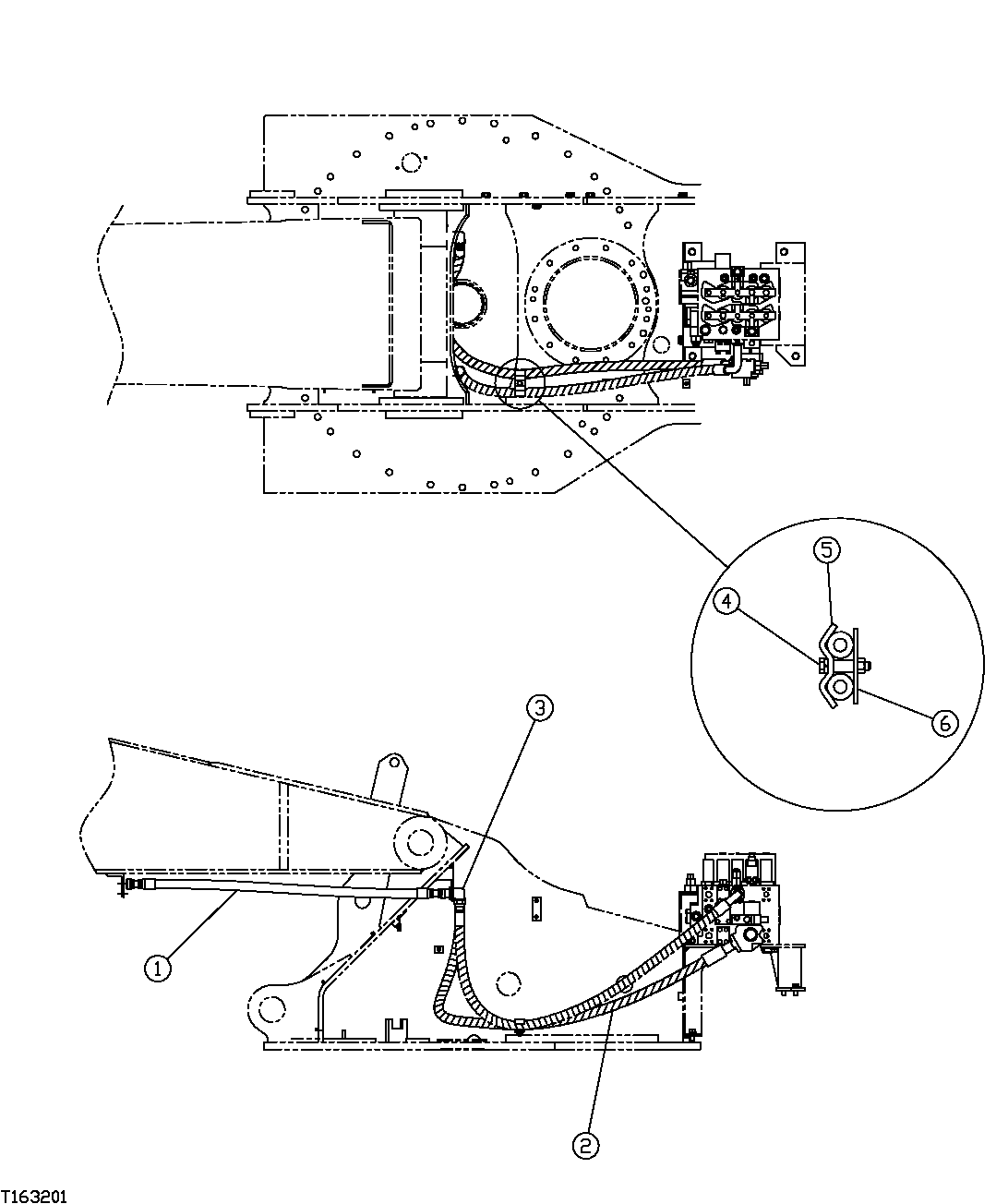

Запчасти John Deere 35C RTS 553 - LOG LOADER ARM CYLINDER LINE HOSES TO CONTROL VALVE 3360 HYDRAULIC SYSTEM

1

FFSB102166

Hydraulic Hose

(CTL) 1600MM (36.89")

2шт.

2

FFSB113003

Hydraulic Hose

(SUB FOR FFSB113016)

1шт.

Cover

(SUB FOR FFSB113016 ) (ORDER XHG-150)( CTL) 2500MM (98.43") ( FFSB113017 NLA)

1шт.

3

38H1456

Elbow Fitting

(SUB FOR FFSB102228)

2шт.

T78715

Nut

(SUB FOR FFSB102228)

2шт.

T76938

O-Ring

(SUB FOR FFSB102228)

4шт.

4

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB106424)

1шт.

12H301

Lock Washer

1/2" (SUB FOR FFSB106424)

1шт.

5

4202103

Clamp

(SUB FOR FFSB106422)

1шт.

6

9736782

Clamp

(SUB FOR FFSB106423)

1шт.
