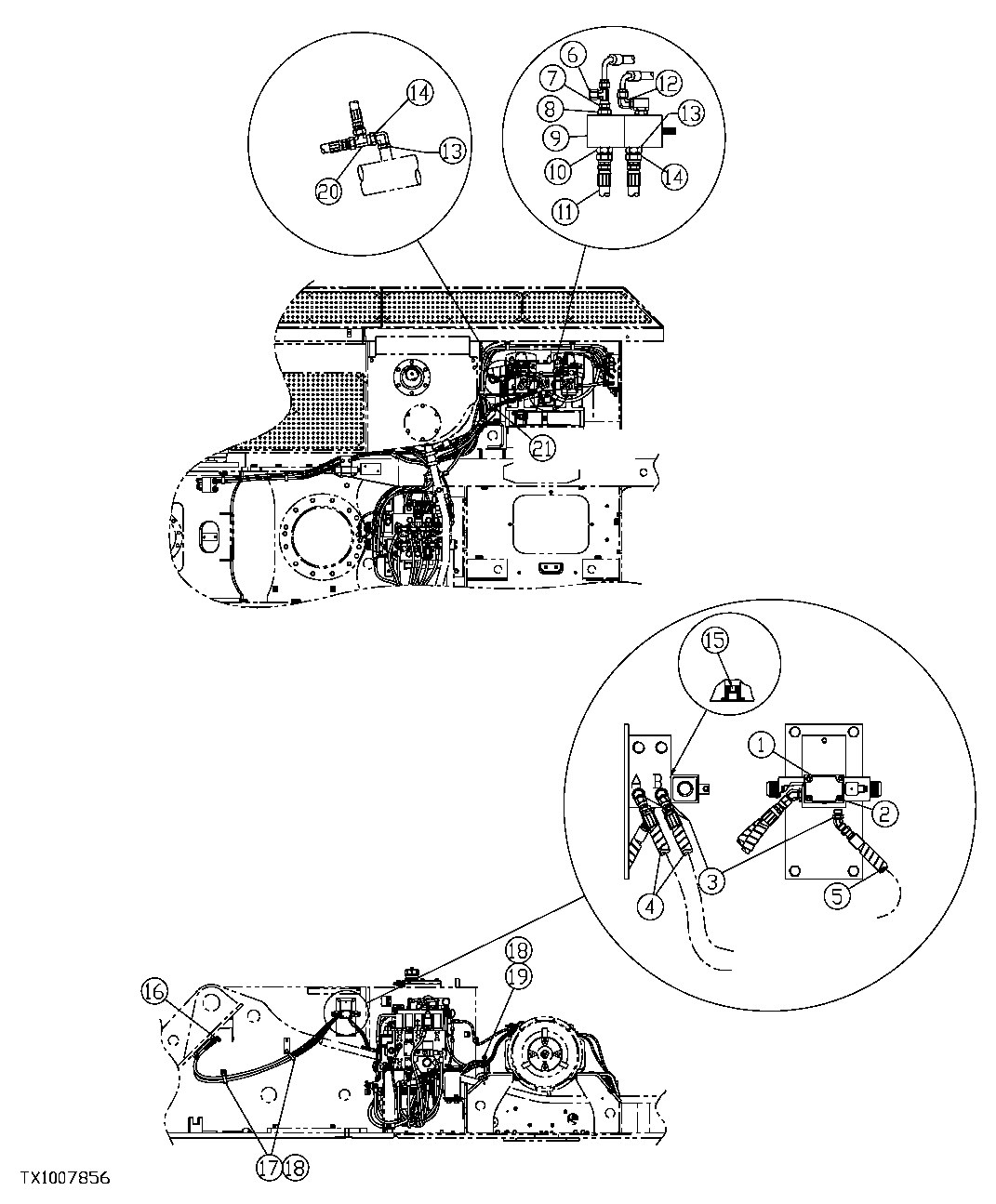

Запчасти John Deere 35C RTS 550 - DOUBLE FUNCTION GRAPPLE ROTATE PLUMBING 3360 HYDRAULIC SYSTEM

1

FFSB102384

Solenoid Hydraulic Valve

1шт.

2

19H3070

Screw

0.190" X 1-1/4" ( FFSB102861 NLA)

4шт.

3

X8V5OLO-S

Elbow Fitting

(SUB FOR FFSB103644)

3шт.

4

FFSB112987

Hydraulic Hose

(SUB FOR FFSB112986)(CTL) 1350MM (53.15")

2шт.

XHG-075

Hose Guard

(SUB FOR FFSB112986)(CTL) 400MM (15.75")

2шт.

5

FFSB112989

Hydraulic Hose

(SUB FOR FFSB112988)(CTL) 1600MM (63")

1шт.

XHG-075

Hose Guard

(SUB FOR FFSB112988)(CTL) 1600MM (63")

1шт.

6

38H1416

Fitting

(SUB FOR FFSB112991)

1шт.

7

38H1031

Tee Fitting

(SUB FOR FFSB109456)

1шт.

8

Adapter Fitting

( FFSB102389 NLA)

1шт.

9

4227787

Pump

(SUB FOR FFSB109718)

1шт.

10

A853166

Adapter Fitting

(SUB FOR FFSB109423 OR 4189619)

1шт.

11

FFSB102245

Hydraulic Hose

(CTL) 711MM (28")

1шт.

12

F010072

Elbow Fitting

(SUB FOR FFSB103643)

1шт.

13

TH100055

O-Ring

(SUB FOR FFSB109682)

2шт.

14

T77858

O-Ring

(SUB FOR FFSB109689)

2шт.

15

FFSB104023

Orifice

2шт.

16

PMH285

Elbow Fitting

(SUB FOR FFSB104061)

2шт.

17

F010967

Hose Support

(SUB FOR FFSB104269)

2шт.

18

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107461)

3шт.

24M7296

Washer

10.500 X 30 X 2.500 mm (SUB FOR FFSB107461)

3шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107461)

3шт.

19

XCL-17

Hose Clamp

(SUB FOR FFSB105439)( FFSB11013 7 NOT USED ON THIS APPLICATION)

1шт.

20

38H1033

Tee Fitting

(SUB FOR FFSB109457)

1шт.

21

H77698

Tie Band

(SUB FOR FFSB108110)

1шт.
