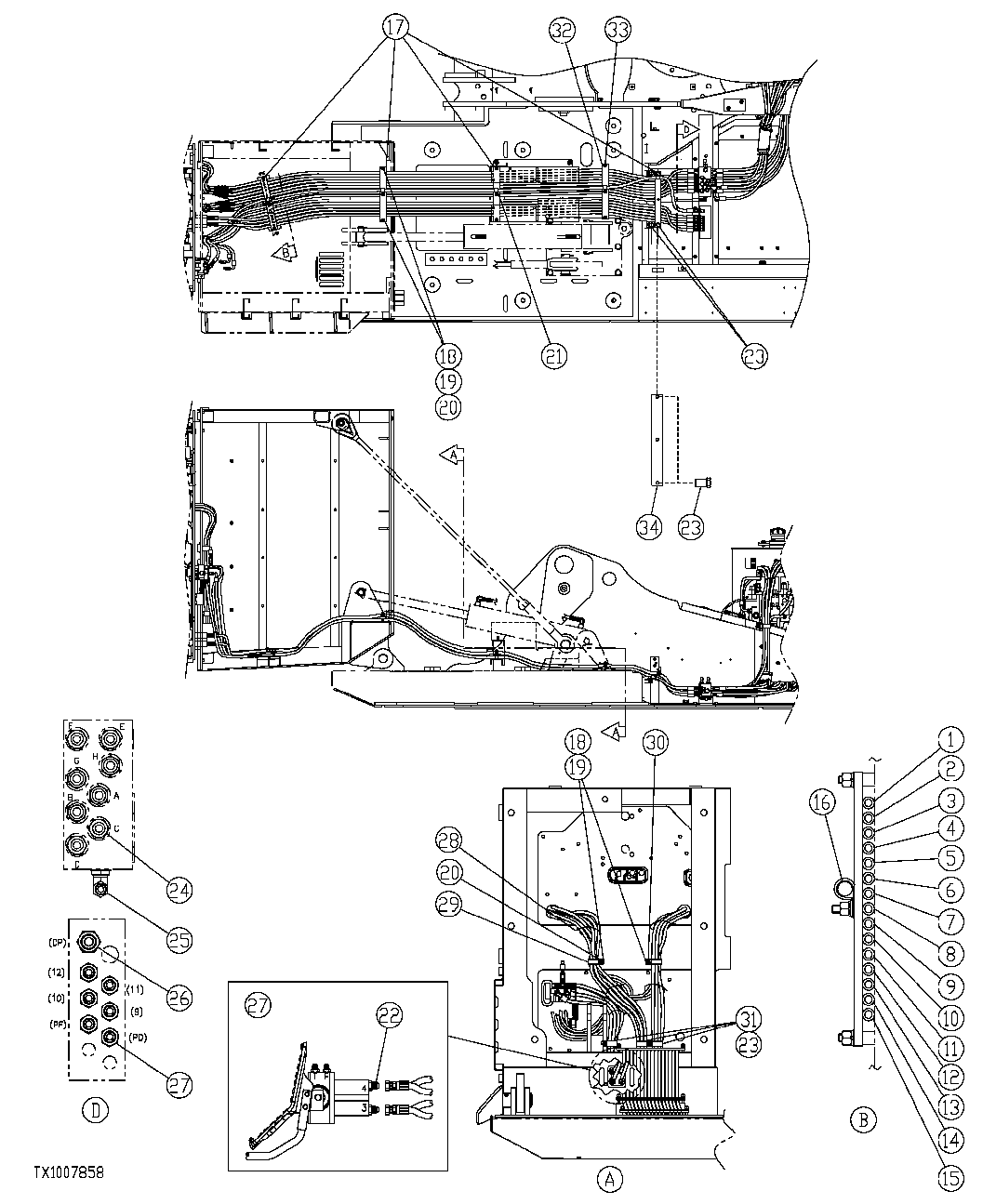

Запчасти John Deere 35C RTS 548 - SIDE ENTRY CAB PILOT PLUMBING WITH 48" RISER 3360 HYDRAULIC SYSTEM

1

FFSB112875

Hydraulic Hose

1шт.

2

FFSB112876

Hydraulic Hose

1шт.

3

FFSB112877

Hydraulic Hose

1шт.

4

FFSB112878

Hydraulic Hose

1шт.

5

FFSB112893

Hydraulic Hose

1шт.

6

FFSB112894

Hydraulic Hose

1шт.

7

FFSB112895

Hydraulic Hose

1шт.

8

FFSB112896

Hydraulic Hose

1шт.

9

FFSB112897

Hydraulic Hose

1шт.

10

FFSB112898

Hydraulic Hose

1шт.

11

FFSB112899

Hydraulic Hose

1шт.

12

FFSB112900

Hydraulic Hose

1шт.

13

FFSB112901

Hydraulic Hose

1шт.

14

FFSB112902

Hydraulic Hose

1шт.

15

FFSB112903

Hydraulic Hose

1шт.

16

FFSB112904

Hydraulic Hose

1шт.

17

FFSB110347

Clamp

4шт.

18

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

8шт.

19

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

8шт.

20

14M7274

Nut

M10 (SUB FOR FFSB107411)

7шт.

21

F053301

Holder

( FFSB102835 NLA)

5шт.

22

4200467

Adapter Fitting

(SUB FOR FFSB109412)

4шт.

23

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107461)

6шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107461)

6шт.

24M7296

Washer

10.500 X 30 X 2.500 mm (SUB FOR FFSB107461)

6шт.

24

4219324

Adapter Fitting

(SUB FOR FFSB105049)

8шт.

25

X6C4OMXS

Elbow Fitting

(SUB FOR FFSB106596)

1шт.

26

R52831

Fitting

(SUB FOR FFSB109400)

1шт.

27

R27238

Fitting

(SUB FOR FFSB104364)

6шт.

28

H77698

Tie Band

(SUB FOR FFSB108110)

5шт.

29

FFSB110137

Clamp

2шт.

30

FFSB107369

Nut

1шт.

31

F010967

Hose Support

(SUB FOR FFSB104269)

3шт.

32

FFSB112976

Clamp

1шт.

33

19M7935

Cap Screw

M10 X 55 (SUB FOR FFSB107954)

2шт.

34

8077444

Bracket

(SUB FOR FFSB113543)

1шт.
