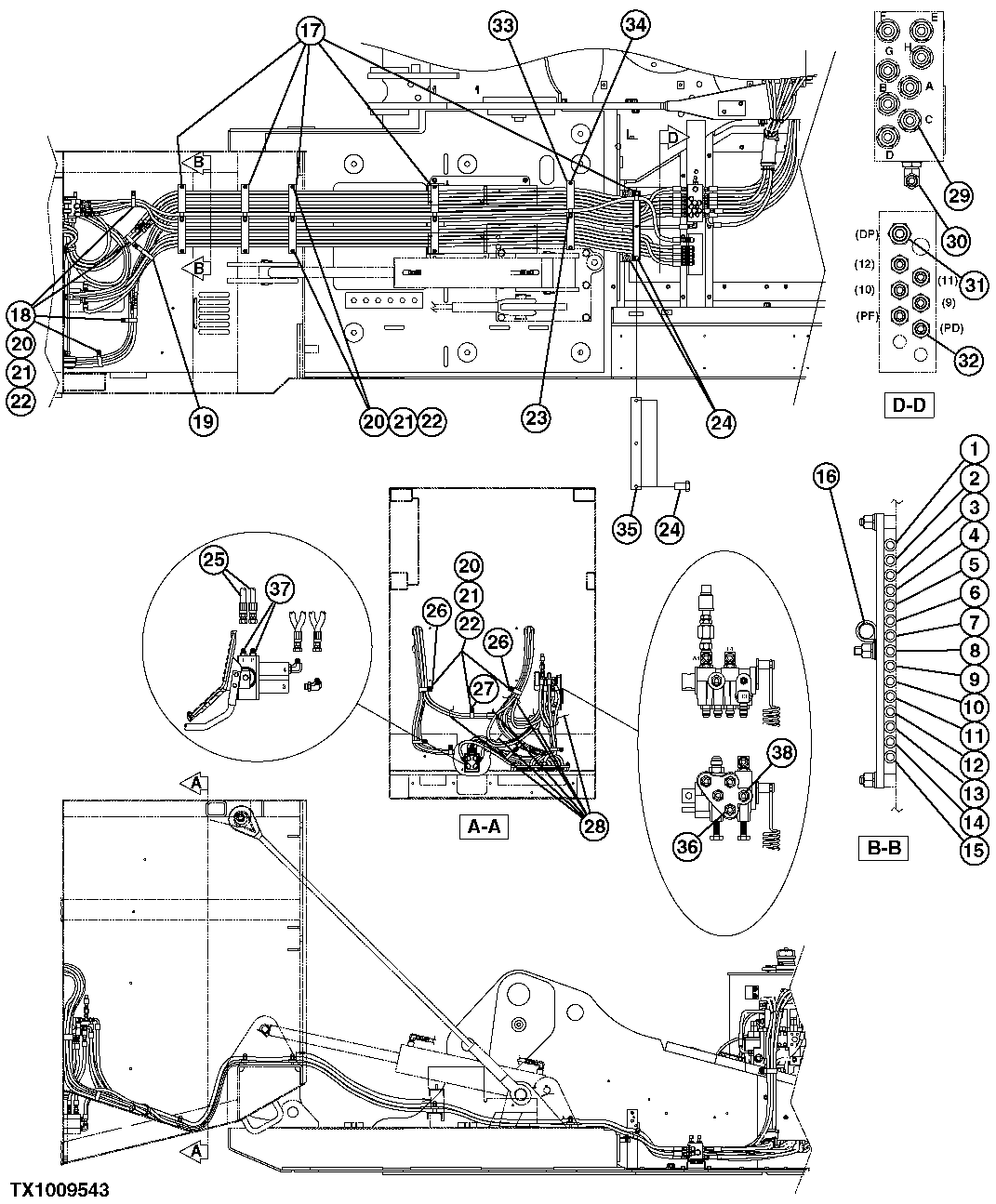

Запчасти John Deere 35C RTS 547 - REAR ENTRY CAB PILOT PLUMBING WITH 48" RISER 3360 HYDRAULIC SYSTEM

1

FFSB112875

Hydraulic Hose

1шт.

2

FFSB112876

Hydraulic Hose

1шт.

3

FFSB112877

Hydraulic Hose

1шт.

4

FFSB112878

Hydraulic Hose

1шт.

5

FFSB112879

Hydraulic Hose

1шт.

6

FFSB112880

Hydraulic Hose

1шт.

7

FFSB112881

Hydraulic Hose

1шт.

8

FFSB112882

Hydraulic Hose

1шт.

9

FFSB112883

Hydraulic Hose

1шт.

10

FFSB112884

Hydraulic Hose

1шт.

11

FFSB112885

Hydraulic Hose

1шт.

12

FFSB112886

Hydraulic Hose

1шт.

13

FFSB112887

Hydraulic Hose

1шт.

14

FFSB112888

Hydraulic Hose

1шт.

15

FFSB112889

Hydraulic Hose

1шт.

16

FFSB112890

Hydraulic Hose

1шт.

17

FFSB110347

Clamp

5шт.

18

F010967

Hose Support

(SUB FOR FFSB104269)

4шт.

19

F026126

Hose Support

(SUB FOR FFSB105404)

1шт.

20

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

15шт.

21

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

15шт.

22

14M7274

Nut

M10 (SUB FOR FFSB107411)

15шт.

23

F053301

Holder

(SUB FOR FFSB102835)

6шт.

24

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107461)

4шт.

24M7296

Washer

10.500 X 30 X 2.500 mm (SUB FOR FFSB107461)

4шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107461)

4шт.

25

FFSB105047

Hydraulic Hose

(CTL) 1154MM (45.43")

2шт.

26

FFSB110137

Clamp

2шт.

27

XCL-17

Hose Clamp

(SUB FOR FFSB105439)

1шт.

28

H77698

Tie Band

(SUB FOR FFSB108110)

6шт.

29

4219324

Adapter Fitting

(SUB FOR FFSB105049)

8шт.

30

X6C4OMXS

Elbow Fitting

(SUB FOR FFSB106596)

1шт.

31

R52831

Fitting

(SUB FOR FFSB109400)

1шт.

32

R27238

Fitting

(SUB FOR FFSB104364)

6шт.

33

FFSB112976

Clamp

1шт.

34

19M7935

Cap Screw

M10 X 55 (SUB FOR FFSB107954)

2шт.

35

8077444

Bracket

1шт.

36

4261938

Fitting

1шт.

37

4200467

Adapter Fitting

2шт.

38

4219324

Adapter Fitting

1шт.
