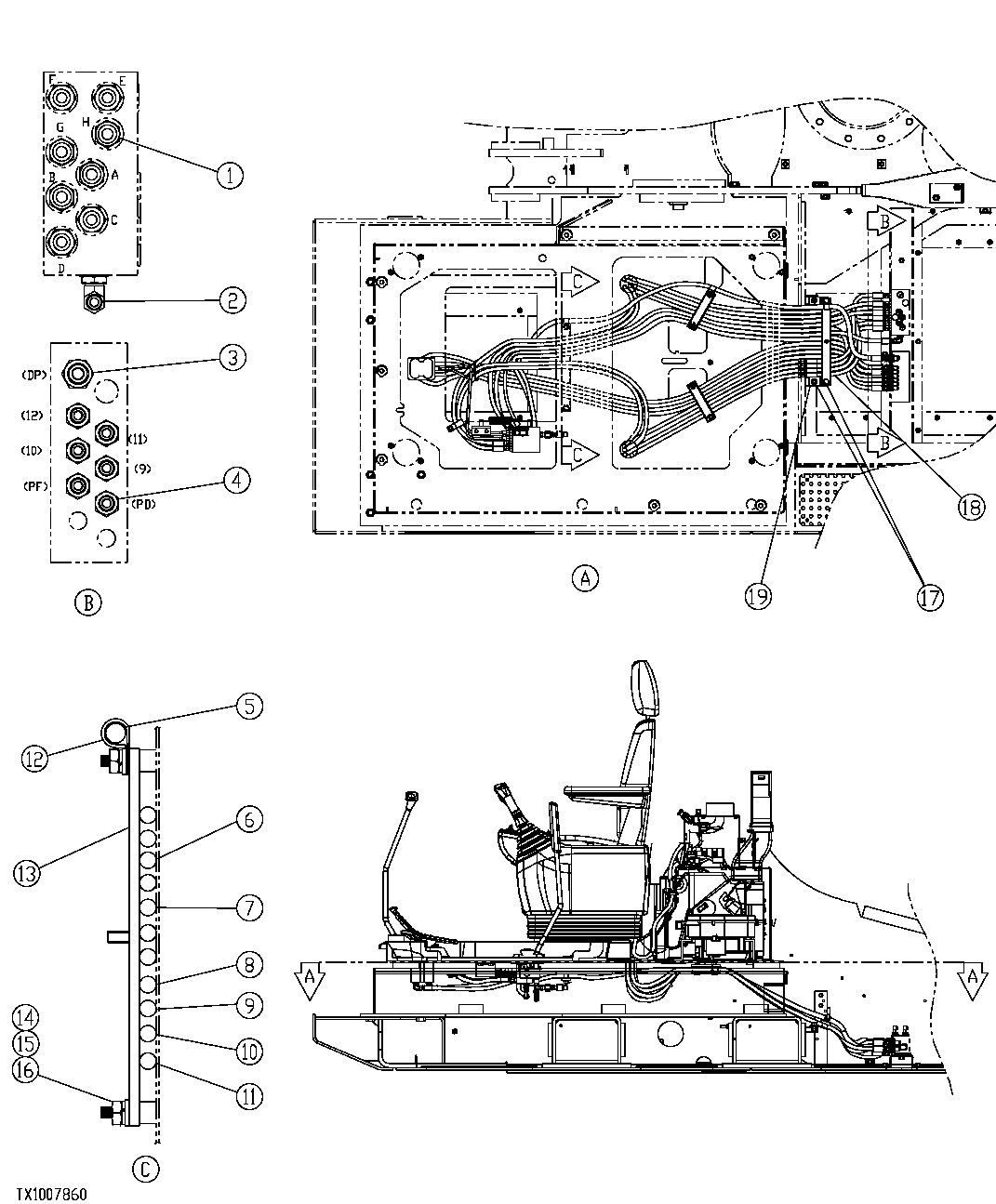

Запчасти John Deere 35C RTS 546 - SIDE ENTRY CAB PILOT PLUMBING WITH 7" CAB RISER 3360 HYDRAULIC SYSTEM

1

4219324

Adapter Fitting

(SUB FOR FFSB105049)

8шт.

2

X6C4OMXS

Elbow Fitting

(SUB FOR FFSB106596)

1шт.

3

R52831

Fitting

(SUB FOR FFSB109400)

1шт.

4

R27238

Fitting

(SUB FOR FFSB104364)

6шт.

5

FFSB112948

Hydraulic Hose

1шт.

6

FFSB112947

Hydraulic Hose

1шт.

7

FFSB112946

Hydraulic Hose

1шт.

8

FFSB112945

Hydraulic Hose

1шт.

9

FFSB112944

Hydraulic Hose

1шт.

10

FFSB112943

Hydraulic Hose

1шт.

11

FFSB112942

Hydraulic Hose

1шт.

12

F053301

Holder

( FFSB102835 NLA)

3шт.

13

FFSB110347

Clamp

2шт.

14

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

2шт.

15

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

2шт.

16

14M7274

Nut

M10 (SUB FOR FFSB107411)

2шт.

17

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107461)

4шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107461)

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107461)

4шт.

18

FFSB102262

Hydraulic Hose

4шт.

19

8077444

Bracket

(SUB FOR FFSB113543)

1шт.
