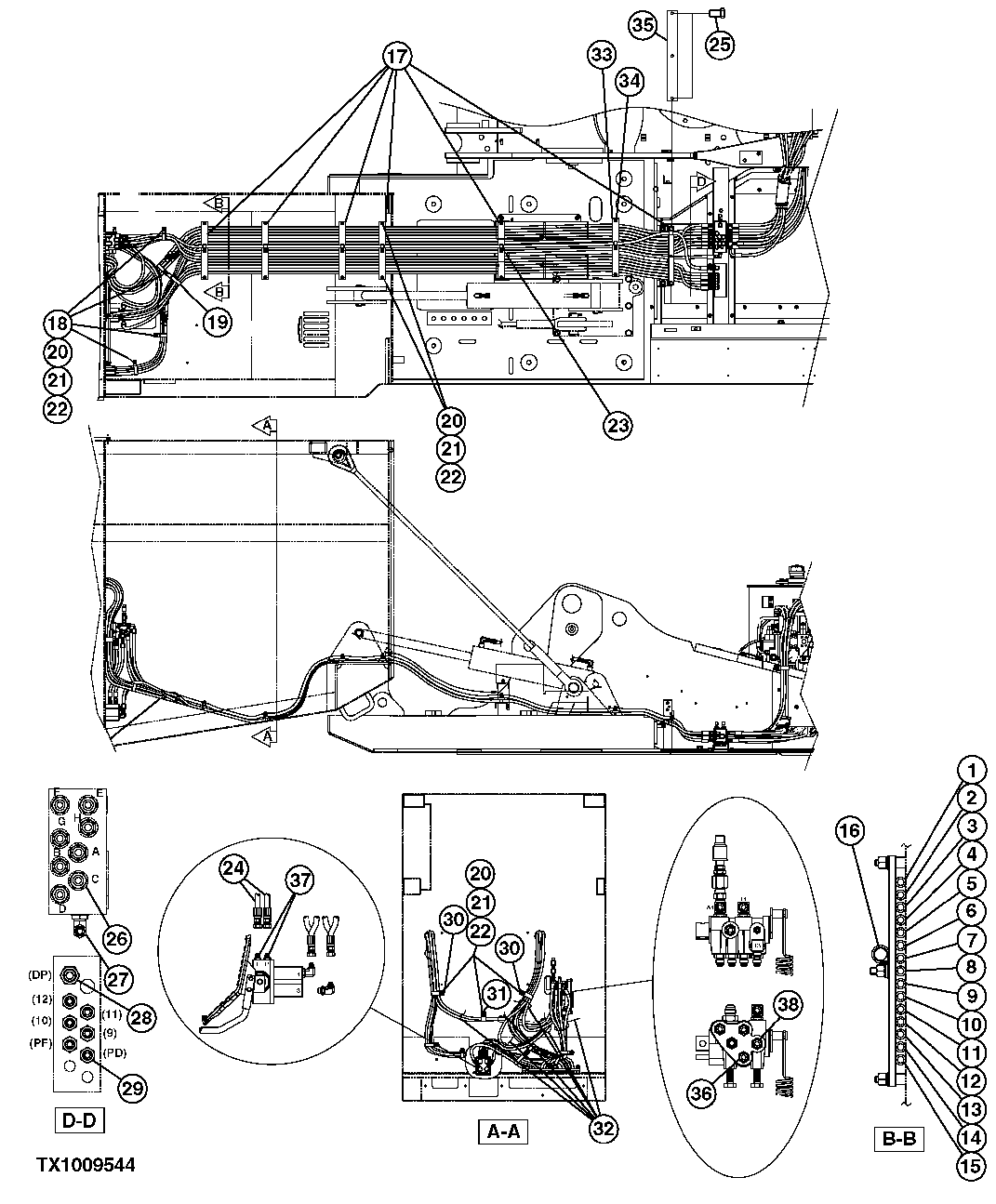

Запчасти John Deere 35C RTS 545 - REAR ENTRY CAB PILOT PLUMBING WITH 72 INCH RISER 3360 HYDRAULIC SYSTEM

1

FFSB112909

Hydraulic Hose

1шт.

2

FFSB112910

Hydraulic Hose

1шт.

3

FFSB112911

Hydraulic Hose

1шт.

4

FFSB112912

Hydraulic Hose

1шт.

5

FFSB112913

Hydraulic Hose

1шт.

6

FFSB112914

Hydraulic Hose

1шт.

7

FFSB112915

Hydraulic Hose

1шт.

8

FFSB112916

Hydraulic Hose

1шт.

9

FFSB112917

Hydraulic Hose

1шт.

10

FFSB112918

Hydraulic Hose

1шт.

11

FFSB112919

Hydraulic Hose

1шт.

12

FFSB112920

Hydraulic Hose

1шт.

13

FFSB112921

Hydraulic Hose

1шт.

14

FFSB112922

Hydraulic Hose

1шт.

15

FFSB112923

Hydraulic Hose

1шт.

16

FFSB112924

Hydraulic Hose

1шт.

17

FFSB110347

Clamp

6шт.

18

F010967

Hose Support

(SUB FOR FFSB104269)

4шт.

19

F026126

Hose Support

(SUB FOR FFSB105404)

1шт.

20

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

17шт.

21

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

17шт.

22

14M7274

Nut

M10 (SUB FOR FFSB107411)

17шт.

23

F053301

Holder

( FFSB102835 NLA)

7шт.

24

FFSB105047

Hydraulic Hose

(CTL) 1154MM (45.43")

2шт.

25

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107461)

4шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107461)

4шт.

24M7296

Washer

10.500 X 30 X 2.500 mm (SUB FOR FFSB107461)

4шт.

26

X6-6F4OMXS

Adapter Fitting

(SUB FOR FFSB105049)

8шт.

27

X6C4OMXS

Elbow Fitting

(SUB FOR FFSB106596)

1шт.

28

R52831

Fitting

(SUB FOR FFSB109400)

1шт.

29

R27238

Fitting

(SUB FOR FFSB104364)

6шт.

30

FFSB110137

Clamp

2шт.

31

XCL-17

Hose Clamp

(SUB FOR FFSB105439)

1шт.

32

H77698

Tie Band

(SUB FOR FFSB108110)

6шт.

33

FFSB112976

Clamp

1шт.

34

19M7935

Cap Screw

M10 X 55 (SUB FOR FFSB107954)

2шт.

35

8077444

Bracket

(SUB FOR FFSB113543)

1шт.

36

4261938

Fitting

1шт.

37

4200467

Adapter Fitting

2шт.

38

4219324

Adapter Fitting

1шт.
