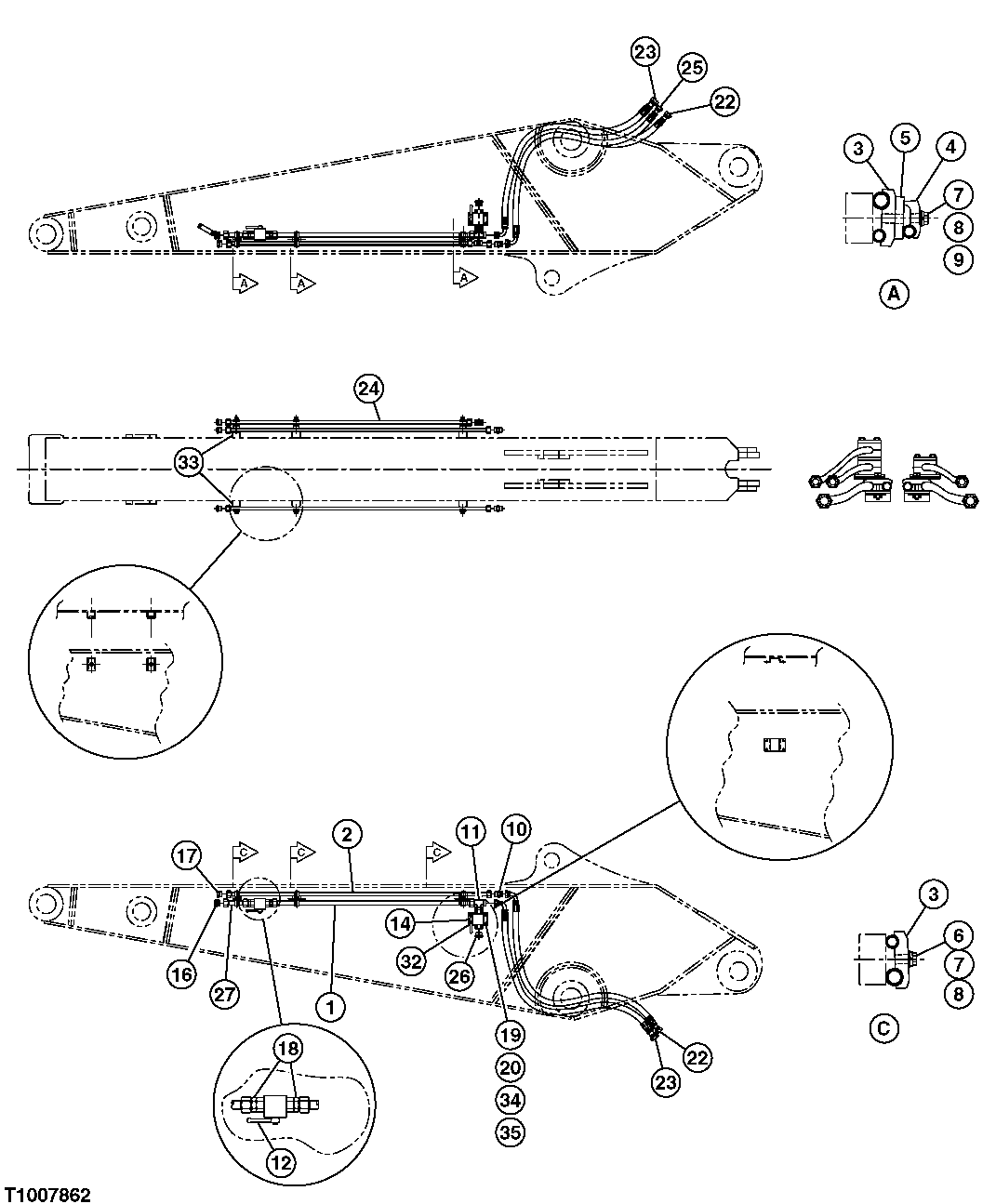

Запчасти John Deere 35C RTS 543 - EXCAVATOR ARM PLUMBING FOR DOUBLE FUNCTION FRONT 3360 HYDRAULIC SYSTEM

1

FFSB103826

Oil Line

2шт.

2

FFSB103827

Oil Line

2шт.

3

4141806

Clamp

(SUB FOR FFSB109515)

6шт.

4

4190124

Clamp

(SUB FOR FFSB108710)

3шт.

5

FFSB104581

Spacer

3шт.

6

19M7388

Cap Screw

M12 X 55 (SUB FOR FFSB108226)

2шт.

7

24M7038

Washer

13.500 X 24 X 2.500 mm (SUB FOR FFSB108102)

6шт.

8

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)

6шт.

9

19M7943

Cap Screw

M12 X 90 (SUB FOR FFSB109218)

2шт.

10

38H1272

Union Fitting

(SUB FOR FFSB102148)

3шт.

T77852

Rod

(SUB FOR FFSB102148)

6шт.

11

38H1020

Tee Fitting

(SUB FOR FFSB103880)

2шт.

R29936

O-Ring

(SUB FOR FFSB103880)

2шт.

T76938

O-Ring

(SUB FOR FFSB103880)

4шт.

12

FFSB103835

Ball Cock Valve

(W/O MOUNTING PLATE)

2шт.

14

FFSB103834

Ball Cock Valve

(W/ MOUNTING PLATE)

2шт.

16

38H1150

Fitting Plug

(SUB FOR FFSB104579)

2шт.

T76938

O-Ring

(SUB FOR FFSB104579)

2шт.

17

38H1149

Fitting Plug

(SUB FOR FFSB104580)

3шт.

T77858

O-Ring

(SUB FOR FFSB104580)

6шт.

18

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

4шт.

19

19M7881

Screw

M8 X 20 (SUB FOR FFSB109904)

8шт.

20

12M7065

Lock Washer

8 mm (SUB FOR FFSB103370)

8шт.

22

FFSB104778

Hydraulic Hose

(CTL) 1415MM (55.7")

2шт.

23

FFSB104777

Hydraulic Hose

(CTL) 1350MM (53.15")

2шт.

24

FFSB104687

Oil Line

1шт.

25

FFSB104779

Hydraulic Hose

(CTL) 1510MM (59.44")

1шт.

26

X16P5ON-S

Fitting Plug

(SUB FOR FFSB105069)

2шт.

27

FFSB103828

Line

2шт.

32

FFSB110834

Bracket

2шт.

33

9753840

Bracket

(SUB FOR FFSB114725)

2шт.

34

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR FFSB107966)

8шт.

35

14M7273

Nut

M8 (SUB FOR FFSB108151)

8шт.
