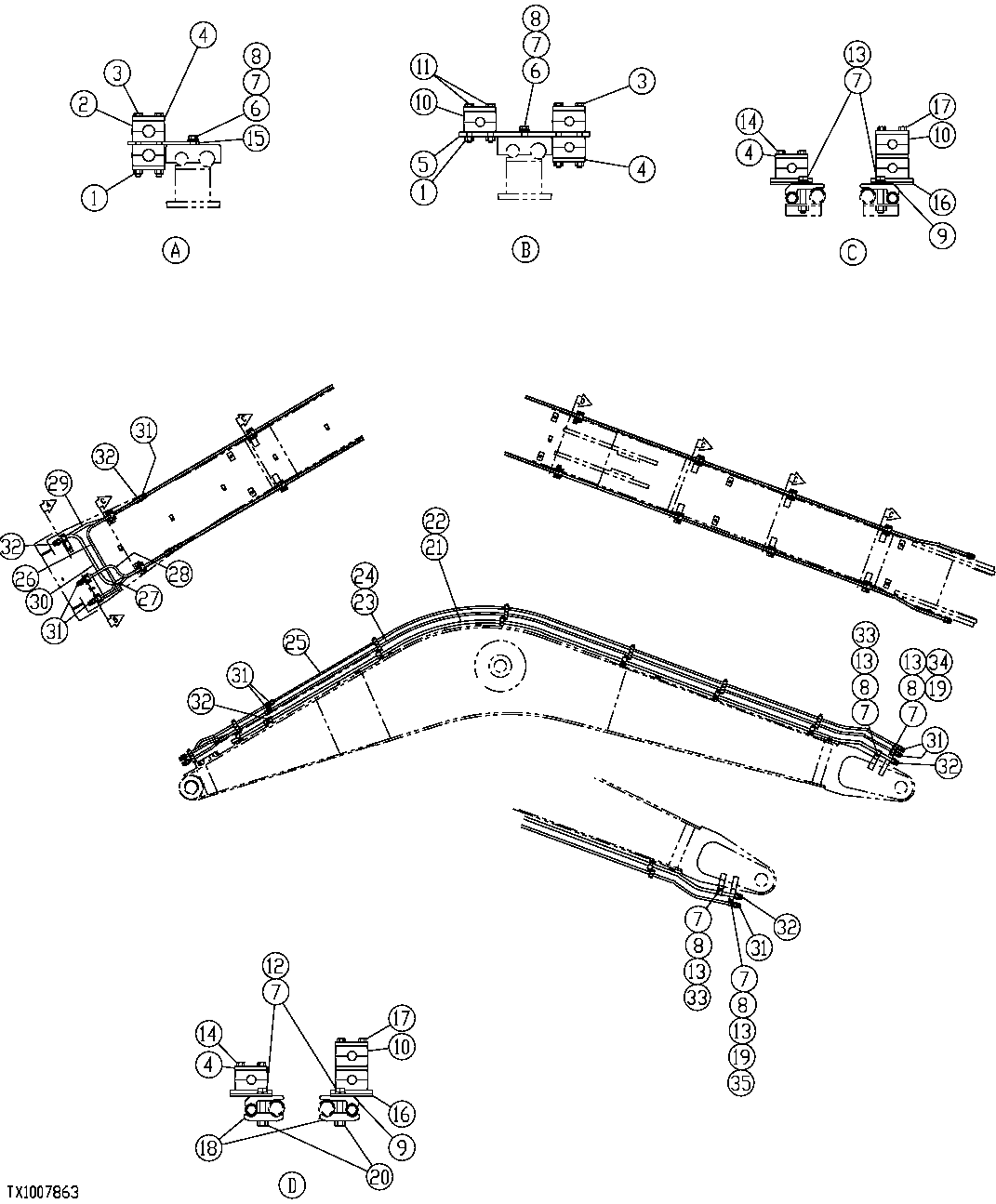

Запчасти John Deere 35C RTS 542 - EXCAVATOR BOOM OIL LINES FOR DOUBLE FUNCTION FRONT 3360 HYDRAULIC SYSTEM

1

14M7167

Lock Nut

M10 (FFSB110984 NLA)

6шт.

2

FFSB100112

Half Clamp

4шт.

3

19M7638

Cap Screw

M10 X 130 (FFSB110277 NLA)

4шт.

4

FFSB100114

Reinforcement

23шт.

5

FFSB112160

Plate

2шт.

6

19M7943

Cap Screw

M12 X 90 (SUB FOR FFSB109218)

2шт.

7

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)

19шт.

8

24M7038

Washer

13.500 X 24 X 2.500 mm (SUB FOR FFSB108102)

6шт.

9

FFSB102580

Clamp

6шт.

10

FFSB100113

Half Clamp

42шт.

11

FFSB108412

Bolt

2шт.

12

19M8088

Cap Screw

M12 X 75 (SUB FOR FFSB109217)

2шт.

13

19M7753

Cap Screw

M12 X 70 (SUB FOR FFSB109216)

15шт.

14

19M8499

Cap Screw

M10 X 60 (SUB FOR FFSB109895)

12шт.

15

FFSB102579

Clamp

1шт.

16

FFSB110837

Bracket

12шт.

17

19M7346

Cap Screw

M10 X 110 (SUB FOR FFSB109896)

12шт.

18

FFSB105147

Clamp

2шт.

19

4190124

Clamp

(SUB FOR FFSB108710)

3шт.

20

14M7275

Nut

M12 (SUB FOR FFSB107245)

2шт.

21

FFSB103534

Oil Line

LH

1шт.

22

FFSB103533

Oil Line

RH

1шт.

23

FFSB103532

Oil Line

1шт.

24

FFSB103531

Oil Line

1шт.

25

FFSB104639

Oil Line

1шт.

26

FFSB103529

Oil Line

1шт.

27

FFSB103530

Oil Line

1шт.

28

FFSB112843

Structural Tube

1шт.

29

FFSB103528

Oil Line

LH

1шт.

30

FFSB103527

Oil Line

RH

1шт.

31

38H1272

Union Fitting

(SUB FOR FFSB102148)

9шт.

T77858

O-Ring

(SUB FOR FFSB102148)

18шт.

32

38H1281

Union Fitting

(SUB FOR FFSB102147)

6шт.

T76938

O-Ring

(SUB FOR FFSB102147)

12шт.

33

4190126

Clamp

(SUB FOR FFSB108708)

2шт.

34

FFSB104739

Bracket

1шт.

35

FFSB103536

Bracket

1шт.
