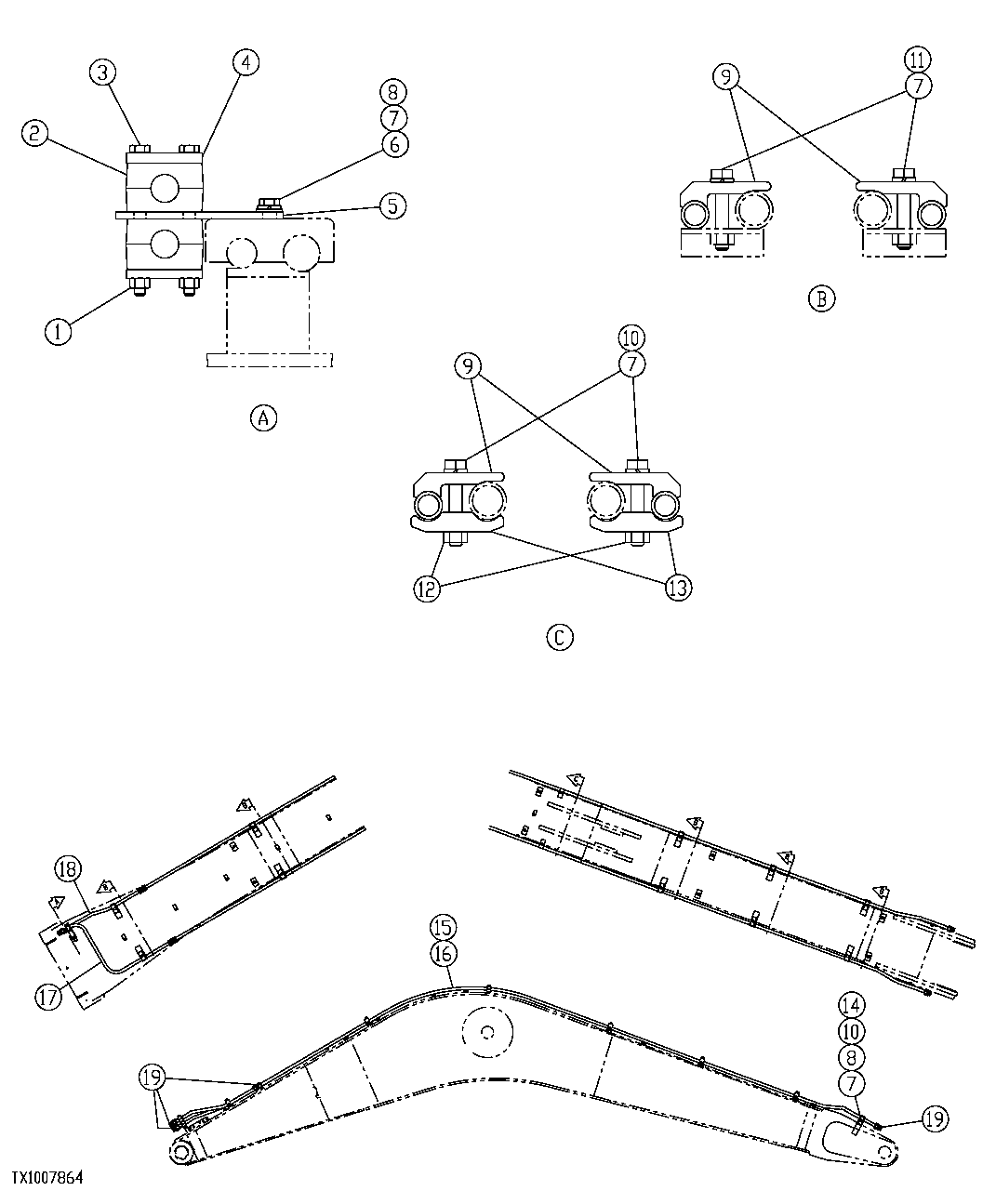

Запчасти John Deere 35C RTS 541 - EXCAVATOR BOOM OIL LINES FOR SINGLE FUNCTION FRONT 3360 HYDRAULIC SYSTEM

1

14M7167

Lock Nut

M10 (FFSB110984 NLA)

2шт.

2

FFSB100112

Half Clamp

4шт.

3

19M7638

Cap Screw

M10 X 130 (FFSB110277 NLA)

2шт.

4

FFSB100114

Reinforcement

2шт.

5

FFSB102579

Clamp

1шт.

6

19M7943

Cap Screw

M12 X 90 (SUB FOR FFSB109218)

1шт.

7

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)

15шт.

8

24M7038

Washer

13.500 X 24 X 2.500 mm (SUB FOR FFSB108102)

3шт.

9

FFSB102580

Clamp

12шт.

10

19M7753

Cap Screw

M12 X 70 (SUB FOR FFSB109216)

4шт.

11

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB107244)

10шт.

12

14M7275

Nut

M12 (SUB FOR FFSB107245)

2шт.

13

FFSB105147

Clamp

2шт.

14

4190126

Clamp

(SUB FOR FFSB108708)

2шт.

15

FFSB103533

Oil Line

RH

1шт.

16

FFSB103534

Oil Line

LH

1шт.

17

FFSB103527

Oil Line

RH

1шт.

18

FFSB103528

Oil Line

LH

1шт.

19

38H1281

Union Fitting

(SUB FOR FFSB102147)

6шт.

T76938

O-Ring

(SUB FOR FFSB102147)

12шт.
