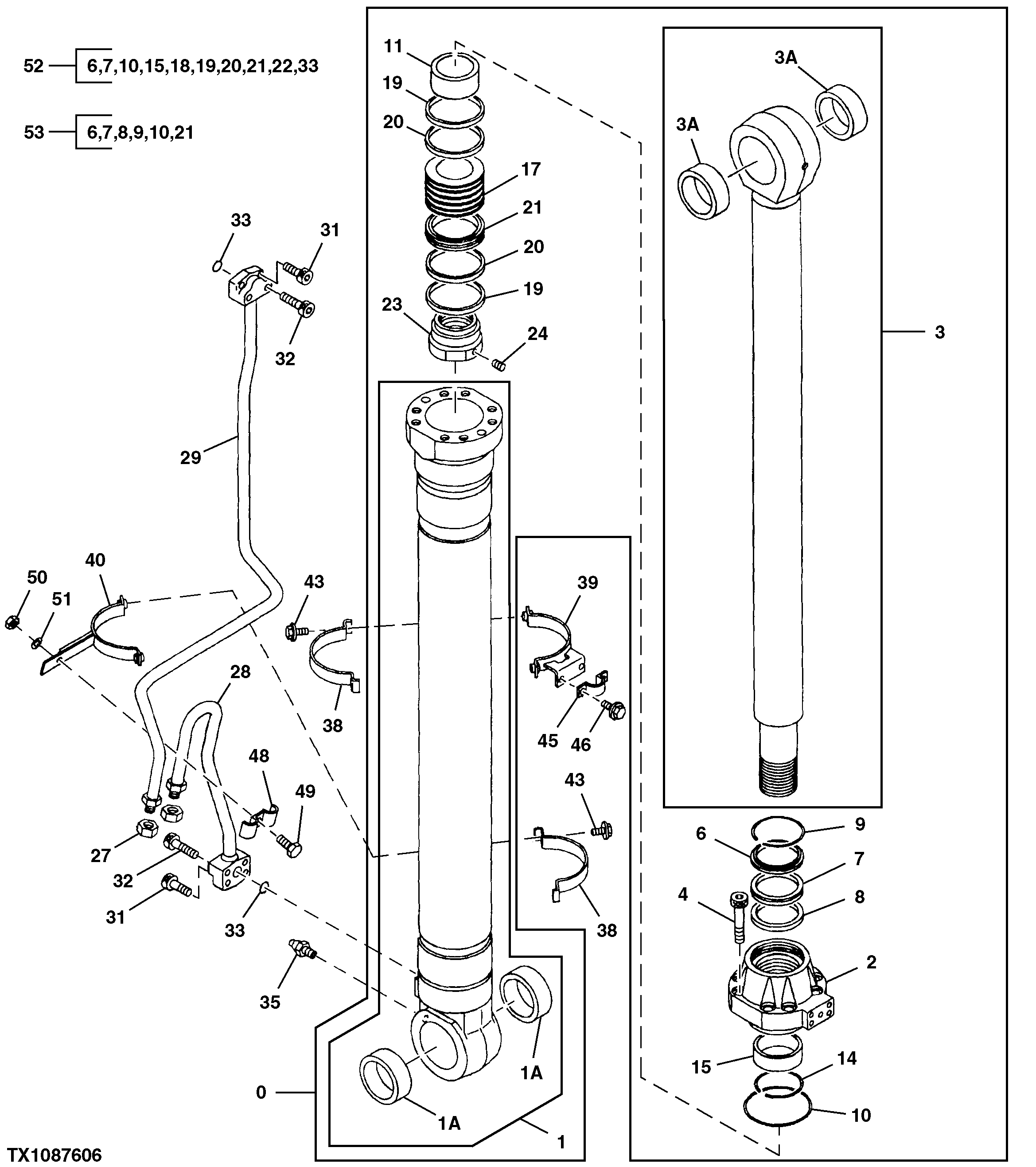

Запчасти John Deere 35C RTS 539 - EXCAVATOR RIGHT BOOM CYLINDER (SN -350057) 3360 HYDRAULIC SYSTEM

0

9292425

Hydraulic Cylinder

0961201JEX, 9206325 AND FFSB12472 NLA

1шт.

1

9206362

Hydraulic Cylinder Barrel

1шт.

1A

4381855

Bushing

2шт.

2

1026691

Cylinder Head

1шт.

3

7037753

Rod

1шт.

3A

4381855

Bushing

2шт.

4

19M8630

Screw

M24 X 80

9шт.

6

AT264298

Seal

Dust SUB FOR 4351498

1шт.

7

AT333702

Seal

ALSO ORDER AT280445, SUB FOR 4411660 OR AT264306

1шт.

8

AT264414

Seal

SUB FOR TH111839, 4171487 AND 4411655

1шт.

9

4383089

Snap Ring

1шт.

10

AT264307

O-Ring

SUB FOR 4383091

1шт.

11

2041628

Ring

1шт.

14

4268206

Snap Ring

1шт.

15

AT264308

Bushing

SUB FOR 4383093

1шт.

17

3080834

Piston

1шт.

18

AT280445

Seal Kit

Not Illustrated

1шт.

19

AT264415

Ring

SUB FOR 4171490

2шт.

20

AT264416

Wear Ring

SUB FOR 4194622

2шт.

21

AT264417

Ring

SUB FOR 4386916

1шт.

22

AT264306

Seal

1шт.

23

3039349

Nut

1шт.

24

4201806

Set Screw

1шт.

27

4260204

Nut

2шт.

28

8069108

Oil Line

1шт.

29

8069109

Oil Line

1шт.

31

19M8341

Screw

M12 X 45

4шт.

32

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

SUB FOR TH100044

2шт.

35

TH100074

Lubrication Fitting

1шт.

38

3080216

Clamp

2шт.

39

8069891

Clamp

1шт.

40

8079343

Clamp

1шт.

43

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

45

4174241

Clamp

1шт.

46

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

48

4229234

Clamp

1шт.

49

19M8348

Cap Screw

M12 X 65

1шт.

50

14M7275

Nut

M12

1шт.

51

12H301

Lock Washer

1/2"

1шт.

52

Seal Kit

AT264440 NLA, SUB 9180581, ALSO ORDER A T264308, AT264416, AT264415 AND AT264324

1шт.

53

9180581

Seal Kit

1шт.
