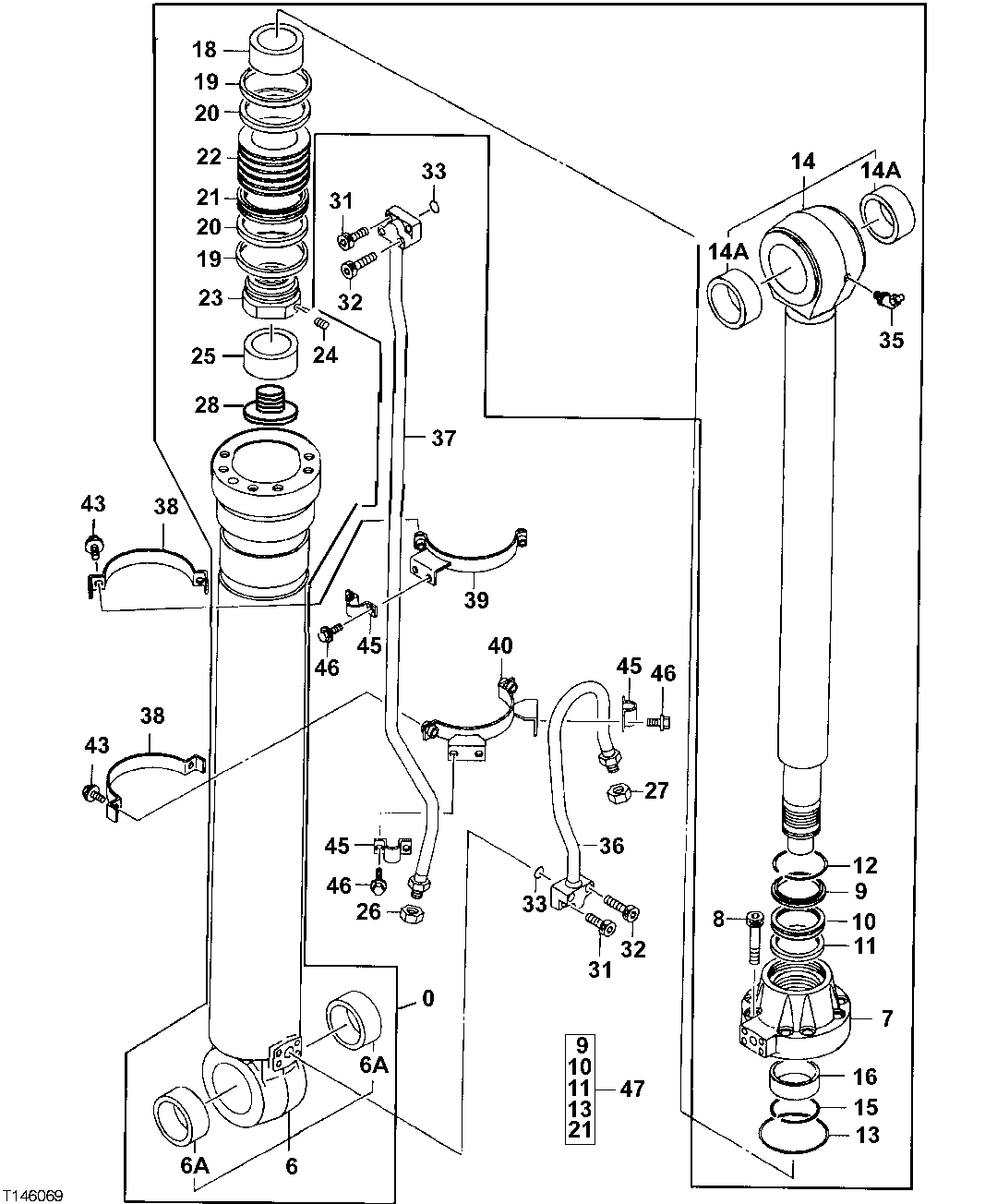

Запчасти John Deere 35C RTS 533 - EXCAVATOR ARM CYLINDER (SN -XXXXXX) 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder

No Serial Number Available Early Uni ts Have 8 Cylinder Rod Guide Bolts SU B 0961401, REMAN 9206360, 9206327 NLA

1шт.

6A

4381859

Bushing

2шт.

6

9206363

Hydraulic Cylinder Barrel

1шт.

7

1025101

Hydr. Cylinder Rod Guide

1шт.

8

M342700

Screw

8шт.

9

AT264305

Seal

(SUB FOR 4370927)

1шт.

10

AT264300

Seal

(SUB FOR 4411659)

1шт.

11

4411656

Ring

(SUB FOR 4411656, AT264299)

1шт.

12

4370058

Snap Ring

1шт.

13

AT264309

O-Ring

For Heat Problems See DTAC Solution (SUB FOR 4393350)

1шт.

4641099

O-Ring

Heat Resistant

1шт.

14

7037432

Rod

1шт.

14A

4381859

Bushing

(SUB FOR AT250029)

2шт.

15

4372816

Snap Ring

1шт.

16

AT264304

Bushing

(SUB FOR 4370337)

1шт.

18

2041632

Ring

1шт.

19

AT264302

Ring

(SUB FOR 4370063)

2шт.

20

AT264303

Wear Ring

(SUB FOR 4370064)

2шт.

21

AT264301

Seal

(SUB FOR 4370062)

1шт.

22

3080654

Piston

1шт.

23

3062096

Nut

1шт.

24

4201806

Set Screw

1шт.

25

3079648

Ring

1шт.

26

4260204

Nut

1шт.

27

4260205

Nut

1шт.

28

4387203

Plug

1шт.

31

19M8341

Screw

M12 X 45

4шт.

32

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

(SUB FOR TH100044)

2шт.

35

T116334

Lubrication Fitting

1шт.

36

8070112

Oil Line

1шт.

37

8070113

Oil Line

1шт.

38

3088474

Clamp

2шт.

39

8079073

Clamp

1шт.

40

8079076

Clamp

1шт.

43

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

45

4174241

Clamp

3шт.

46

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

47

9180582

Seal Kit

For Heat Problems See DTAC Solution (SU B FOR AT264441 (ALSO INCLUDES AT280442))

1шт.

9257552

Seal Kit

Heat Resistant

1шт.
