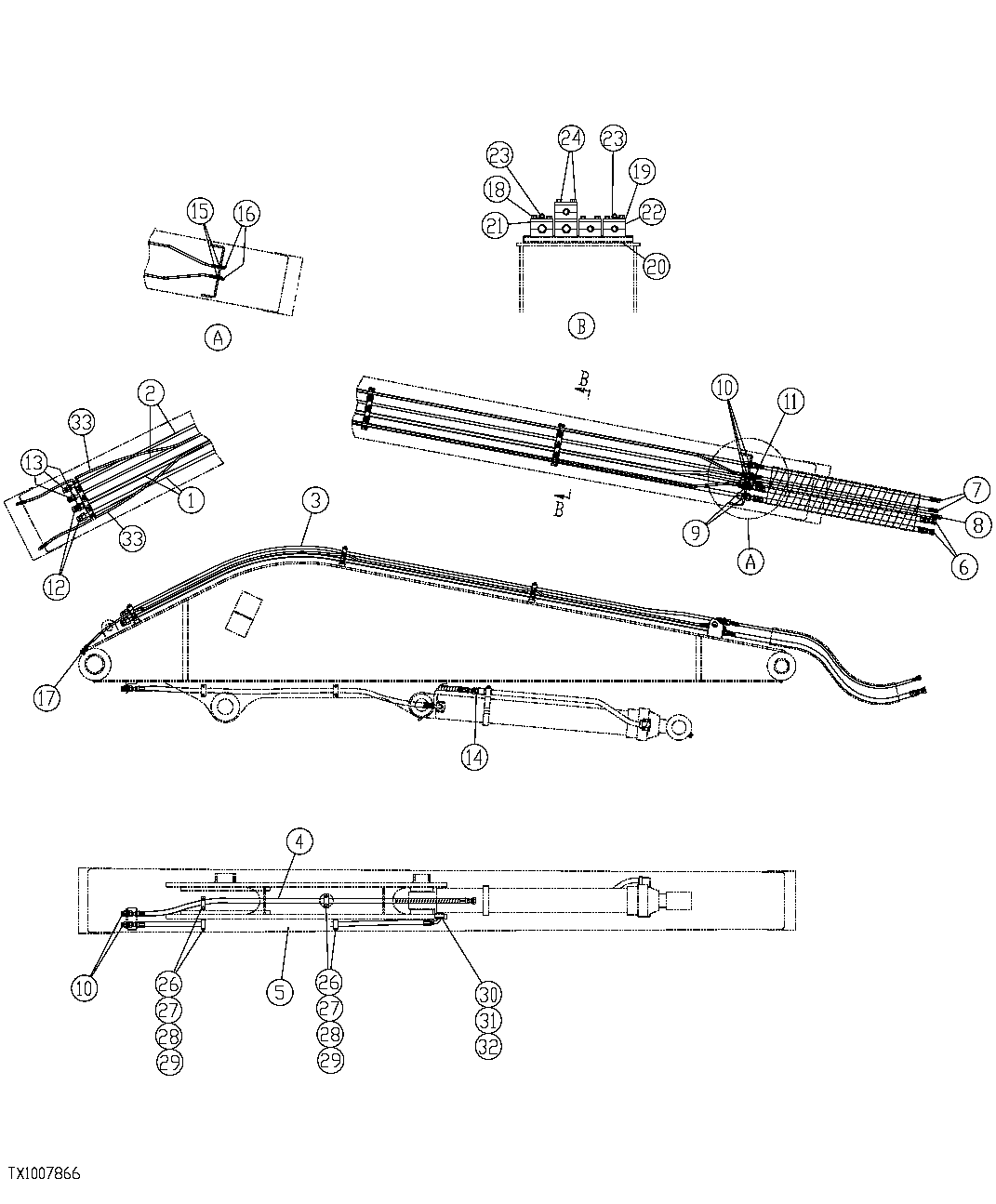

Запчасти John Deere 35C RTS 531 - HEELER ARM PLUMBING 3360 HYDRAULIC SYSTEM

1

FFSB102048

Oil Line

2шт.

2

FFSB102049

Oil Line

2шт.

3

FFSB103768

Oil Line

2шт.

4

Bracket

(SUB FOR FFSB112055)(SUB NEUTRA LIZER LOCK ASSEMBLY FFSB112053)

1шт.

5

FFSB115515

Hose

(SUB FOR FFSB102056)

1шт.

6

FFSB102053

Hydraulic Hose

(CTL) 1727MM (68")

2шт.

7

FFSB102054

Hydraulic Hose

(CTL) 1727MM (68")

2шт.

8

FFSB103764

Hydraulic Hose

(CTL) 1753MM (69")

1шт.

9

38H1287

Adapter Fitting

(SUB FOR FFSB102144)

2шт.

T76938

O-Ring

(SUB FOR FFSB102144)

4шт.

T78715

Nut

(SUB FOR FFSB102144)

2шт.

10

38H1276

Adapter Fitting

(SUB FOR FFSB102145)

5шт.

T77858

O-Ring

(SUB FOR FFSB102145)

10шт.

T78707

Nut

(SUB FOR FFSB102145)

5шт.

11

FFSB103489

Union Fitting

1шт.

12

38H1281

Union Fitting

(SUB FOR FFSB102147)

2шт.

T76938

O-Ring

(SUB FOR FFSB102147)

4шт.

13

38H1272

Union Fitting

(SUB FOR FFSB102148)

3шт.

T77858

O-Ring

(SUB FOR FFSB102148)

6шт.

14

38H1194

Adapter Fitting

(SUB FOR FFSB103502)

1шт.

R29936

O-Ring

(SUB FOR FFSB103502)

1шт.

T77858

O-Ring

(SUB FOR FFSB103502)

1шт.

15

X4WGTX-WLN-S

Adapter Fitting

(SUB FOR FFSB102226)

2шт.

16

JD7763

Lubrication Fitting

(SUB FOR FFSB110875)

2шт.

17

T107303

Elbow Fitting

(SUB FOR FFSB109442)

2шт.

18

19M8499

Cap Screw

M10 X 60 (SUB FOR FFSB109895)

18шт.

19

FFSB100114

Reinforcement

15шт.

20

F120999

Nut

( FFSB109897 NLA)

24шт.

21

FFSB100112

Half Clamp

12шт.

22

FFSB100113

Half Clamp

18шт.

23

H75541

Clamp

(SUB FOR FFSB102223)

6шт.

24

19M8343

Cap Screw

M10 X 120 (SUB FOR FFSB111324)

6шт.

26

19M7875

Cap Screw

M10 X 70 (SUB FOR FFSB108058)

8шт.

27

FFSB102050

Reinforcement

4шт.

28

FFSB102051

Half Clamp

8шт.

29

FFSB110868

Insert

4шт.

30

4085560

Flange Fitting

(SUB FOR FFSB106431)

2шт.

31

T78313

O-Ring

(SUB FOR FFSB106430)

1шт.

32

19M8341

Screw

M12 X 45 (SUB FOR FFSB107326)

4шт.

33

FFSB102057

Hydraulic Hose

(CTL) 4800MM (189")

2шт.
