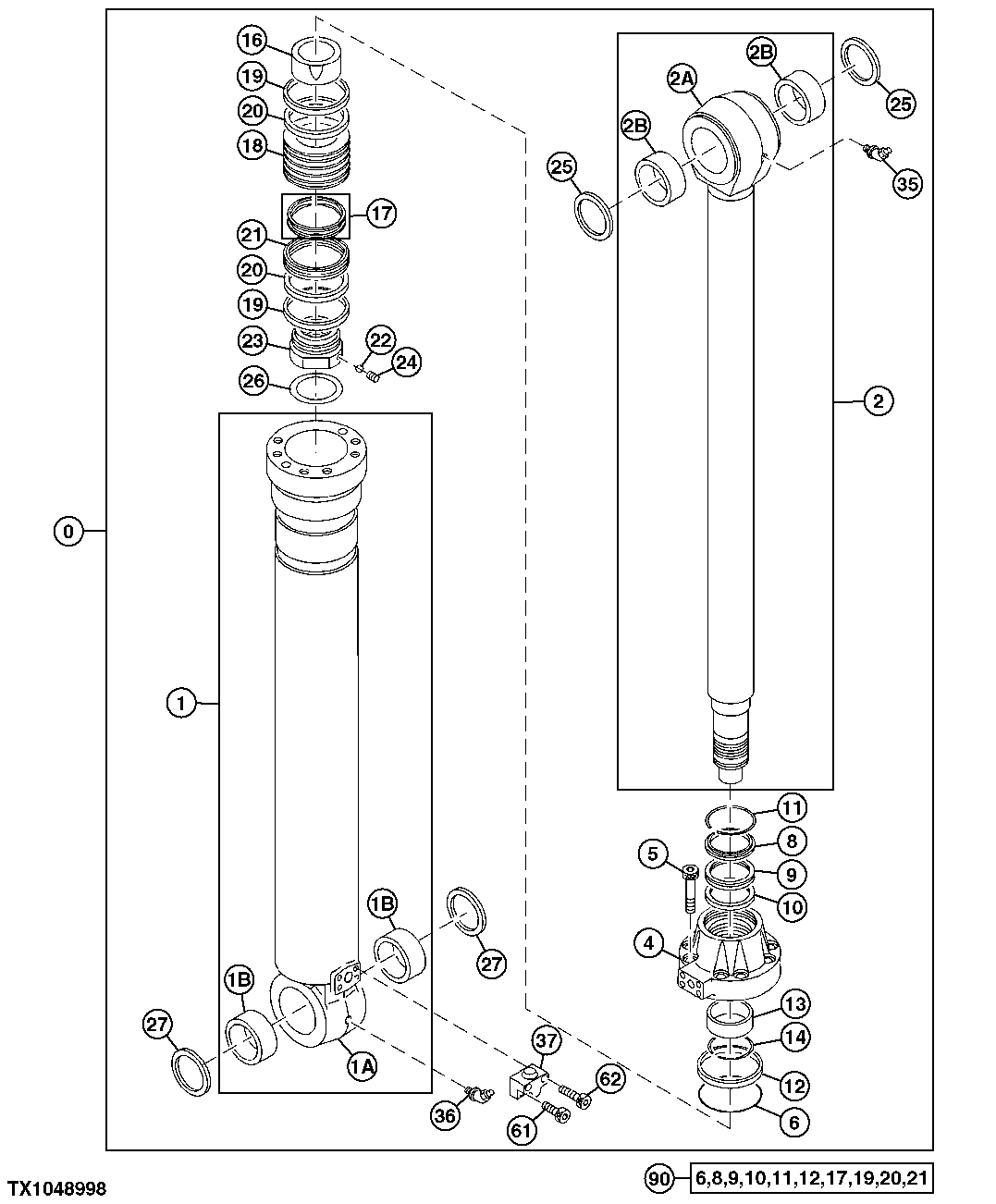

Запчасти John Deere 35C RTS 528 - HEELER AND VALVE IN HEAD TILT CYLINDER (SN 350063- ) 3360 HYDRAULIC SYSTEM

0

4641551

Hydraulic Cylinder

SUB FOR FFSB115499

1шт.

1

1163804

Tube

1шт.

1A

Tube

1163801 NLA

1шт.

1B

4358100

Bushing

SUB FOR 0714303

2шт.

2

1163805

Hydraulic Cylinder Rod

1шт.

2A

Hydraulic Cylinder Rod

1163802 NLA

1шт.

2B

4381857

Bushing

2шт.

4

0997702

Cylinder Head

1шт.

5

19M8985

Screw

M20 X 80 SUB FOR 0166012

10шт.

6

A811140

O-Ring

1шт.

8

H155310

Back-Up Ring

SUB FOR 0667405

1шт.

9

H227910

Seal

SUB FOR 0976006

2шт.

10

H227909

Seal

SUB FOR 0976005

1шт.

11

H155311

Seal

SUB FOR 0667406

1шт.

12

0937506

Back-Up Ring

SUB FOR 0962004

1шт.

13

T108050

Wear Ring

SUB FOR 0309204

1шт.

14

TH102766

Snap Ring

SUB FOR 0236905

1шт.

16

0850602

Cushion

1шт.

17

0373413

Ring

SUB FOR 4S00804

2шт.

18

0937507

Piston

1шт.

19

0492208

Back-Up Ring

SUB FOR 4S00802

2шт.

20

0962008

O-Ring

SUB FOR 4S00803

2шт.

21

0373411

Sealing Ring

SUB FOR 4S00801

1шт.

22

R26552

Ball

7.938 mm (5/16") SUB FOR 0104404

1шт.

23

0836112

Nut

1шт.

24

H228111

Set Screw

M14 X 14 SUB FOR 0352715

1шт.

25

TH102411

Seal

SUB FOR 4074008

2шт.

26

0836111

Shim

1шт.

27

TH102445

Seal

SUB FOR 4067901

2шт.

35

0271312

Fitting

1шт.

36

TH100074

Lubrication Fitting

SUB FOR J75481

1шт.

37

1163803

Plate

1шт.

61

19M8448

Screw

M12 X 35 SUB FOR M341236

2шт.

62

19M8017

Cap Screw

M12 X 20 SUB FOR 0409110

2шт.

90

FYA00001401

Seal Kit

SUB FOR 4660570

1шт.
