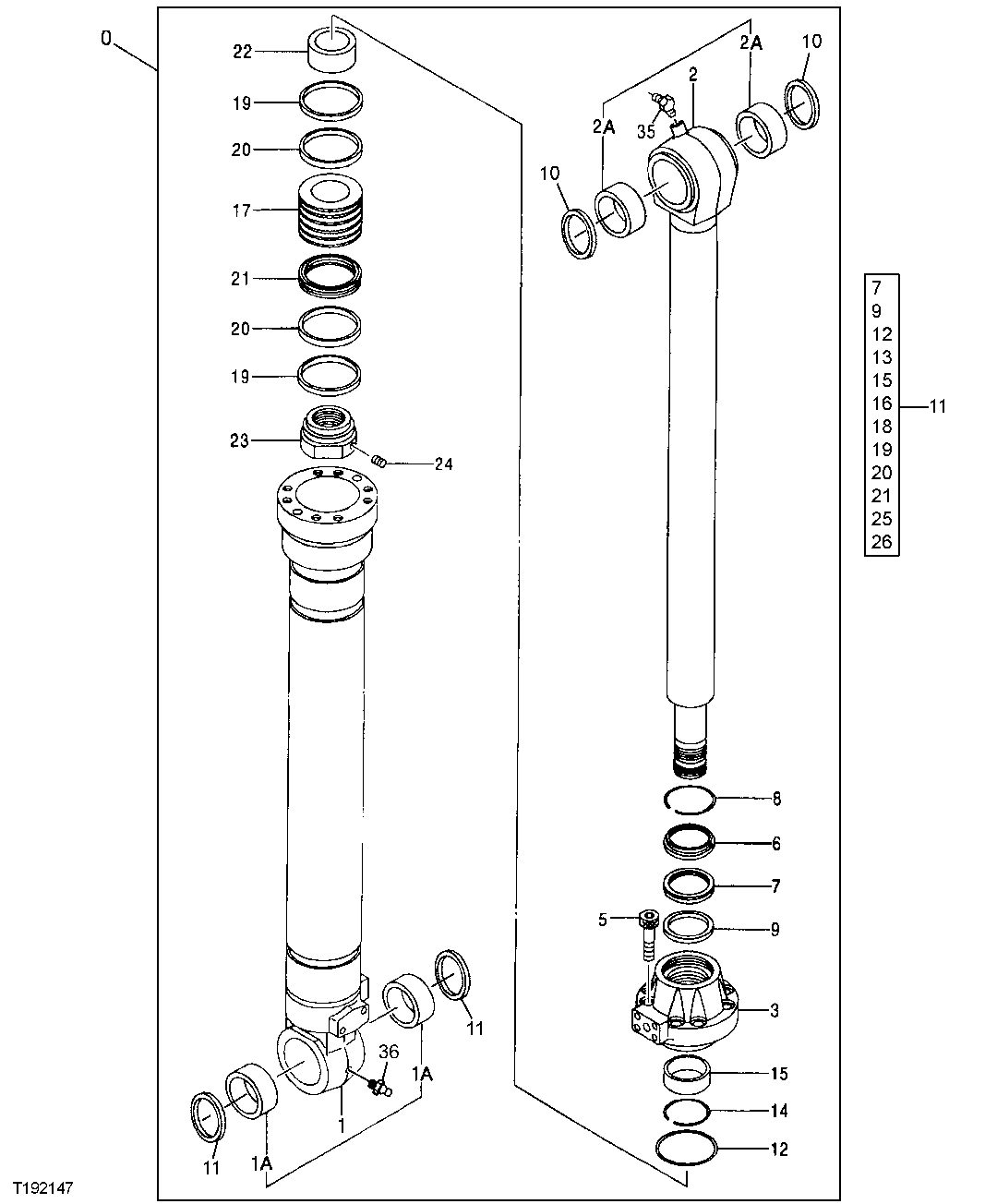

Запчасти John Deere 35C RTS 527 - HEELER AND VALVE IN HEAD TILT CYLINDER (SN -350062) 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder

(SUB 4641551)( 9206361Y NLA ) SUB 4641551, 9206361Y NLA

1шт.

1

4646011

Hydraulic Cylinder Barrel

SUB FOR 9206364, ALSO O RDER 3088557 AND 8079157

1шт.

3088557

Clamp

1шт.

8079157

Clamp

1шт.

1A

4358100

Bushing

2шт.

2

7037769

Rod

1шт.

2A

4381857

Bushing

2шт.

3

1022645

Hydraulic Cylinder Cap

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

AT264294

Seal

SUB FOR 4348201

1шт.

7

AT264408

Seal

SUB FOR TH111216

1шт.

8

4369508

Ring

1шт.

9

4389326

Ring

SUB FOR AT264409

1шт.

10

TH102446

Seal

SUB FOR FFSB109749

2шт.

11

TH102445

Seal

2шт.

12

AT264274

O-Ring

SUB FOR 4267138

1шт.

13

AT264324

O-Ring

Not Illustrated

1шт.

14

4264982

Snap Ring

1шт.

15

AT264239

Bushing

SUB FOR AT131420

1шт.

16

AT264399

Back-Up Ring

Not Illustrated

1шт.

17

3080835

Piston

1шт.

18

AT264406

O-Ring

Not Illustrated

1шт.

19

AT264400

Ring

SUB FOR TH110062

2шт.

20

AT264401

Wear Ring

SUB FOR TH110063

2шт.

21

AT264402

Ring

SUB FOR TH110065

1шт.

22

4194625

Ring

1шт.

23

3039348

Nut

1шт.

24

4201806

Set Screw

1шт.

25

AT264407

Seal

Not Illustrated

1шт.

26

AT280433

Back-Up Ring

Not Illustrated

1шт.

35

T116334

Lubrication Fitting

1шт.

36

TH100074

Lubrication Fitting

1шт.

47

AT264430

Seal Kit

1шт.
