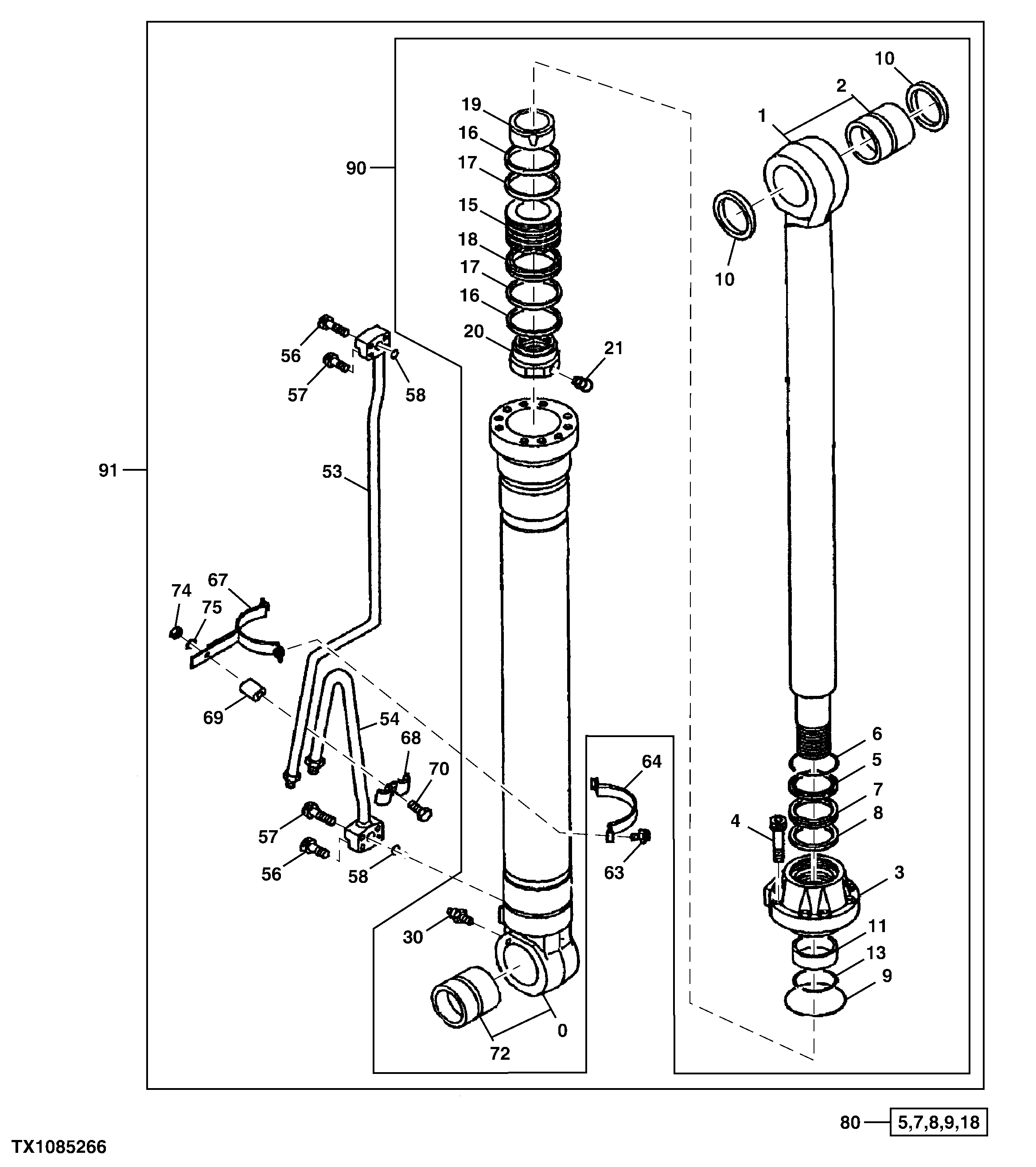

Запчасти John Deere 35C RTS 524 - Log Loader Right Boom Cylinder ( - XXXXXX) 3360 HYDRAULIC SYSTEM

0

7039265

Tube

(SUB FOR FFSB107110)

1шт.

1

7037845

Rod

(SUB FOR FFSB107111)

1шт.

2

3083925

Bushing

(SUB FOR FFSB107112)

1шт.

3

1025101

Hydr. Cylinder Rod Guide

(SUB FOR FFSB107205)

1шт.

4

M342700

Screw

(SUB FOR FFSB107209)

8шт.

5

AT264305

Seal

(SUB FOR FFSB107210, 4370927)

1шт.

6

4370058

Snap Ring

(SUB FOR FFSB107211)

1шт.

7

AT264300

Seal

(SUB FOR 4411659 ) (SUB FOR FFSB107212)

1шт.

8

4411656

Ring

(SUB FOR AT264299 ) (SUB FOR FFSB107213)

1шт.

9

AT264309

O-Ring

For Heat Problems See DTAC Solut ion (SUB FOR FFSB107214, 4393350)

1шт.

4641099

O-Ring

Heat Resistant

1шт.

10

4411613

Seal

(SUB FOR FFSB108219)

2шт.

11

AT264304

Bushing

(SUB FOR FFSB107216, 4370337)

1шт.

13

4372816

Snap Ring

(SUB FOR FFSB107217)

1шт.

15

3080654

Piston

(SUB FOR FFSB107218)

1шт.

16

AT264302

Ring

(SUB FOR FFSB107226, 4370063)

2шт.

17

AT264303

Wear Ring

(SUB FOR FFSB107228, 4370064)

2шт.

18

AT264301

Seal

(SUB FOR FFSB107229, 4370062)

1шт.

19

2044681

Ring

(SUB FOR FFSB107230)

1шт.

20

3062096

Nut

(SUB FOR FFSB107231)

1шт.

21

4201806

Set Screw

(SUB FOR FFSB107232)

1шт.

30

TH100074

Lubrication Fitting

(SUB FOR FFSB107233)

1шт.

53

8081898

Line

(SUB FOR FFSB107253)

1шт.

54

8081914

Line

(SUB FOR FFSB107254)

1шт.

56

19M8341

Screw

M12 X 45 (SUB FOR FFSB107236)

4шт.

57

19M8444

Screw

M12 X 60 (SUB FOR FFSB107237)

4шт.

58

AT264324

O-Ring

(SUB FOR FFSB107238, TH100044)

2шт.

63

3080222

Clamp

(SUB FOR FFSB107240)

1шт.

64

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB107241)

2шт.

67

8081943

Clamp

(SUB FOR FFSB107239)

1шт.

68

4229234

Clamp

(SUB FOR FFSB107242)

1шт.

69

4410980

Spacer

(SUB FOR FFSB107243)

1шт.

70

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB107244)

1шт.

72

FFSB102183

Bushing

1шт.

74

14M7275

Nut

M12 (SUB FOR FFSB107245)

1шт.

75

12H301

Lock Washer

1/2" (SUB FOR FFSB107139)

1шт.

80

9180582

Seal Kit

For Heat Problems See DTAC Solution (SUB FOR FFSB108220 OR AT264441 ) (INCLUDES AT280442)

1шт.

9257552

Seal Kit

Heat Resistant

1шт.

90

Hydraulic Cylinder

( FFSB110795, 9218638 NLA)

1шт.

91

Hydraulic Cylinder

(SUB (1) 4641548) ( FF SB104896, 9194159 NLA)

1шт.
