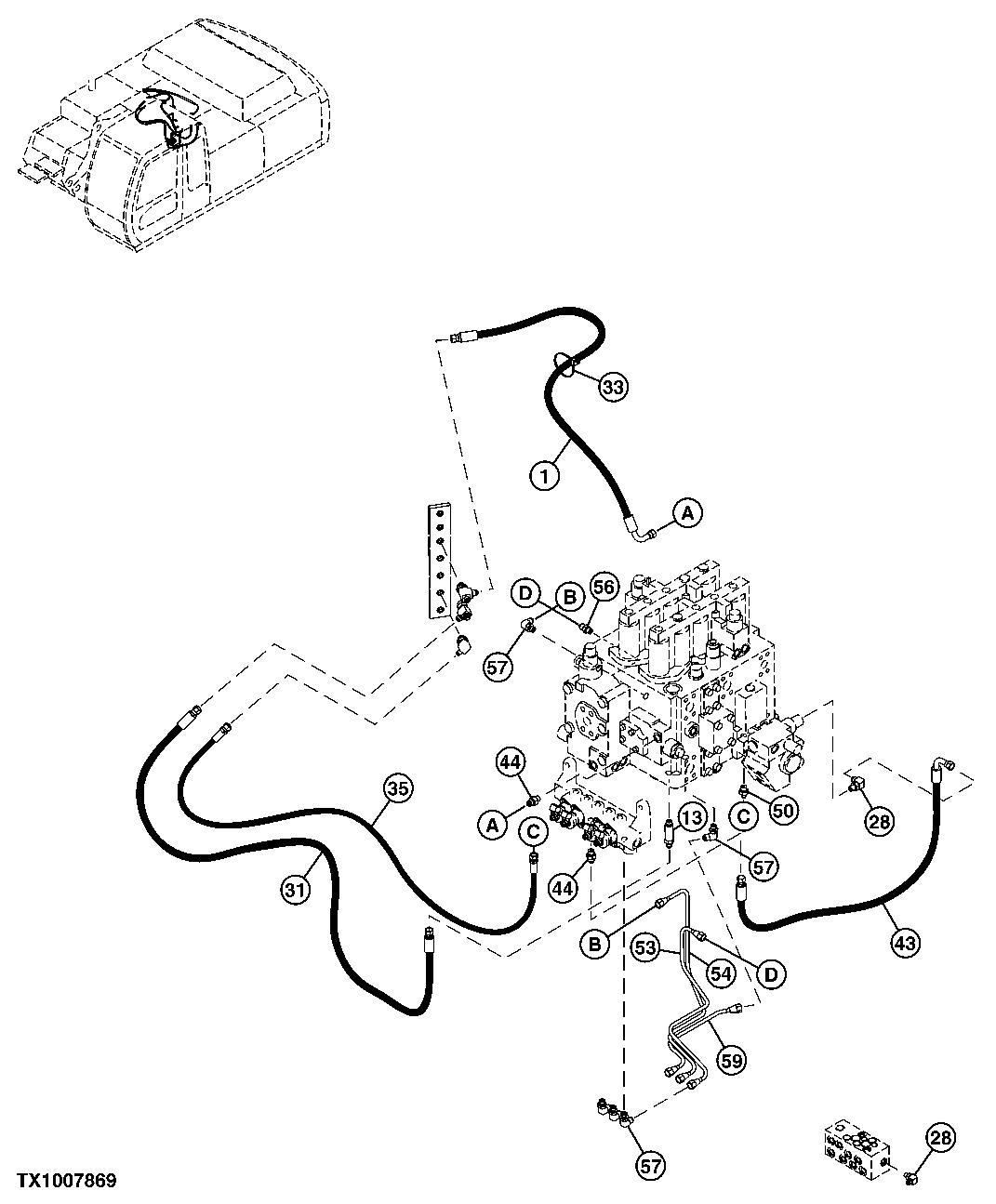

Запчасти John Deere 35C RTS 518 - PILOT HOSES (RESERVOIR TO CONTROL VALVE AND SOLENOID VALVE) 3360 HYDRAULIC SYSTEM

1

4465684

Hydraulic Hose

1шт.

13

4390157

Adapter Fitting

1шт.

13A

M800650

Packing

Not Illustrated

1шт.

28

A852323

Elbow Fitting

2шт.

28A

M800650

Packing

Not Illustrated

2шт.

31

4465687

Hydraulic Hose

1шт.

33

H77698

Tie Band

1шт.

35

4449700

Hydraulic Hose

(SUB FOR 4465688, 44549 00, 4286511–S, 4465688)

1шт.

43

4437741

Hydraulic Hose

1шт.

44

A852123

Adapter Fitting

2шт.

44A

M800650

Packing

Not Illustrated

1шт.

50

A852122

Adapter Fitting

1шт.

50A

M800650

Packing

Not Illustrated

1шт.

53

4386525

Oil Line

1шт.

54

3079456

Oil Line

1шт.

56

4255304

Fitting

1шт.

56A

M800650

Packing

Not Illustrated

1шт.

57

4293950

Fitting

5шт.

57A

M800650

Packing

1шт.

59

4386526

Oil Line

1шт.
