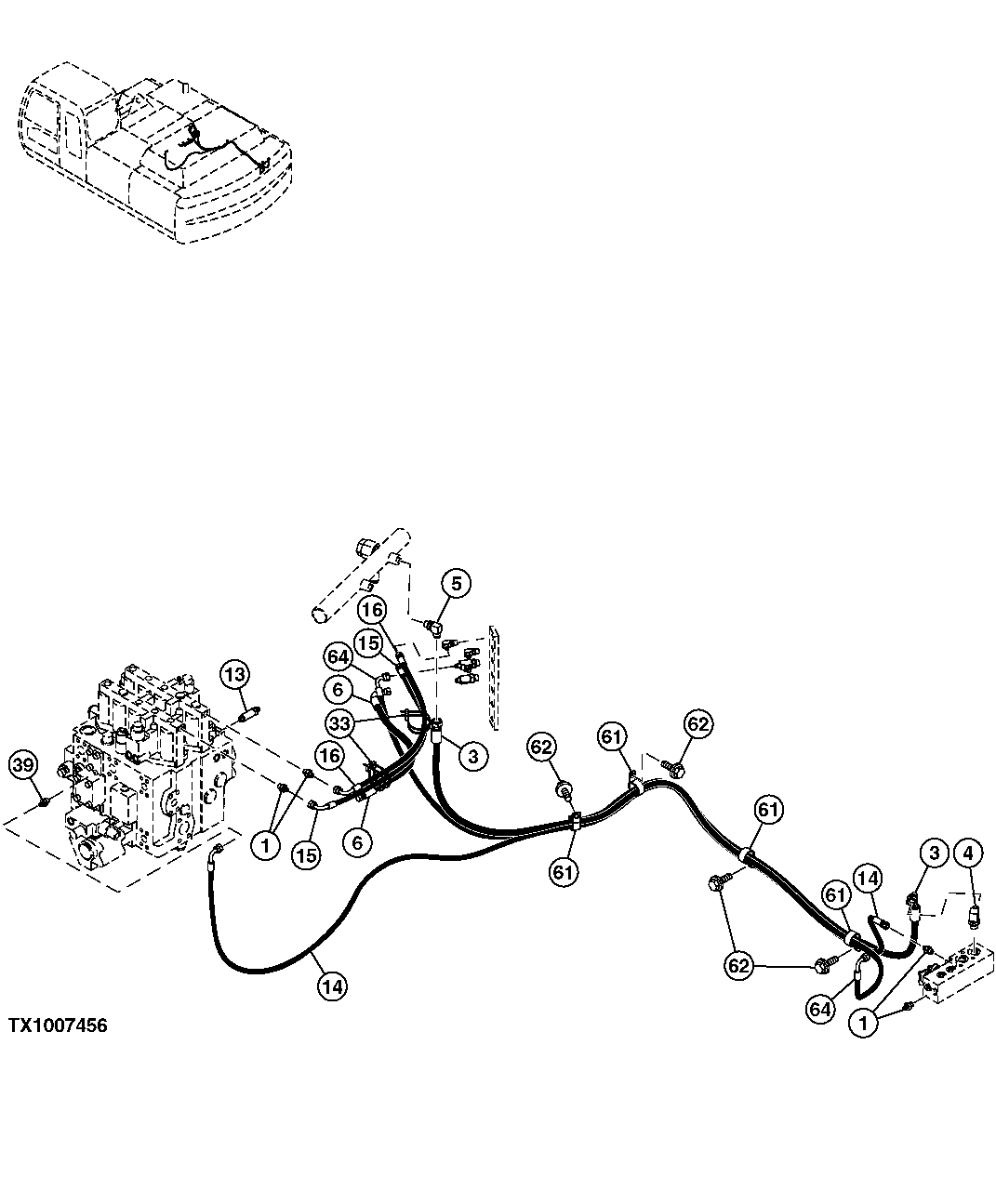

Запчасти John Deere 35C RTS 517 - PILOT HOSES (FROM RESERVOIR TO CONTROL VALVE AND FLOW REGULATOR) 3360 HYDRAULIC SYSTEM

1

A852122

Adapter Fitting

4шт.

1A

M800650

Packing

Not Illustrated

1шт.

3

4386674

Hydraulic Hose

1шт.

4

P67993

Elbow Fitting

1шт.

4A

4506418

O-Ring

Not Illustrated

1шт.

5

A852334

Elbow Fitting

1шт.

5A

CH11570

O-Ring

Not Illustrated

1шт.

6

4427152

Hydraulic Hose

1шт.

13

4390157

Adapter Fitting

1шт.

13A

M800650

Packing

Not Illustrated

1шт.

14

4437794

Hydraulic Hose

1шт.

15

4465685

Hydraulic Hose

1шт.

16

4465686

Hydraulic Hose

1шт.

33

H77698

Tie Band

4шт.

39

4261937

Filter

1шт.

39A

M800650

Packing

Not Illustrated

1шт.

61

XCL-29

Hose Clamp

(SUB FOR 4193848)

4шт.

62

19M7938

Cap Screw

M10 X 20

4шт.

12M7066

Lock Washer

10 mm

4шт.

64

4276003

Hydraulic Hose

SUB FOR 4461525

1шт.
