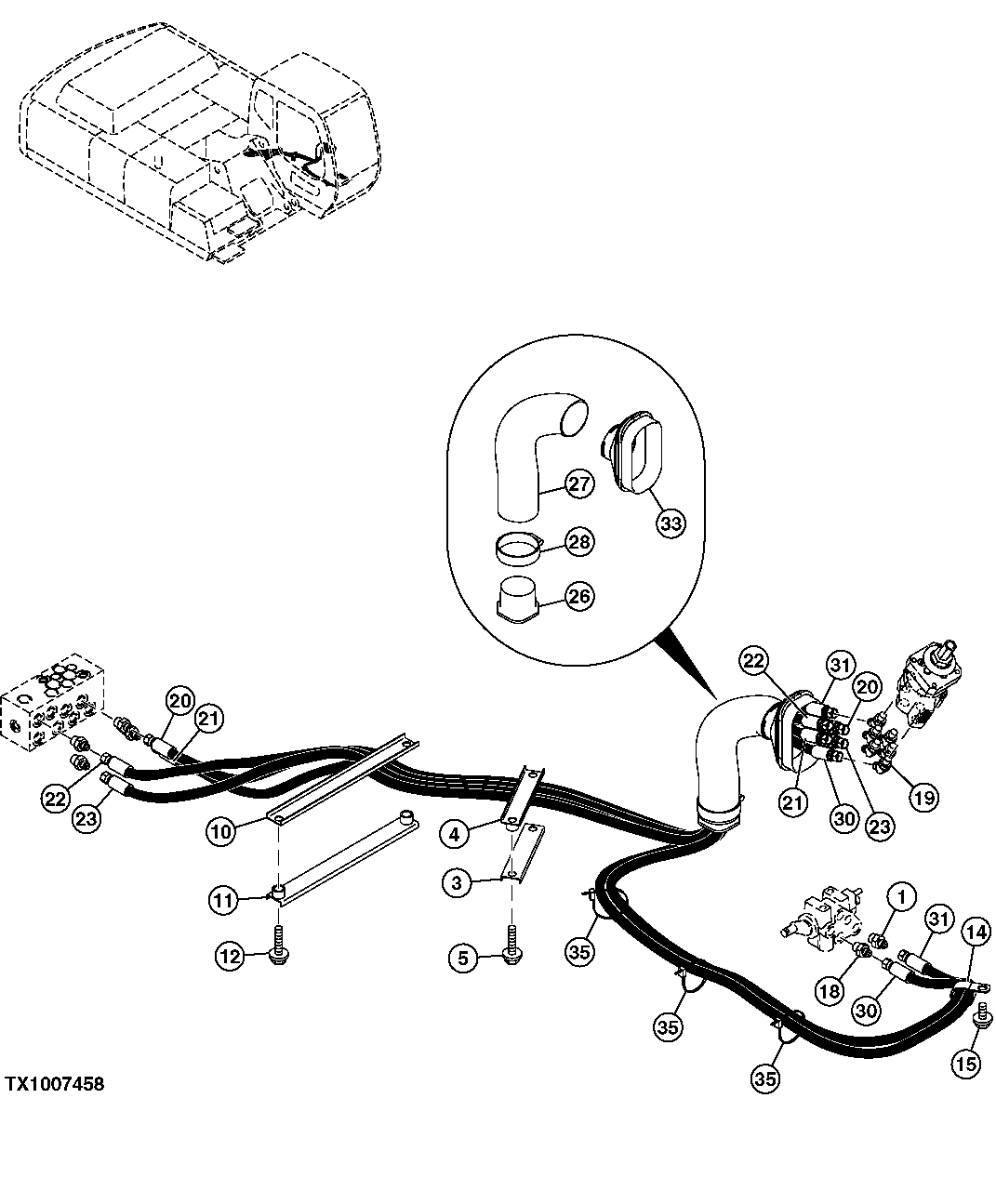

Запчасти John Deere 35C RTS 515 - PILOT HOSES (FROM LEFT PILOT CONTROLLER FOR DIG AND SWING) 3360 HYDRAULIC SYSTEM

1

4261938

Fitting

1шт.

1A

CH11570

O-Ring

Not Illustrated

1шт.

3

4412666

Clamp

1шт.

4

9751787

Clamp

1шт.

5

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

10

4425177

Channel

1шт.

11

9757141

Clamp

1шт.

12

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

14

AT121321

Hose Clamp

1шт.

15

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

18

A852133

Adapter Fitting

1шт.

18A

CH11570

O-Ring

Not Illustrated

1шт.

19

A852223

Elbow Fitting

6шт.

19A

M800650

Packing

Not Illustrated

1шт.

20

4456557

Hydraulic Hose

1шт.

21

4456558

Hydraulic Hose

1шт.

22

4456559

Hydraulic Hose

1шт.

23

4456560

Hydraulic Hose

1шт.

26

3079728

Bushing

1шт.

27

4351175

Hose

1шт.

28

4351774

Clamp

1шт.

30

4437653

Hydraulic Hose

1шт.

31

4437656

Hydraulic Hose

Fabricate

1шт.

33

2045998

Bushing

1шт.

35

H77698

Tie Band

3шт.
