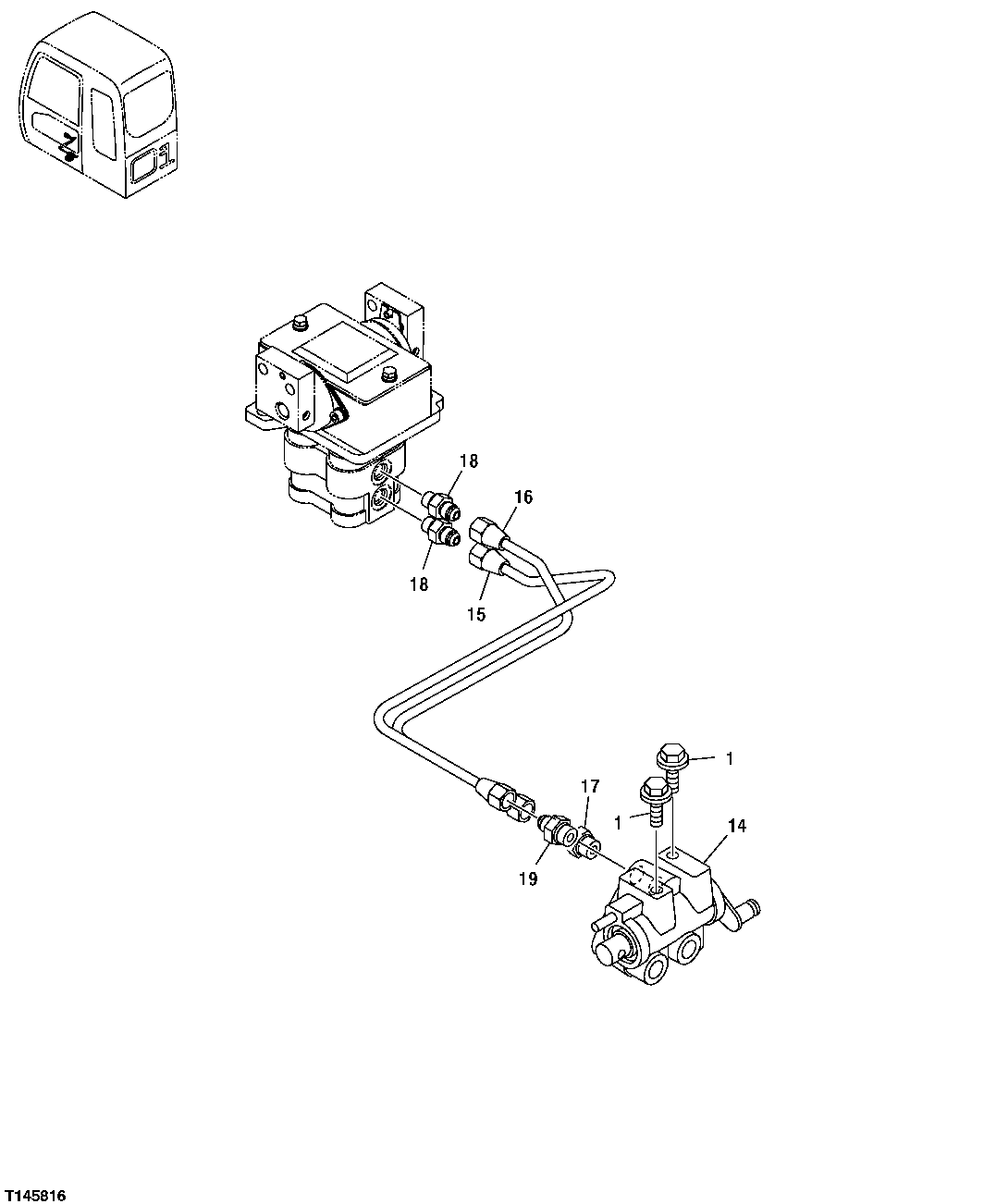

Запчасти John Deere 35C RTS 513 - PILOT LINES (PILOT SHUTOFF VALVE TO PROPEL PILOT CONTROLLER) 3360 HYDRAULIC SYSTEM

1

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

14

4407253

Flow Control Hyd. Valve

1шт.

15

4452052

Oil Line

1шт.

4607398

Oil Line

1шт.

16

4452053

Oil Line

1шт.

4607399

Oil Line

1шт.

17

4255305

Fitting

1шт.

CH11570

O-Ring

1шт.

18

4255304

Fitting

2шт.

M800650

Packing

2шт.

19

4452326

Filter

1шт.

CH11570

O-Ring

1шт.
