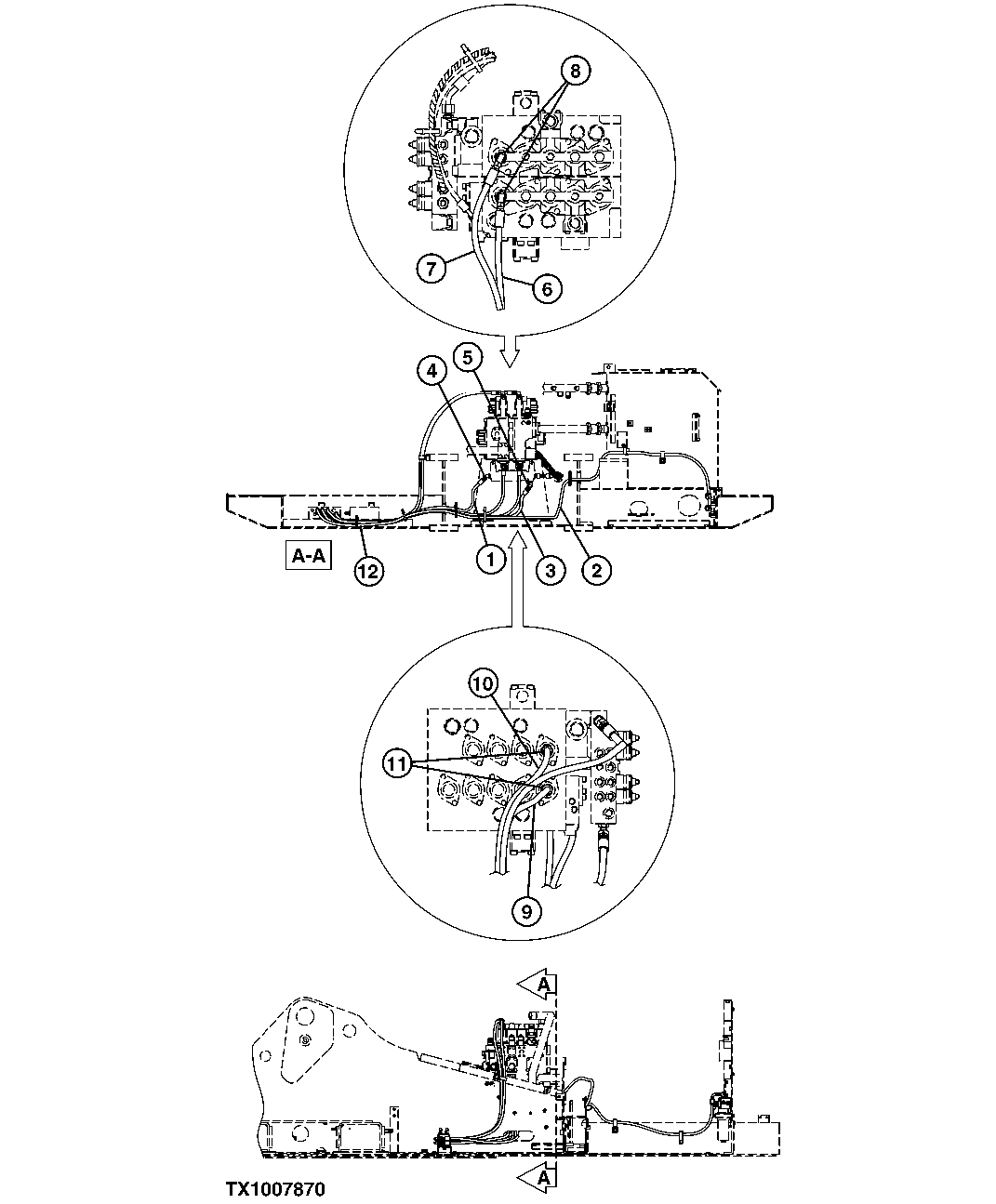

Запчасти John Deere 35C RTS 509 - PILOT HOSES (FLOW REGULATING VALVE TO CONTROL VALVE) 3360 HYDRAULIC SYSTEM

1

FFSB107648

Hydraulic Hose

(CTL) 1791MM

1шт.

2

FFSB107565

Hydraulic Hose

(CTL) 4438MM

1шт.

3

FFSB107566

Hydraulic Hose

(CTL) 2020MM

1шт.

4

4190244

Elbow Fitting

(SUB FOR FFSB108477)

1шт.

5

4236729

Elbow Fitting

(SUB FOR FFSB109437)

1шт.

6

FFSB107567

Hydraulic Hose

(CTL) 1895MM

1шт.

7

FFSB107568

Hydraulic Hose

(CTL) 2045MM

1шт.

8

4208913

Adapter Fitting

(SUB FOR FFSB107487)

2шт.

9

FFSB107563

Hydraulic Hose

(CTL) 2045MM

1шт.

10

FFSB107564

Hydraulic Hose

(CTL) 2045MM

1шт.

11

4219324

Adapter Fitting

(SUB FOR FFSB105049)

2шт.

12

H77698

Tie Band

(SUB FOR FFSB108110)

5шт.
