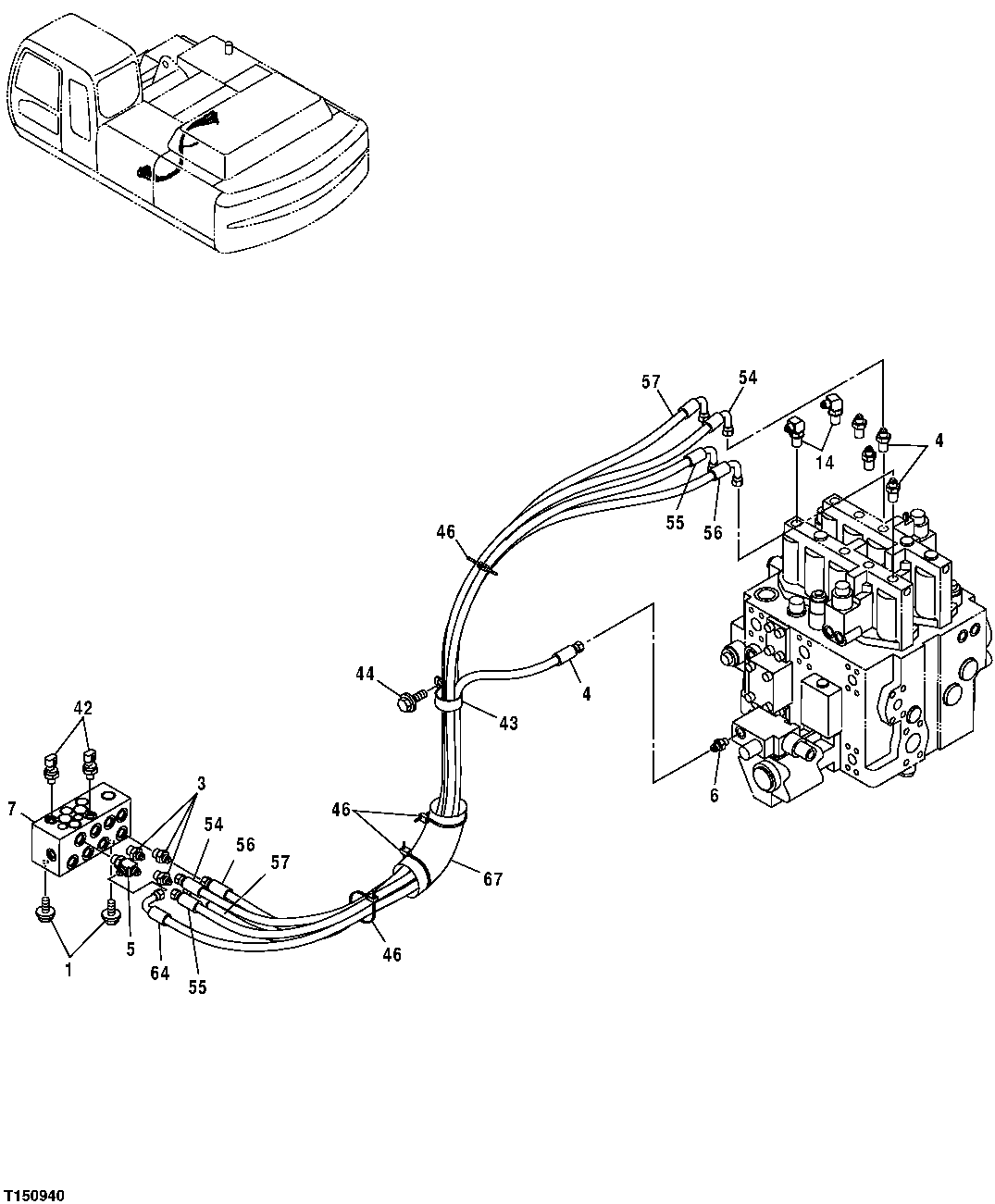

Запчасти John Deere 35C RTS 508 - PILOT HOSES (FLOW REGULATING VALVE TO TOP OF CONTROL VALVE) 3360 HYDRAULIC SYSTEM

1

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

3

A852133

Adapter Fitting

3шт.

CH11570

O-Ring

3шт.

4

4202422

Adapter Fitting

4шт.

CH11570

O-Ring

4шт.

5

A852433

Tee Fitting

1шт.

CH11570

O-Ring

1шт.

6

A852123

Adapter Fitting

1шт.

M800650

Packing

1шт.

7

4445357

Hyd Actuated Control Valve

1шт.

14

4208913

Adapter Fitting

2шт.

CH11570

O-Ring

1шт.

42

4436535

Sensor

2шт.

43

XCL-29

Hose Clamp

(SUB FOR 4193848)

1шт.

44

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

46

H77698

Tie Band

4шт.

54

4456548

Hydraulic Hose

1шт.

55

4456550

Hydraulic Hose

1шт.

56

4456551

Hydraulic Hose

1шт.

57

4456552

Hydraulic Hose

1шт.

64

4456554

Hydraulic Hose

1шт.

67

4219918

Isolator

1шт.
