507 - PILOT HOSES (FROM CONTROL VALVE TO ROTARY MANIFOLD)

Запчасти John Deere 35C RTS 507 - PILOT HOSES (FROM CONTROL VALVE TO ROTARY MANIFOLD) 3360 HYDRAULIC SYSTEM

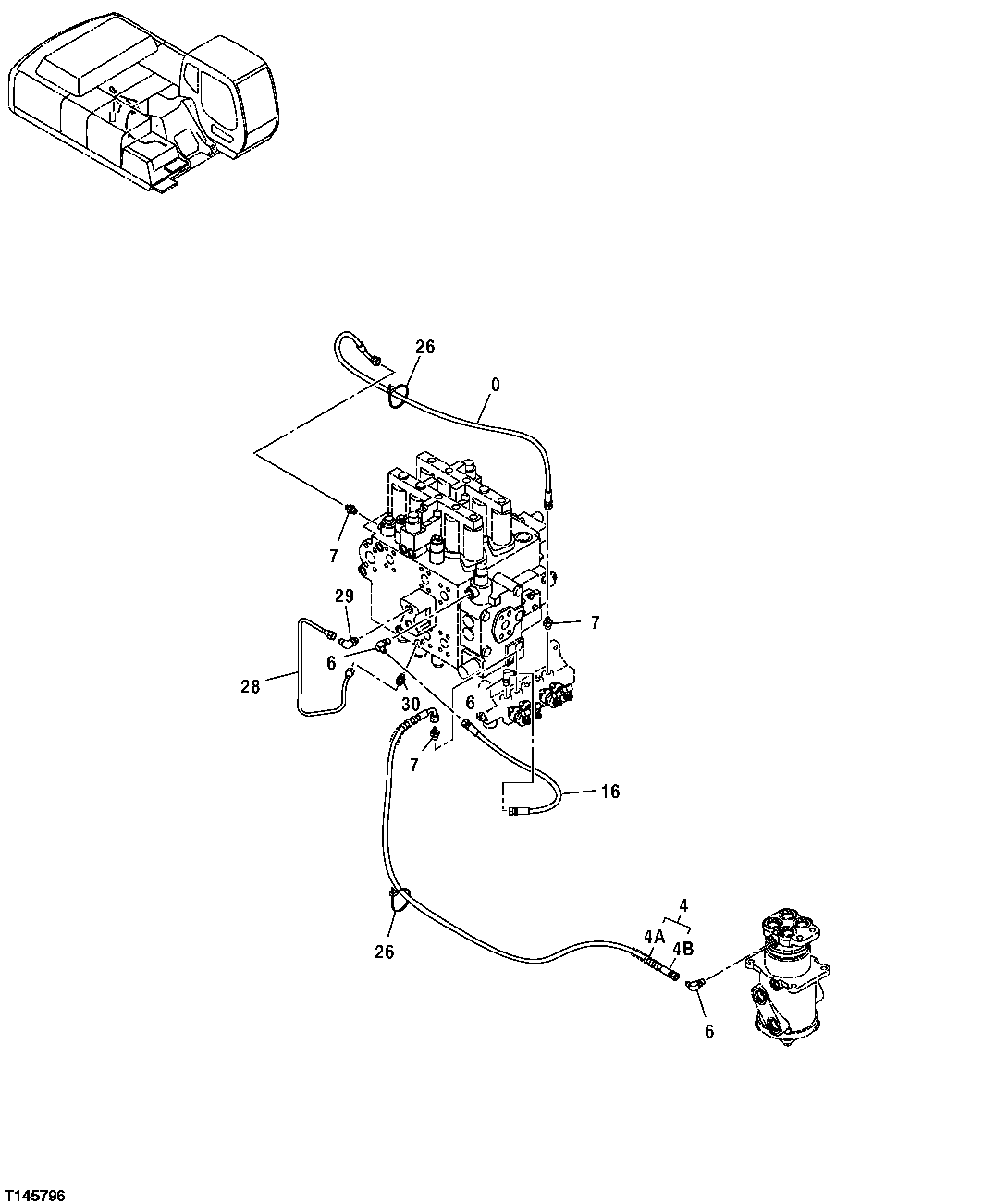

Схема запчастей John Deere 35C RTS - 507 - PILOT HOSES (FROM CONTROL VALVE TO ROTARY MANIFOLD) 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4427781

Hydraulic Hose

1шт.

4

Hydraulic Hose

9190859 NLA

1шт.

4A

4465682

Hydraulic Hose

1шт.

4B

4327315

Hose Guard

4327293 NLA

1шт.

6

4154670

Elbow Fitting

SUB FOR A852322, P67984 OR THA852322

3шт.

M800650

Packing

1шт.

7

A852122

Adapter Fitting

3шт.

M800650

Packing

1шт.

16

4442331

Hydraulic Hose

1шт.

26

H77698

Tie Band

2шт.

28

3079448

Oil Line

1шт.

29

4293950

Fitting

1шт.

M800650

Packing

1шт.

30

4255304

Fitting

1шт.

M800650

Packing

1шт.
