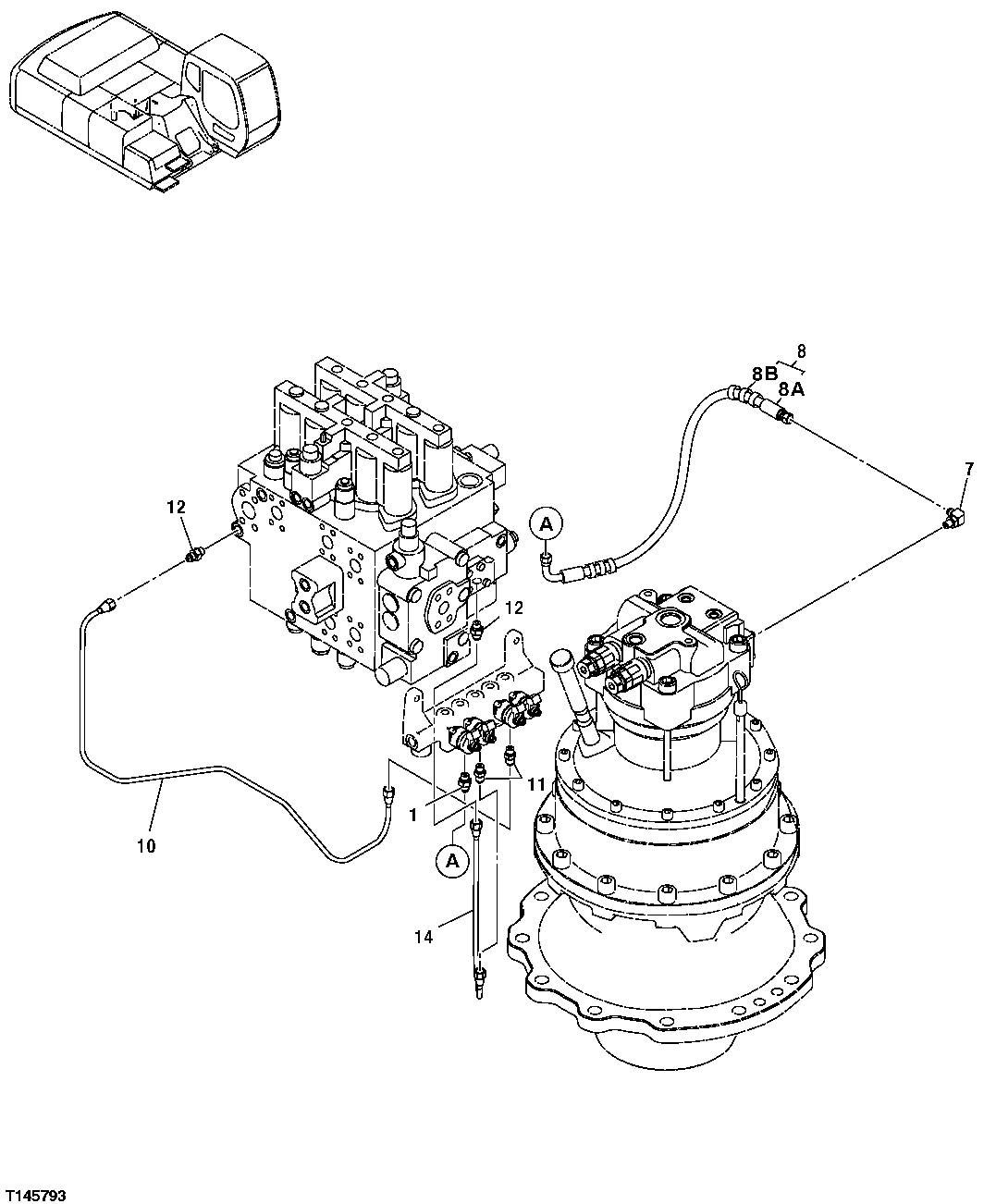

Запчасти John Deere 35C RTS 504 - PILOT LINES AND HOSES (CONTROL VALVE TO SWING MOTOR) 3360 HYDRAULIC SYSTEM

1

A852123

Adapter Fitting

1шт.

1A

M800650

Packing

Not Illustrated

1шт.

7

A852323

Elbow Fitting

1шт.

7A

M800650

Packing

Not Illustrated

1шт.

8

Hydraulic Hose

9190851 NLA

1шт.

8A

4448017

Hose

SUB FOR TH4465681 OR 4465681

1шт.

8B

4327315

Hose Guard

SUB FOR 4327293

1шт.

10

3079454

Oil Line

1шт.

11

4255304

Fitting

2шт.

11A

M800650

Packing

Not Illustrated

1шт.

12

4404022

Adapter Fitting

2шт.

12A

M800650

Packing

Not Illustrated

1шт.

14

4386483

Oil Line

1шт.
