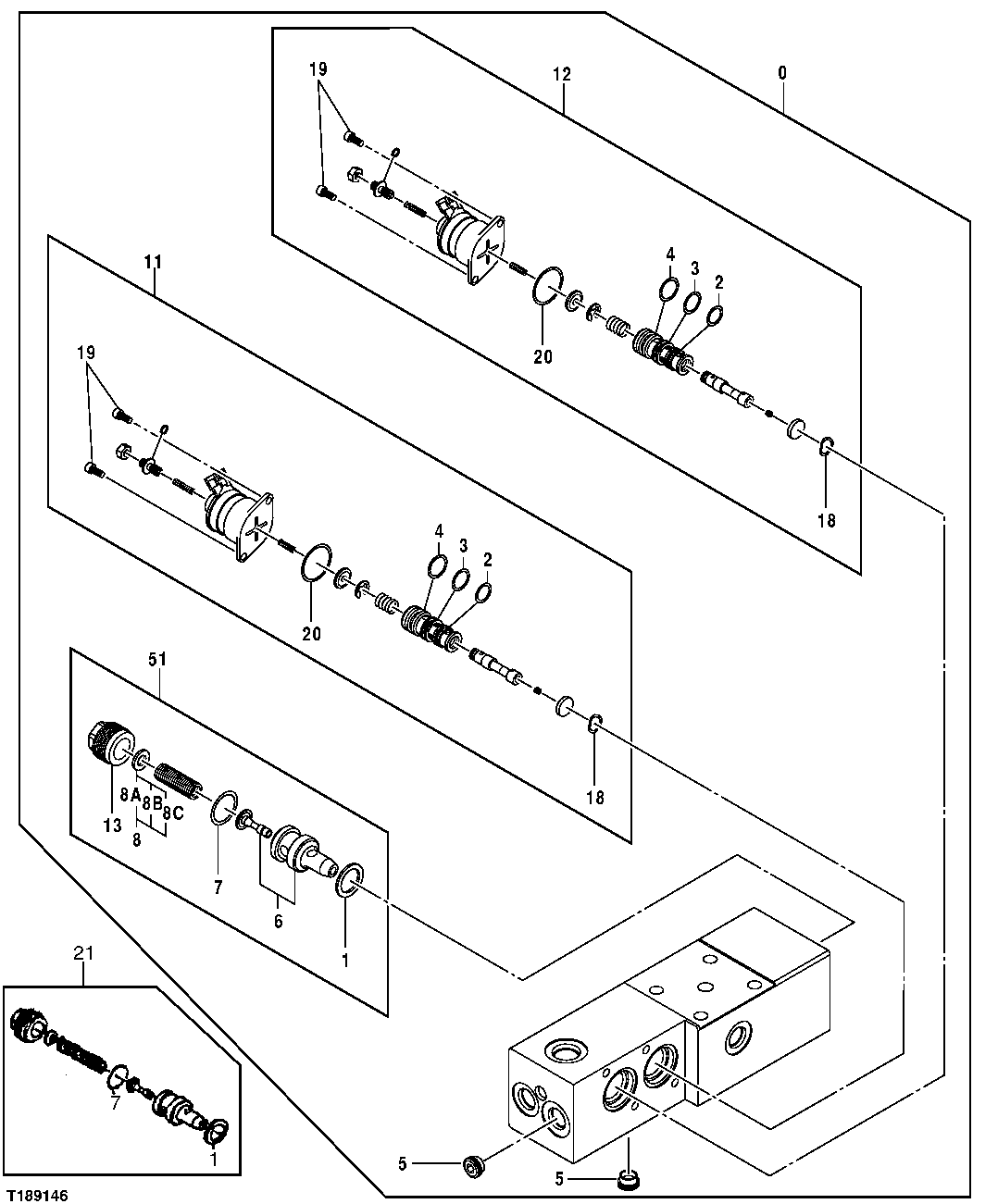

Запчасти John Deere 35C RTS 502 - SOLENOID VALVE COMPONENTS 3360 HYDRAULIC SYSTEM

0

Solenoid Valve

(ORDER 9220219)( 4445490 OR 9218276 NLA)

1шт.

1

4487648

Gasket

(SUB FOR 0308704)

1шт.

2

4185600

O-Ring

2шт.

3

R99052

O-Ring

2шт.

4

4163873

O-Ring

(SUB FOR 0408411 OR TH106081)

2шт.

5

9761179

Plug

(SUB FOR 4455986)

2шт.

6

Pressure Relief Valve

( 0308703 NLA) (SUB 4309970, AT154417, 4289288 OR 9218128)

1шт.

7

4487138

O-Ring

(SUB FOR 0308705)

1шт.

8

9228867

Shim

(SUB FOR 4293211)

1шт.

8A

4606473

Shim

(SUB FOR 4309836)

2шт.

8B

4487297

Shim

(SUB FOR 4309837)

2шт.

8C

Shim

( 4309838 NLA)

2шт.

8D

4601120

Shim

2шт.

11

4462950

Solenoid Valve

1шт.

12

4457822

Solenoid Valve

1шт.

13

Fitting Plug

(NLA)

1шт.

18

4455990

Washer

2шт.

19

0387804

Screw

4шт.

20

4455989

Seal

2шт.

21

4309970

Pressure Relief Valve

(SUB FOR 0308703 ) (SUB 9 218128)(USE IF AVAILABLE)

1шт.

9218128

Solenoid Hydraulic Valve

(SUB FOR 4309970)(COMPONENT LIST NOT CURRENTLY AVAILABLE)

1шт.

51

0709701

Pressure Relief Valve

1шт.
