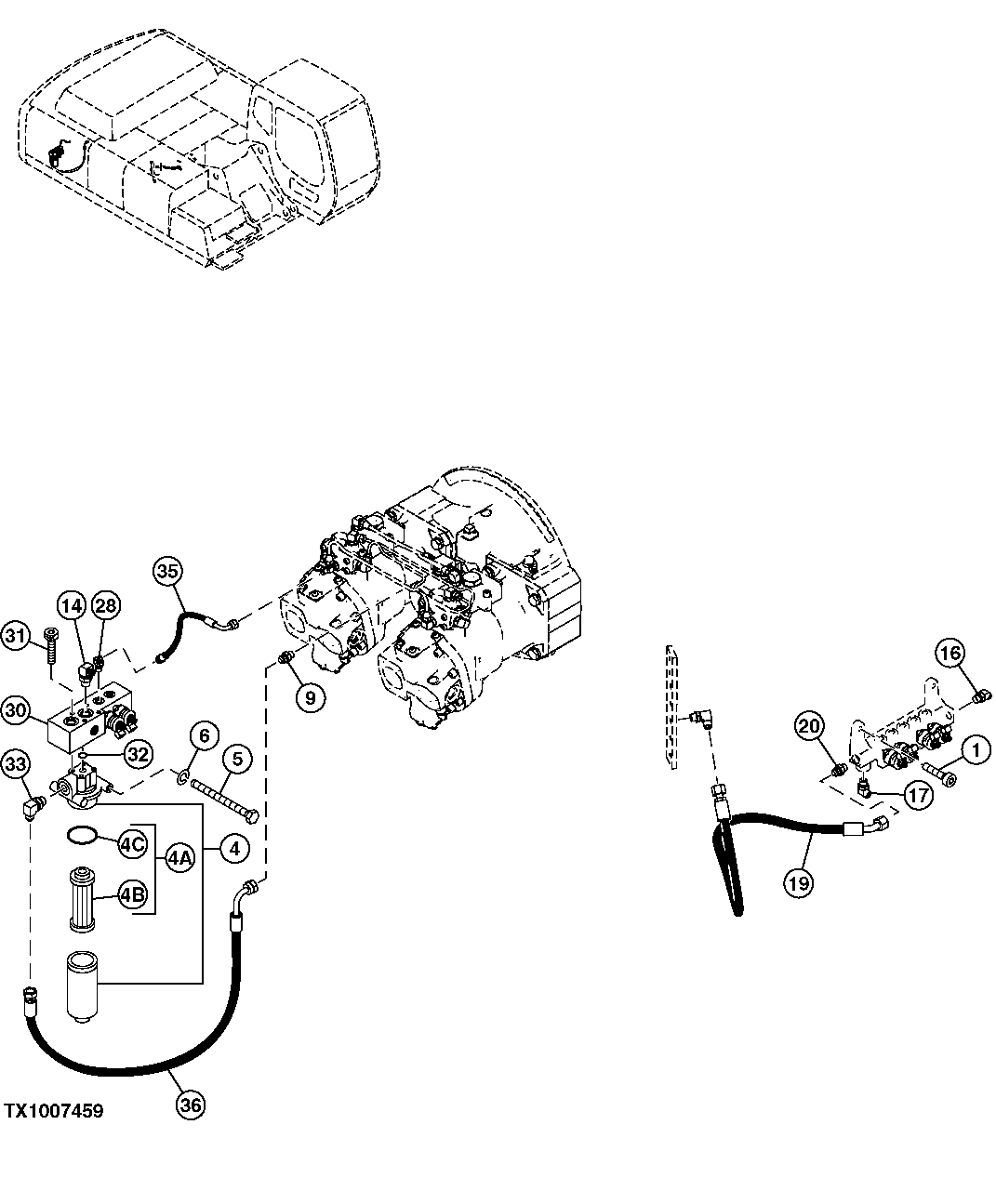

Запчасти John Deere 35C RTS 501 - PILOT HOSES AND FILTER AT PUMP 3360 HYDRAULIC SYSTEM

1

19M8337

Screw

M10 X 30

2шт.

4

4330227

Filter Head

1шт.

4A

AT186554

Filter Element

1шт.

4B

Filter Element

NLA

1шт.

4C

TH105683

O-Ring

1шт.

5

19M8343

Cap Screw

M10 X 120

2шт.

6

12M7066

Lock Washer

10 mm

2шт.

9

A852134

Adapter Fitting

1шт.

9A

CH11570

O-Ring

Not Illustrated

1шт.

14

P67992

Elbow Fitting

1шт.

14A

4506418

O-Ring

Not Illustrated

1шт.

16

4190244

Elbow Fitting

1шт.

16A

CH11570

O-Ring

Not Illustrated

1шт.

17

A852234

Elbow Fitting

1шт.

17A

CH11570

O-Ring

Not Illustrated

1шт.

19

4405562

Hydraulic Hose

1шт.

20

A852134

Adapter Fitting

1шт.

20A

CH11570

O-Ring

Not Illustrated

1шт.

28

THA852222

Elbow Fitting

1шт.

28A

M800650

Packing

Not Illustrated

1шт.

30

9220219

Solenoid Valve

(SUB FOR 4445490 OR 9218276

1шт.

31

J780880

Bolt

4шт.

32

4506416

O-Ring

1шт.

33

P67993

Elbow Fitting

1шт.

33A

4506418

O-Ring

Not Illustrated

1шт.

35

4618606

Hose

SUB FOR 4453172 OR 4436293

1шт.

36

4413313

Hydraulic Hose

1шт.

37

4436536

Sensor

Rear Pump Control Pressu re Sensor Not Illustrated

1шт.
