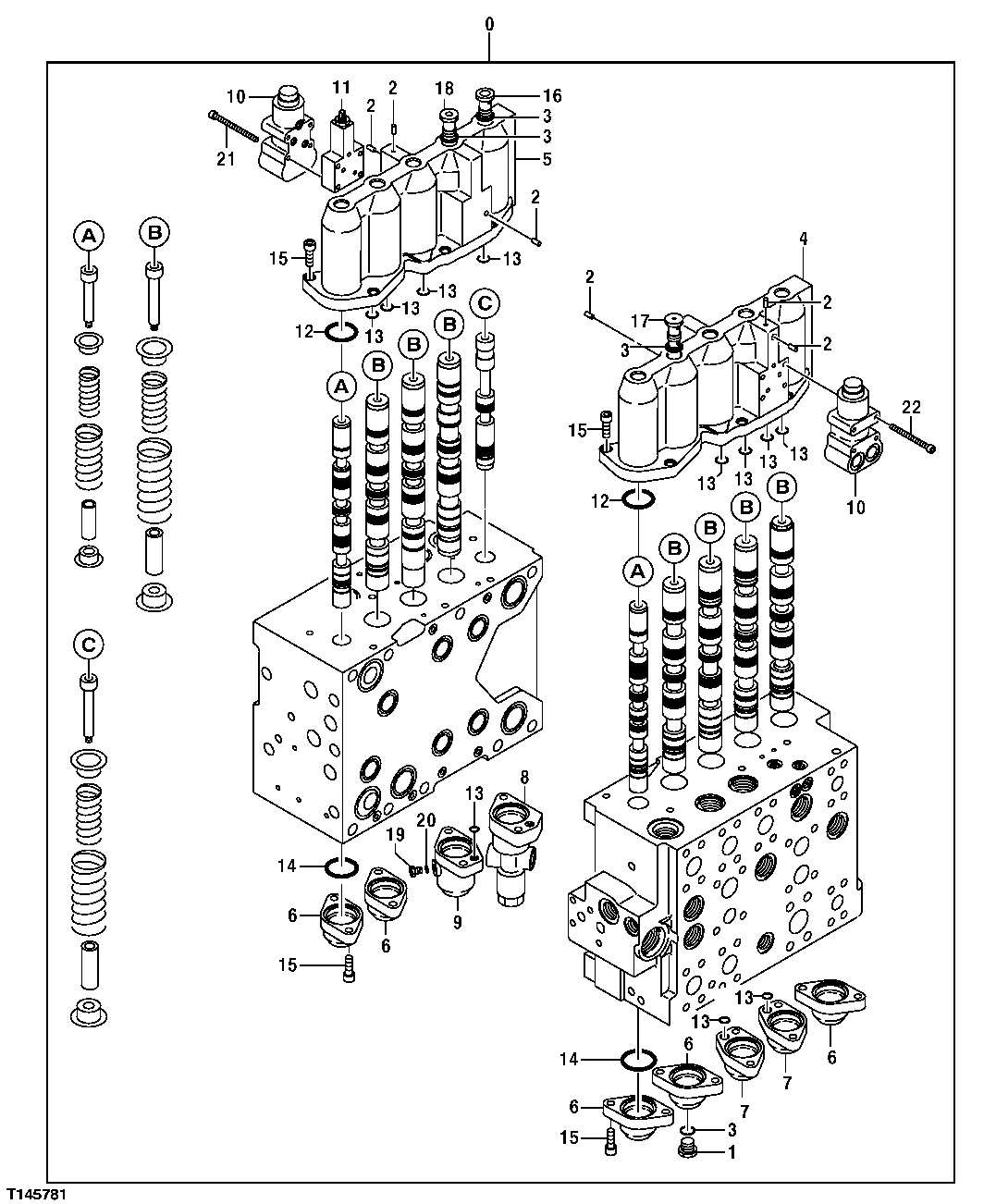

Запчасти John Deere 35C RTS 493 - CONTROL VALVE COMPONENTS (FOUR AND FIVE SPOOL SIDES) 3360 HYDRAULIC SYSTEM

0

4433970

Hyd Actuated Control Valve

1шт.

1

AT219507

Fitting Plug

1шт.

2

15H560

Pipe Plug

1/16"

6шт.

3

CH11570

O-Ring

6шт.

4

TH0718902

Cover

(SUB FOR AT219508)

1шт.

5

AT219509

Cover

1шт.

6

AT219510

Cover

5шт.

7

AT219511

Cover

2шт.

8

0718906

Cover

1шт.

9

0718907

Cover

1шт.

10

0816301

Flow Control Hyd. Valve

2шт.

11

0718909

Plate

1шт.

12

A811055

O-Ring

(SUB FOR TH100110)

10шт.

13

CH11568

Packing

11шт.

14

A811040

O-Ring

8шт.

15

19M8439

Screw

M8 X 25

32шт.

16

0718910

Fitting Plug

1шт.

17

0718911

Fitting Plug

1шт.

18

0718912

Fitting Plug

1шт.

19

0718913

Fitting Plug

1шт.

20

E56086

O-Ring

1шт.

21

0384401

Screw

4шт.

22

19M8541

Screw

M6 X 50

4шт.
