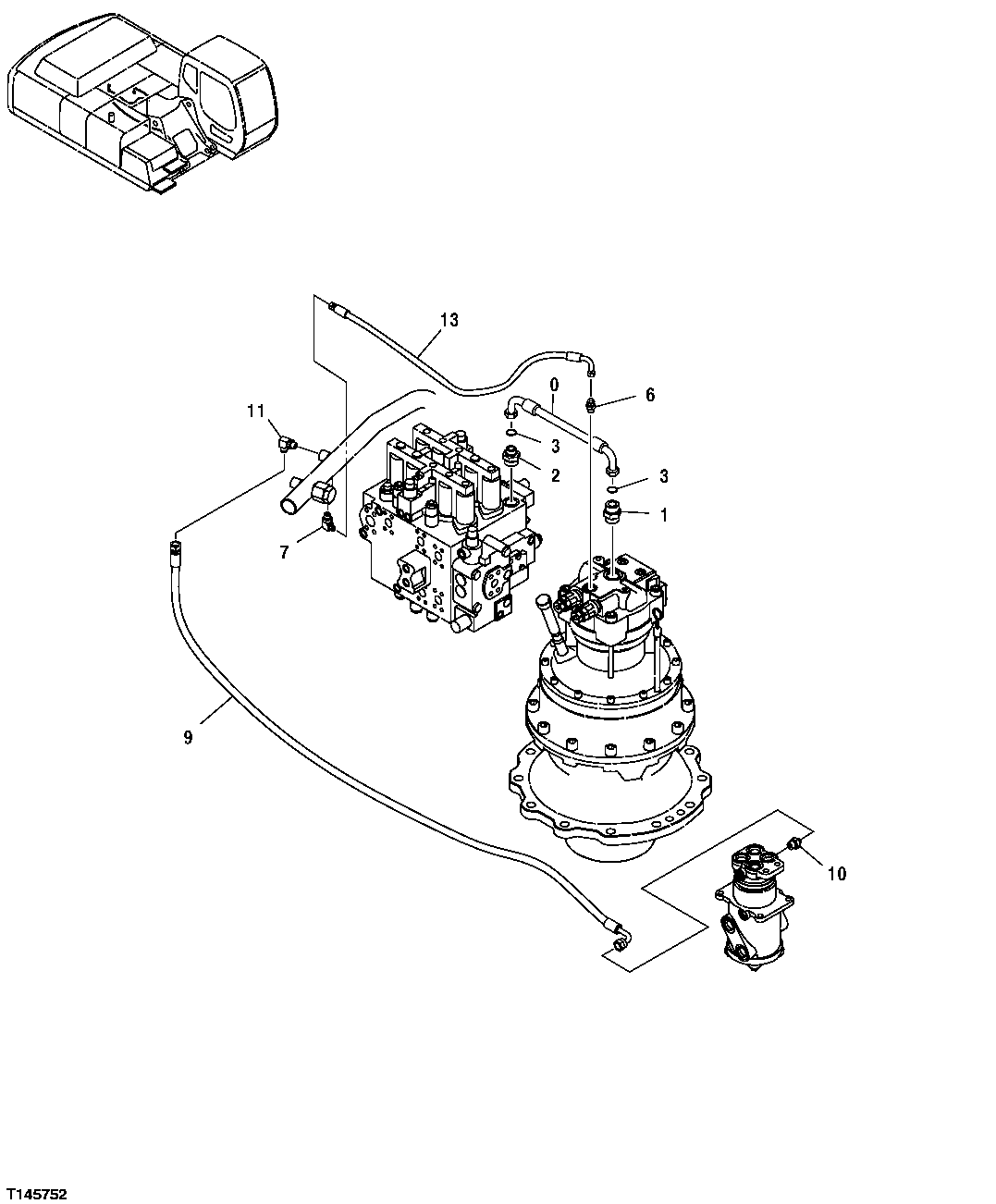

Запчасти John Deere 35C RTS 485 - DRAIN LINES 3360 HYDRAULIC SYSTEM

0

4390646

Hydraulic Hose

1шт.

1

A853188

Adapter Fitting

1шт.

1A

TH101926

O-Ring

(NOT ILLUSTRATED)

1шт.

2

A853168

Adapter Fitting

1шт.

2A

AT318035

O-Ring

(SUB FOR 4506424)(NOT ILLUSTRATED)

1шт.

3

T76938

O-Ring

2шт.

6

A852143

Adapter Fitting

1шт.

6A

4506418

O-Ring

(NOT ILLUSTRATED)

1шт.

7

A852333

Elbow Fitting

1шт.

7A

CH11570

O-Ring

(NOT ILLUSTRATED)

1шт.

9

4313440

Hydraulic Hose

1шт.

10

A852134

Adapter Fitting

1шт.

10A

CH11570

O-Ring

(NOT ILLUSTRATED)

1шт.

11

A852334

Elbow Fitting

1шт.

11A

CH11570

O-Ring

(NOT ILLUSTRATED)

1шт.

13

4452737

Hydraulic Hose

1шт.
