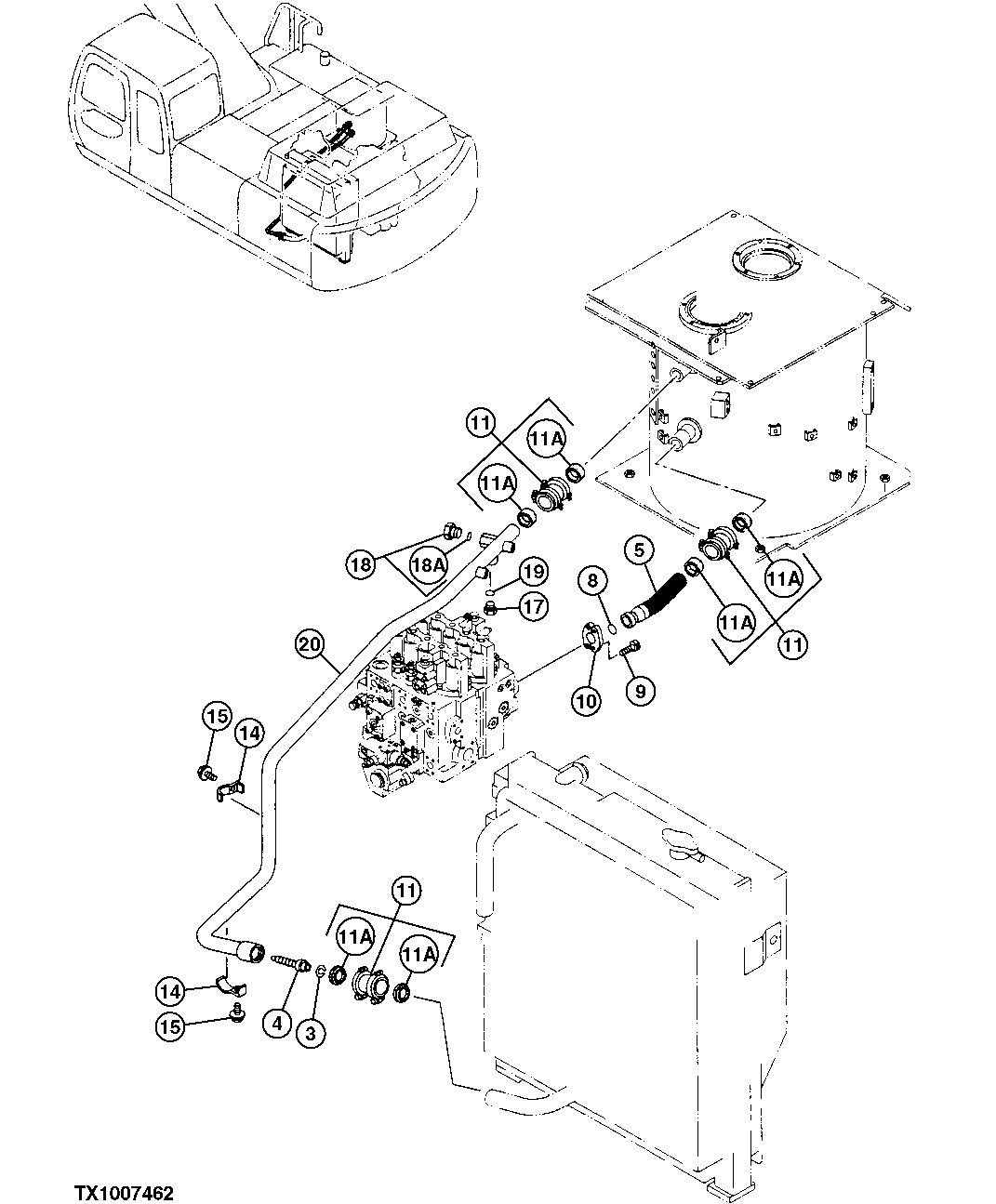

Запчасти John Deere 35C RTS 483 - Return Lines, Oil Cooler To Hydraulic Reservoir 3360 HYDRAULIC SYSTEM

0

7043621

Line

1шт.

3

40M7225

Snap Ring

1шт.

4

4678480

Hydraulic Pressure Valve

SUB FOR 4324256

1шт.

5

8081805

Line

1шт.

8

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

1шт.

9

J781228

Bolt

4шт.

10

R29867

Flange Fitting

2шт.

11

4067834

Coupling

3шт.

11A

4196260

Seal

NLA, ORDER 4067834

2шт.

14

4053697

Clamp

2шт.

15

19M7753

Cap Screw

M12 X 70

2шт.

12H301

Lock Washer

1/2"

2шт.

17

15M7036

Drain Plug

SUB FOR 0309805

1шт.

18

A885008

Pipe Plug

SUB FOR 4113926

1шт.

18A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

19

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
