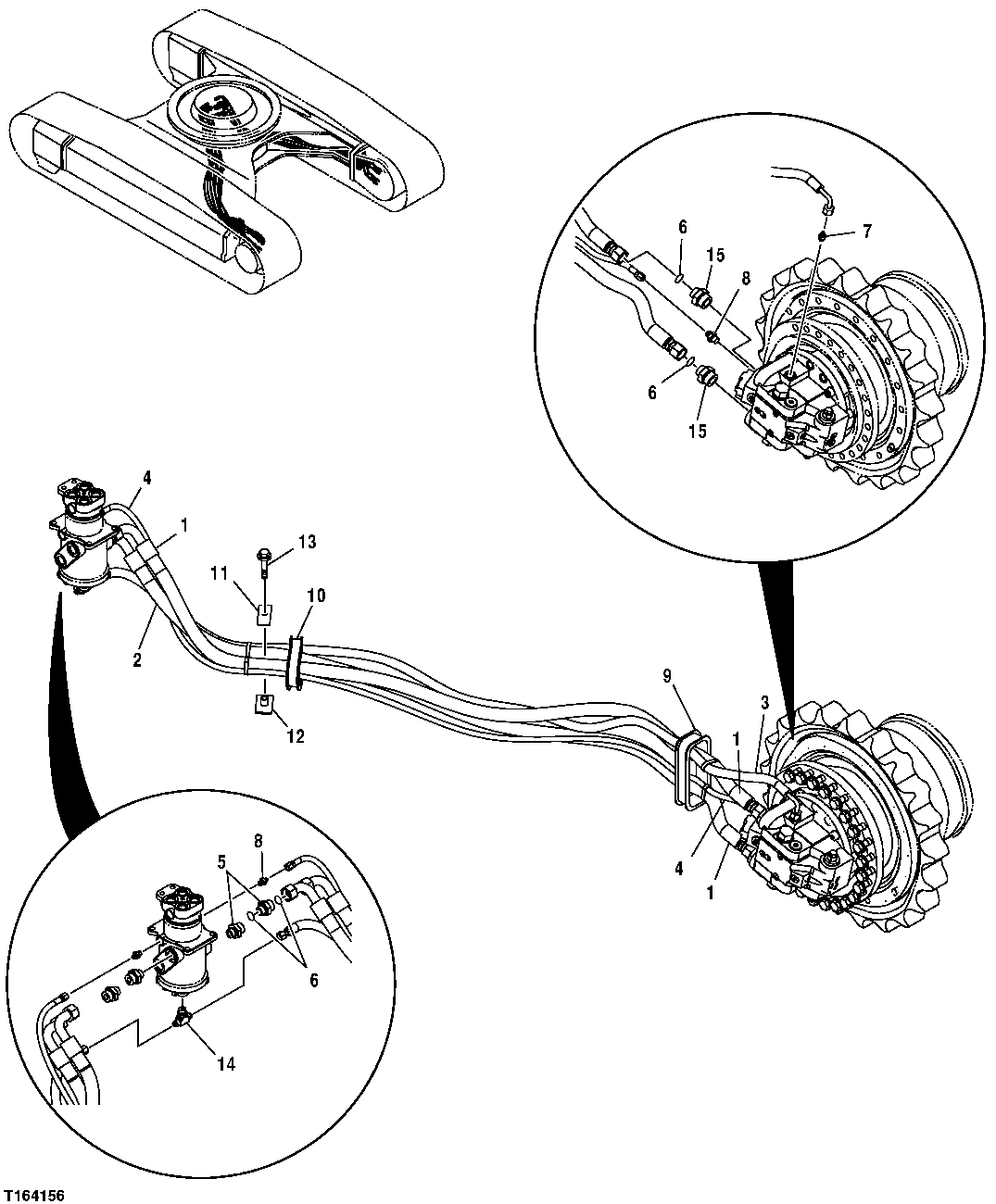

Запчасти John Deere 35C RTS 30 - ROTARY MANIFOLD HOSES TO PROPEL MOTOR (STANDARD DRAWBAR) 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

1

FFSB102061

Hydraulic Hose

(CUT TO 2578MM LENGTH)

2шт.

2

FFSB111640

Hydraulic Hose

2шт.

3

FFSB102060

Hydraulic Hose

(CUT TO 2680MM LENGTH)

2шт.

4

FFSB102059

Hydraulic Hose

(CUT TO 2680MM LENGTH)

2шт.

5

4189601

Adapter Fitting

(SUB FOR FFSB106414)

2шт.

6

T78313

O-Ring

(SUB FOR FFSB106430)

4шт.

7

4210361

Adapter Fitting

(SUB FOR FFSB106418)

2шт.

8

X4-4F4OMXS

Adapter Fitting

(SUB FOR FFSB103515)

4шт.

9

4380020

Grommet

(SUB FOR FFSB106420)

2шт.

10

4396013

Bushing

(SUB FOR FFSB106429)

2шт.

11

4202103

Clamp

(SUB FOR FFSB106422)

2шт.

12

9736782

Clamp

(SUB FOR FFSB106423)

2шт.

13

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB106424)

2шт.

12H301

Lock Washer

1/2" (SUB FOR FFSB106424)

2шт.

14

4221224

Tee Fitting

(SUB FOR AT318018 AND FFSB106417)

1шт.

15

4272493

Adapter Fitting

(SUB FOR FFSB106415)

4шт.

4189535

Adapter Fitting

(SUB FOR FFSB109430)

4шт.

16

4198411

Adapter Fitting

(INCLUDES AT318035, SUB FOR FFSB107032)

2шт.

AT318035

O-Ring

1шт.
