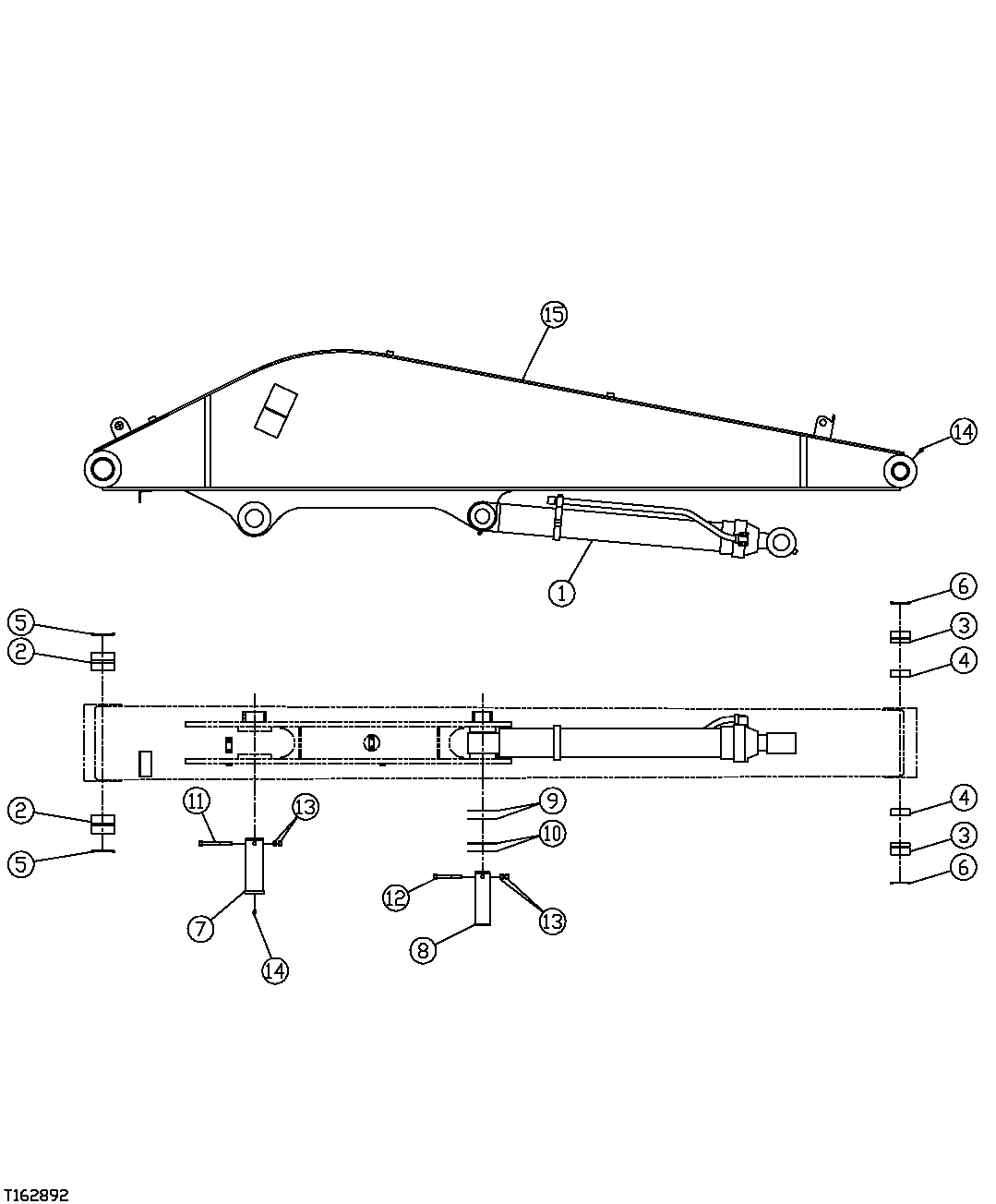

Запчасти John Deere 35C RTS 477 - HEELER ARM ASSEMBLY 3340 ARMS AND ARM ASSEMBLIES

1

Hydraulic Cylinder

( FFSB112809, 9206328 AND 9206361 NLA)

1шт.

4641551

Hydraulic Cylinder

(SUB FOR FFSB115499)

1шт.

2

3055205

Bushing

(SUB FOR FFSB112688)

2шт.

3

4443885

Bushing

(SUB FOR FFSB112016)

2шт.

4

4364501

Bushing

(SUB FOR FFSB112017)

2шт.

5

4251752

Seal

(SUB FOR FFSB112689)

2шт.

6

TH102411

Seal

(SUB FOR FFSB109384, 4074008)

2шт.

7

FFSB107208

Pin Fastener

1шт.

8

FFSB107255

Pin Fastener

1шт.

9

4101281

Washer

(SUB FOR FFSB108127)

2шт.

10

4142950

Washer

(SUB FOR FFSB108128)

2шт.

11

19M8100

Cap Screw

M20 X 180 (SUB FOR FFSB109230)

1шт.

12

19M7921

Cap Screw

M20 X 150 (SUB FOR FFSB109286)

1шт.

13

14M7277

Nut

M20 (SUB FOR FFSB109330)

4шт.

14

JD7769

Lubrication Fitting

(SUB FOR FFSB104342)

3шт.

15

FFSB112451

Arm

1шт.
