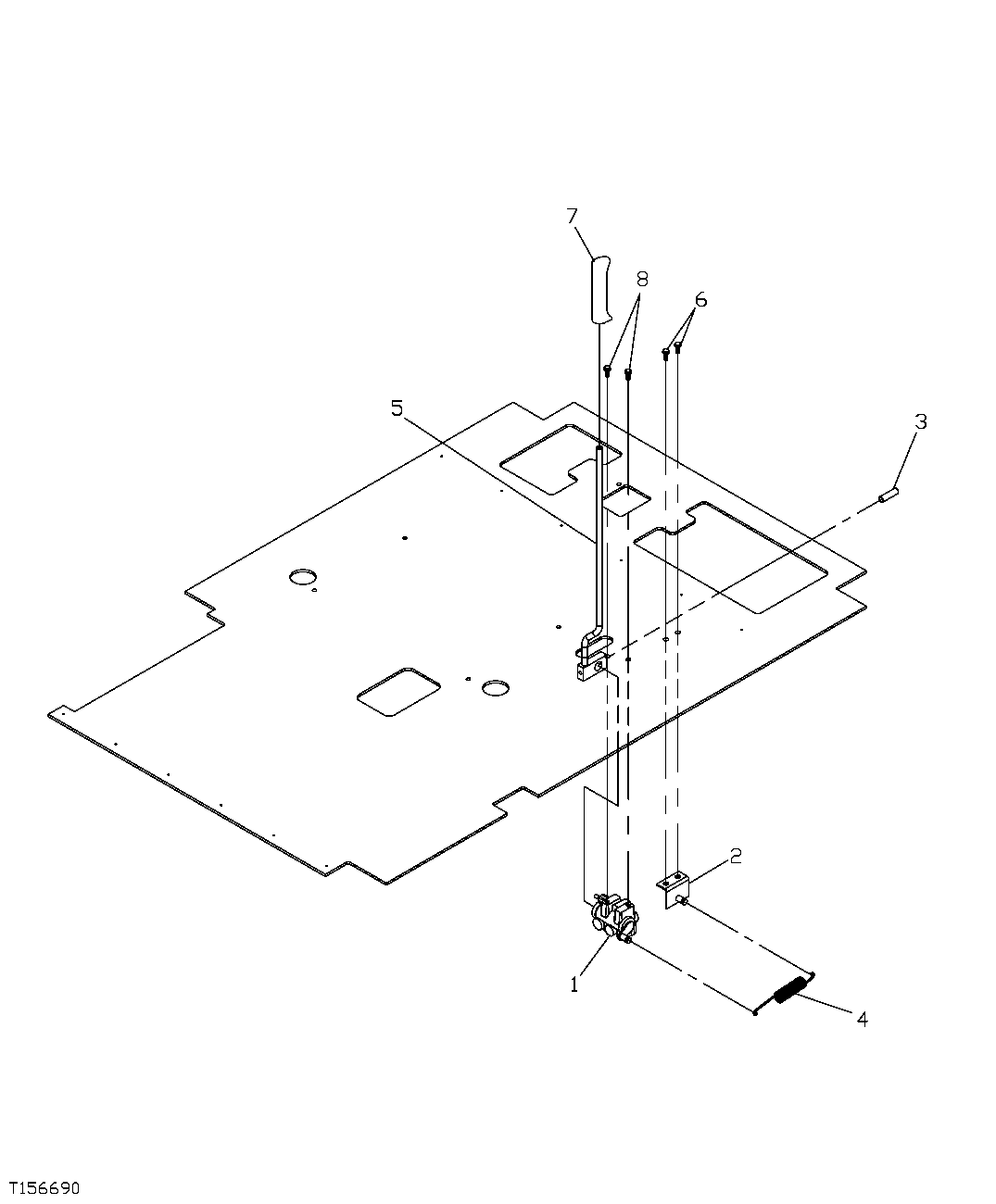

Запчасти John Deere 35C RTS 475 - PILOT SYSTEM SHUTOFF LEVER (REAR ENTRY CAB) 3315 CONTROLS LINKAGE

1

4407253

Flow Control Hyd. Valve

(SUB FOR FFSB112056)

1шт.

2

8073901

Bracket

(SUB FOR FFSB112057)

1шт.

3

4116310

Spring Pin

(SUB FOR FFSB112058)

1шт.

4

4189184

Spring

(SUB FOR FFSB108024)

1шт.

5

FFSB112053

Lever

1шт.

6

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133)

2шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB106133)

2шт.

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB106133)

2шт.

7

3051611

Grip

(SUB FOR FFSB108022)

1шт.

8

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107461)

2шт.

24M7296

Washer

10.500 X 30 X 2.500 mm (SUB FOR FFSB107461)

2шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107461)

2шт.
