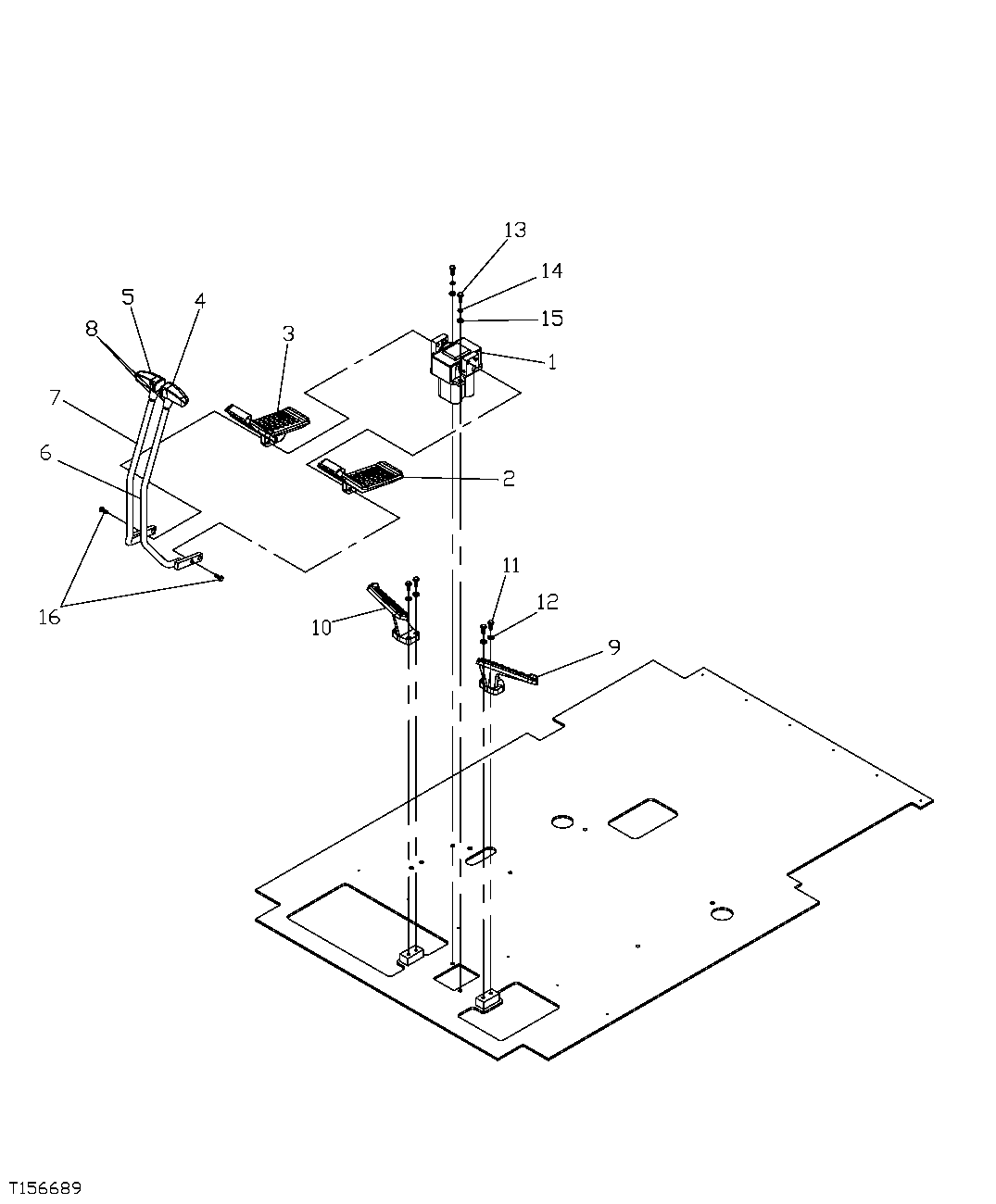

Запчасти John Deere 35C RTS 474 - REAR ENTRY CAB PROPEL PILOT CONTROL LEVERS AND VALVES 3315 CONTROLS LINKAGE

1

9195307

Hydr./Pilot Control Valve

(SUB FOR FFSB112021 AND 9184276)

1шт.

9235551

Hydr./Pilot Control Valve

(SUB FOR 9226365)

1шт.

2

1024224

Pedal

(SUB FOR AND FFSB107949 AND AT202291)

1шт.

3

1024384

Pedal

(SUB FOR AT202292 AND FFSB107948)

1шт.

4

2051177

Grip

(SUB FOR FFSB112022, 2045469)

1шт.

5

2051176

Grip

(SUB FOR FFSB112023, 2045468)

1шт.

6

8075449

Lever

(SUB FOR FFSB112024)

1шт.

7

8075450

Lever

(SUB FOR FFSB112025)

1шт.

8

4424185

Nut

(SUB FOR FFSB112026)

2шт.

9

FFSB106960

Footrest

1шт.

10

FFSB106959

Footrest

1шт.

11

19M7403

Cap Screw

M12 X 35 (SUB FOR FFSB103477)

4шт.

12

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)

4шт.

13

19M8337

Screw

M10 X 30 (SUB FOR FFSB107143)

2шт.

14

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

2шт.

15

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

2шт.

16

19M7866

Screw

M8 X 20 (SUB FOR FFSB112027, J050820, 24M7036 AND 12M7065)

4шт.

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

12M7065

Lock Washer

8 mm

4шт.
