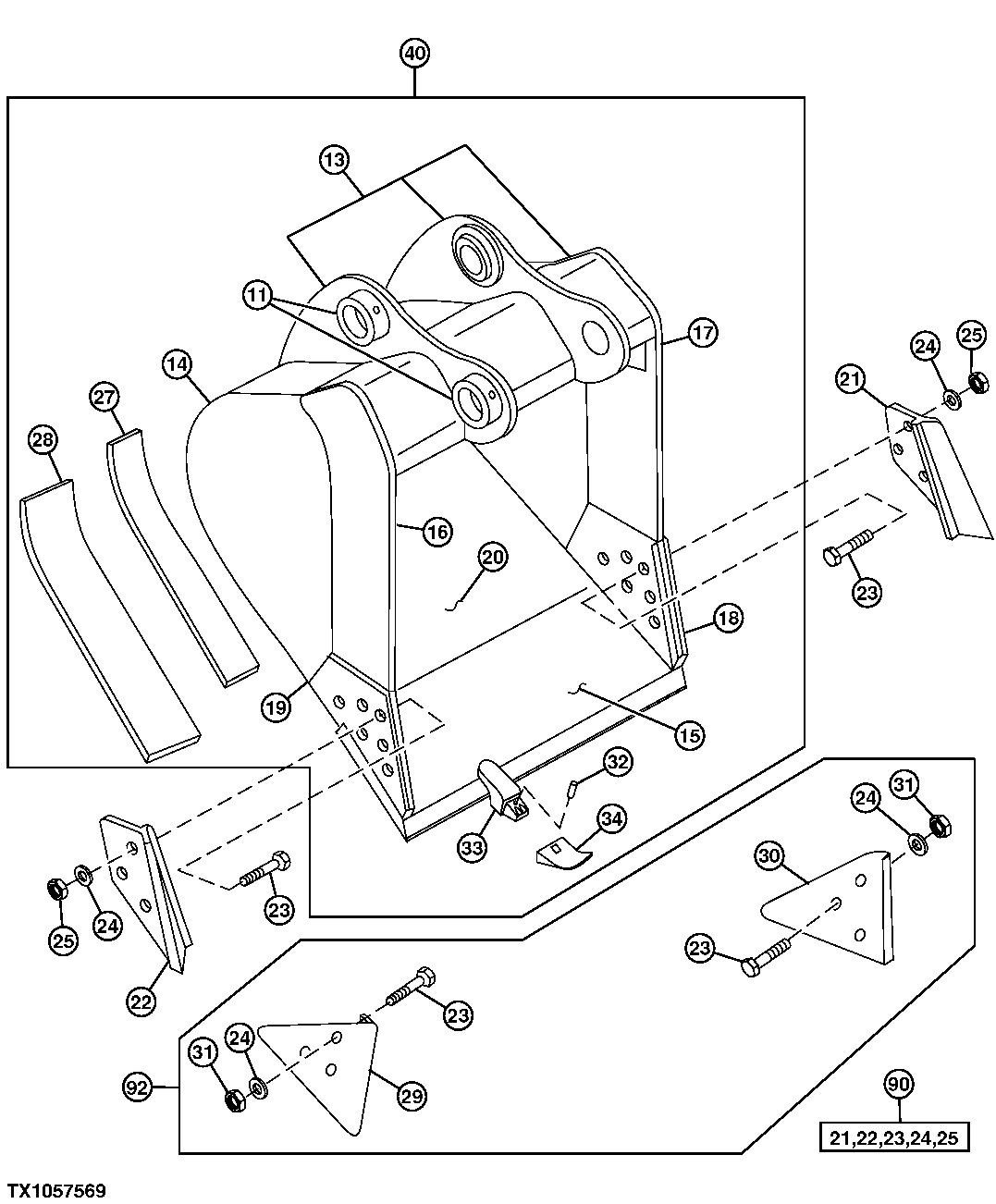

Запчасти John Deere 35C RTS 461 - HEAVY DUTY HIGH CAPACITY BUCKET 3302 BUCKET WITH TEETH

11

Plate

( TH103198 NLA)

2шт.

13

C606071

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

306995

Plate

(F) (RH) (LH) (36 INC H AND 54 INCH BUCKETS)

2шт.

304578

Plate

(F) (RH) (LH) (42 INC H AND 48 INCH BUCKETS)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300283

Vertical Cutter

(F) (UPPER RH) (SIDE CUTTER ) (36 INCH OR 54 INCH BUCKET)

1шт.

301025

Vertical Cutter

(F) (UPPER RH) (SIDE CUTTER ) (42 INCH OR 48 INCH BUCKET)

1шт.

17

300284

Vertical Cutter

(F) (UPPER LH) (SIDE CUTTER ) (36 INCH OR 54 INCH BUCKET)

1шт.

301026

Vertical Cutter

(F) (UPPER LH) (SIDE CUTTER ) (42 INCH OR 48 INCH BUCKET)

1шт.

18

304568

Vertical Cutter

(F) (LH) (SIDE CUTTER INSERT ) (36 INCH OR 54 INCH BUCKET)

1шт.

304577

Vertical Cutter

(F) (LH) (SIDE CUTTER INSERT ) (42 INCH OR 48 INCH BUCKET)

1шт.

19

304567

Vertical Cutter

(F) (RH) (SIDE CUTTER INSERT ) (36 INCH OR 54 INCH BUCKET)

1шт.

304576

Vertical Cutter

(F) (RH) (SIDE CUTTER INSERT ) (42 INCH OR 48 INCH BUCKET)

1шт.

20

600167

Moldboard

(F) (36 INCH BUCKET)

1шт.

600542

Moldboard

(F) (42 INCH BUCKET)

1шт.

600543

Moldboard

(F) (48 INCH BUCKET)

1шт.

600971

Moldboard

(F) (54 INCH BUCKET)

1шт.

21

Cutting Edge

(LH) (SIDE CUTTER)

1шт.

22

Cutting Edge

(RH) (SIDE CUTTER)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300291

Bar

(F) (INNER WEAR) (36 INCH OR 54 INCH BUCKET)

2шт.

301024

Bar

(F) (INNER WEAR) (42 INCH OR 48 INCH BUCKET)

2шт.

28

304559

Bar

(OUTER WEAR) (36 INCH OR 54 INCH BUCKET)

2шт.

304579

Bar

(OUTER WEAR) (42 INCH OR 48 INCH BUCKET)

2шт.

29

Shroud

(RH) (EDGE PROTECTOR)

1шт.

30

Shroud

(LH) (EDGE PROTECTOR)

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

40

Excavator Bucket

(SUB FOR AT163662)( AT332731 NLA) (30 IN CH - 1.26 CUBIC YARD) (REQUIRES 4 TEETH)

1шт.

Excavator Bucket

(SUB FOR AT167298 ) (SUB AT3392 25)( AT332732 NLA) (36 INCH - 1. 56 CUBIC YARD) (REQUIRES 4 TEETH )

1шт.

Excavator Bucket

(SUB FOR AT163664 ) (SUB AT3392 27)( AT332733 NLA) (42 INCH - 1. 85 CUBIC YARD) (REQUIRES 5 TEETH )

1шт.

Excavator Bucket

(SUB FOR AT163665 ) (SUB AT3392 30)( AT332734 NLA) (48 INCH - 2. 15 CUBIC YARD) (REQUIRES 6 TEETH )

1шт.

Excavator Bucket

(SUB FOR AT167299 ) (SUB AT3392 32)( AT332735 NLA) (54 INCH - 2. 45 CUBIC YARD) (REQUIRES 6 TEETH )

1шт.

90

Kit

( AT131085 NLA) Side Cutter Kit

1шт.

92

Kit

( AT167876 NLA) Edge Protector Kit

1шт.
