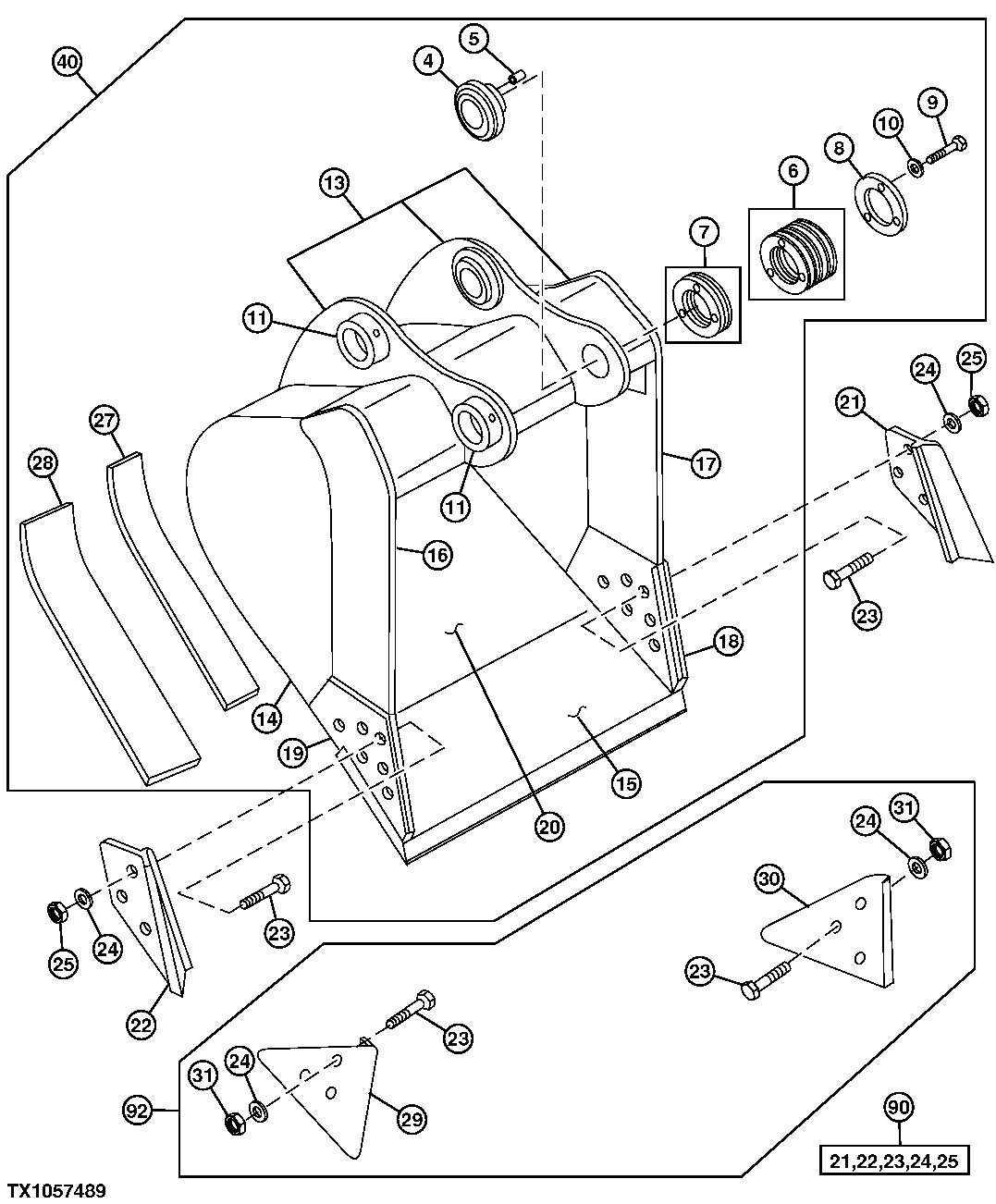

Запчасти John Deere 35C RTS 460 - HEAVY DUTY HIGH CAPACITY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 BUCKET WITH TEETH

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

1шт.

6

4143524

Washer

(1 MM), (SUB FOR TH103235)

6шт.

7

4143525

Shim

(SUB FOR TH103236)

2шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

Plate

( TH103198 NLA)

2шт.

13

C606071

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

306995

Plate

(F) (RH) (LH) (36 INC H AND 54 INCH BUCKETS)

2шт.

304578

Plate

(F) (RH) (LH) (42 INC H AND 48 INCH BUCKETS)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300283

Vertical Cutter

(F) (UPPER RH) (SIDE CUTTER ) (36 INCH OR 54 INCH BUCKET)

1шт.

301025

Vertical Cutter

(F) (UPPER RH) (SIDE CUTTER ) (42 INCH OR 48 INCH BUCKET)

1шт.

17

300284

Vertical Cutter

(F) (UPPER LH) (SIDE CUTTER ) (36 INCH OR 54 INCH BUCKET)

1шт.

301026

Vertical Cutter

(F) (UPPER LH) (SIDE CUTTER ) (42 INCH OR 48 INCH BUCKET)

1шт.

18

304568

Vertical Cutter

(F) (LH) (SIDE CUTTER INSERT ) (36 INCH OR 54 INCH BUCKET)

1шт.

304577

Vertical Cutter

(F) (LH) (SIDE CUTTER INSERT ) (42 INCH OR 48 INCH BUCKET)

1шт.

19

304567

Vertical Cutter

(F) (RH) (SIDE CUTTER INSERT ) (36 INCH OR 54 INCH BUCKET)

1шт.

304576

Vertical Cutter

(F) (RH) (SIDE CUTTER INSERT ) (42 INCH OR 48 INCH BUCKET)

1шт.

20

600167

Moldboard

(F) (36 INCH BUCKET)

1шт.

600542

Moldboard

(F) (42 INCH BUCKET)

1шт.

600543

Moldboard

(F) (48 INCH BUCKET)

1шт.

600971

Moldboard

(F) (54 INCH BUCKET)

1шт.

21

Cutting Edge

(LH) (SIDE CUTTER)

1шт.

22

Cutting Edge

(RH) (SIDE CUTTER)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300291

Bar

(F) (INNER WEAR) (36 INCH OR 54 INCH BUCKET)

2шт.

301024

Bar

(F) (INNER WEAR) (42 INCH OR 48 INCH BUCKET)

2шт.

28

304559

Bar

(OUTER WEAR) (36 INCH OR 54 INCH BUCKET)

2шт.

304579

Bar

(OUTER WEAR) (42 INCH OR 48 INCH BUCKET)

2шт.

29

Shroud

(RH) (EDGE PROTECTOR)

1шт.

30

Shroud

(LH) (EDGE PROTECTOR)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

( AT163662 NLA) (SUB AT332731 (30 INCH - 1.26 CUBIC YARD) (REQUIRES 4 TEETH))

1шт.

Excavator Bucket

( AT167298 NLA) (SUB AT332732 (36 INCH - 1.56 CUBIC YARD) (REQUIRES 4 TEETH))

1шт.

Excavator Bucket

( AT163664 NLA) (SUB AT332733 (42 INCH - 1.85 CUBIC YARD) (REQUIRES 5 TEETH))

1шт.

Excavator Bucket

( AT163665 NLA) (SUB AT332734 (48 INCH - 2.15 CUBIC YARD) (REQUIRES 6 TEETH))

1шт.

Excavator Bucket

( AT167299 NLA) (SUB AT332735 (54 INCH - 2.45 CUBIC YARD) (REQUIRES 6 TEETH))

1шт.

90

End Bit

( AT131085 NLA) Side Cutter Kit

1шт.

92

Kit

( AT167876 NLA) Edge Protector Kit

1шт.
