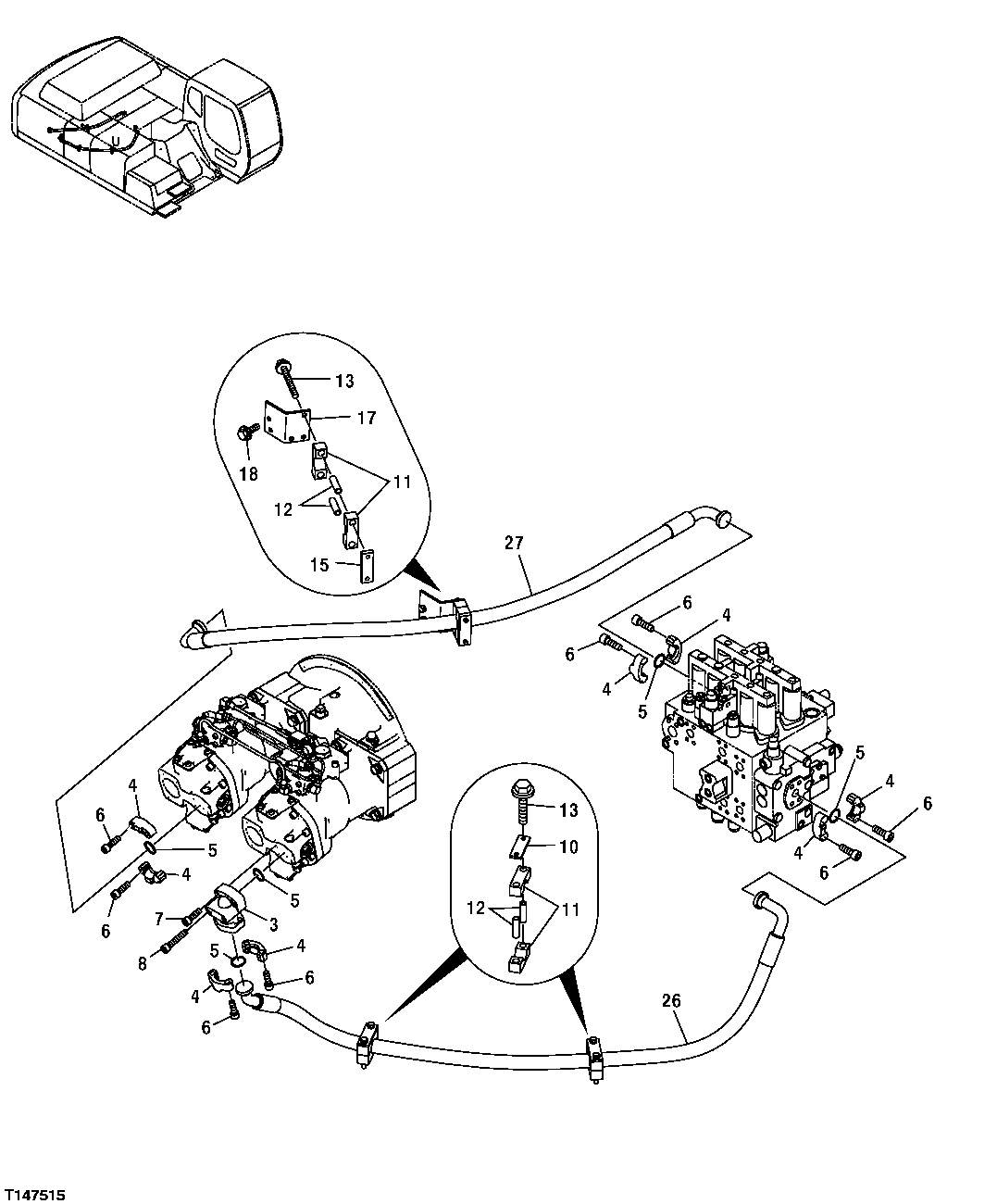

Запчасти John Deere 35C RTS 446 - HYDRAULIC PUMP HOSES TO CONTROL VALVE 2160 VEHICLE HYDRAULICS

3

2035088

Manifold

1шт.

4

4085560

Flange Fitting

8шт.

5

T78313

O-Ring

5шт.

6

19M9163

Screw

M12 X 40 (SUB FOR J781240)

16шт.

7

19M8273

Screw

M12 X 45 (SUB FOR J781245)

2шт.

8

19M9044

Screw

M12 X 80 (SUB FOR J781280)

2шт.

10

4195494

Plate

2шт.

11

4323361

Clamp

6шт.

12

4323362

Bushing

6шт.

13

19M8183

Cap Screw

M10 X 90 (SUB FOR AT153803)

6шт.

12M7066

Lock Washer

10 mm

6шт.

15

4255264

Strap

1шт.

17

8071346

Bracket

1шт.

18

19M7402

Cap Screw

M10 X 25

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

26

4408358

Hydraulic Hose

1шт.

27

4398036

Hydraulic Hose

1шт.
