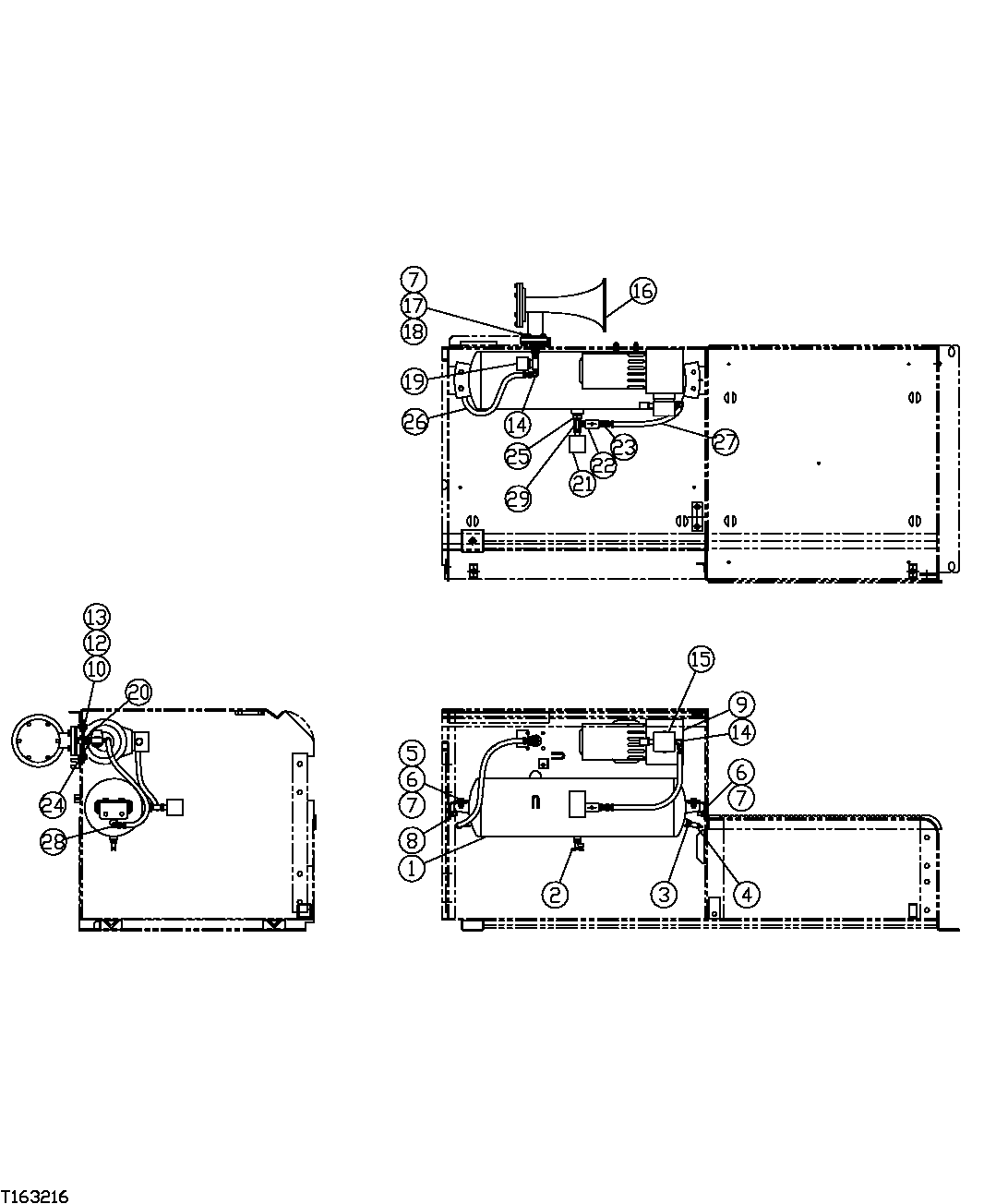

Запчасти John Deere 35C RTS 436 - AIR HORN, COMPRESSOR, TANK, AND HOSES 2004 WARNING DEVICES INCLUDING HORN & REVERSE ALARM

1

FFSB102132

Tank

1шт.

2

AT365267

Pressure Relief Valve

SUB FOR FFSB111681

1шт.

3

Reducer

PMH1309 NLA SUB FOR FFSB106391

1шт.

4

FFSB102134

Pressure Relief Valve

1шт.

5

19M7167

Cap Screw

M10 X 25 SUB FOR FFSB108726

4шт.

6

14M7274

Nut

M10 SUB FOR FFSB107411

8шт.

7

12M7066

Lock Washer

10 mm SUB FOR FFSB107409

12шт.

8

FFSB112867

Bracket

2шт.

9

FFSB103451

Compressor

1шт.

FFSB109832

Filter

1шт.

10

12M7065

Lock Washer

8 mm SUB FOR FFSB103370

4шт.

12

24M7036

Washer

9 X 16 X 1.600 mm SUB FOR FFSB109347

4шт.

13

19M7163

Cap Screw

M8 X 25 SUB FOR FFSB109186

4шт.

14

X6CTX-S

Elbow Fitting

SUB FOR X2103-4-6, SUB FOR FFSB104366

2шт.

15

R55233

Pipe Plug

SUB FOR X01CP-4, SUB FOR FFSB106291 AND X1/4HP-S

1шт.

16

FFSB102136

Horn

1шт.

17

19M7382

Cap Screw

M10 X 40 SUB FOR FFSB109189

4шт.

18

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR FFSB107142

4шт.

19

FFSB108341

Flow Control Hyd. Valve

1шт.

20

PMH1221

Reducer

SUB FOR FFSB109420

1шт.

21

FFSB102131

Pressure Switch

1шт.

22

FFSB102130

Check Valve

1шт.

23

X6FTX-S

Adapter Fitting

SUB FOR FFSB102172

1шт.

24

T79627

Threaded Nipple

SUB FOR FFSB109409

1шт.

25

15H607

Pipe Bushing

1/4" SUB FOR FFSB104365

1шт.

26

FFSB112869

Hydraulic Hose

1шт.

27

FFSB107633

Hydraulic Hose

1шт.

28

X6-6CTX-S

Elbow Fitting

(SUB FOR FFSB104334)( X4- 6CTX-S AND FFSB104338 NLA)

1шт.

29

X1/4RRS-S

Adapter Fitting

SUB FOR FFSB112949

1шт.
