431 - RADIO SPEAKERS AND SPEAKER WIRING HARNESS

Запчасти John Deere 35C RTS 431 - RADIO SPEAKERS AND SPEAKER WIRING HARNESS 2001 RADIO

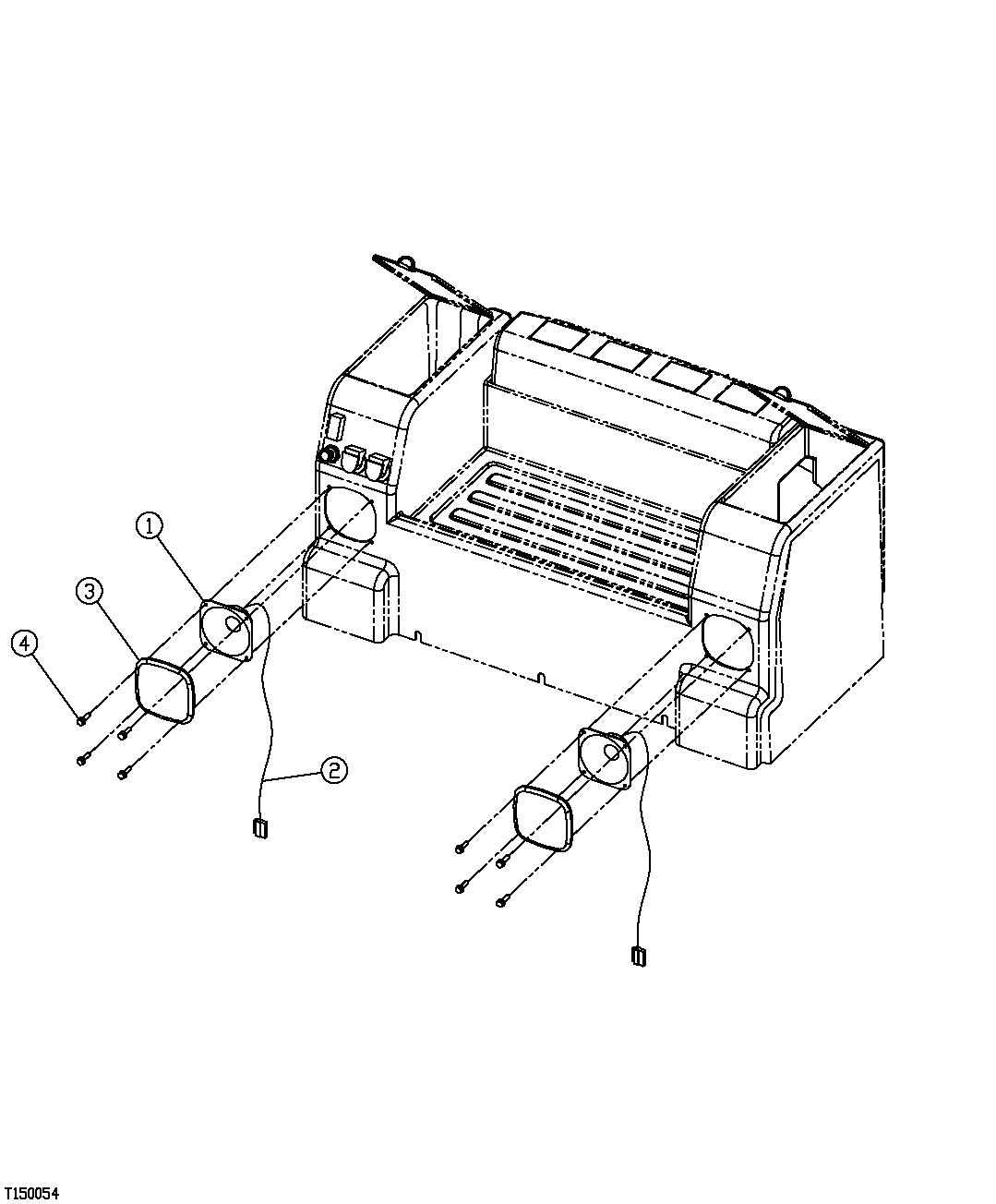

Схема запчастей John Deere 35C RTS - 431 - RADIO SPEAKERS AND SPEAKER WIRING HARNESS 2001 RADIO
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4361302

Speaker

(SUB FOR FFSB106817 ) (SUB FOR AT214007)

2шт.

2

4369547

Wiring Harness

(SUB FOR FFSB108182)

2шт.

3

4364504

Grille

(SUB FOR FFSB107752 ) (SUB FOR AT214017)

2шт.

4

21M7250

Screw

M4 X 12 (SUB FOR FFSB105386)

8шт.

12H315

Lock Washer

0.164" (SUB FOR FFSB105 386 ) (SUB FOR 12M7063)

8шт.

24M7117

Washer

4.300 X 9 X 0.800 mm (SUB FOR FFSB105386)

8шт.
