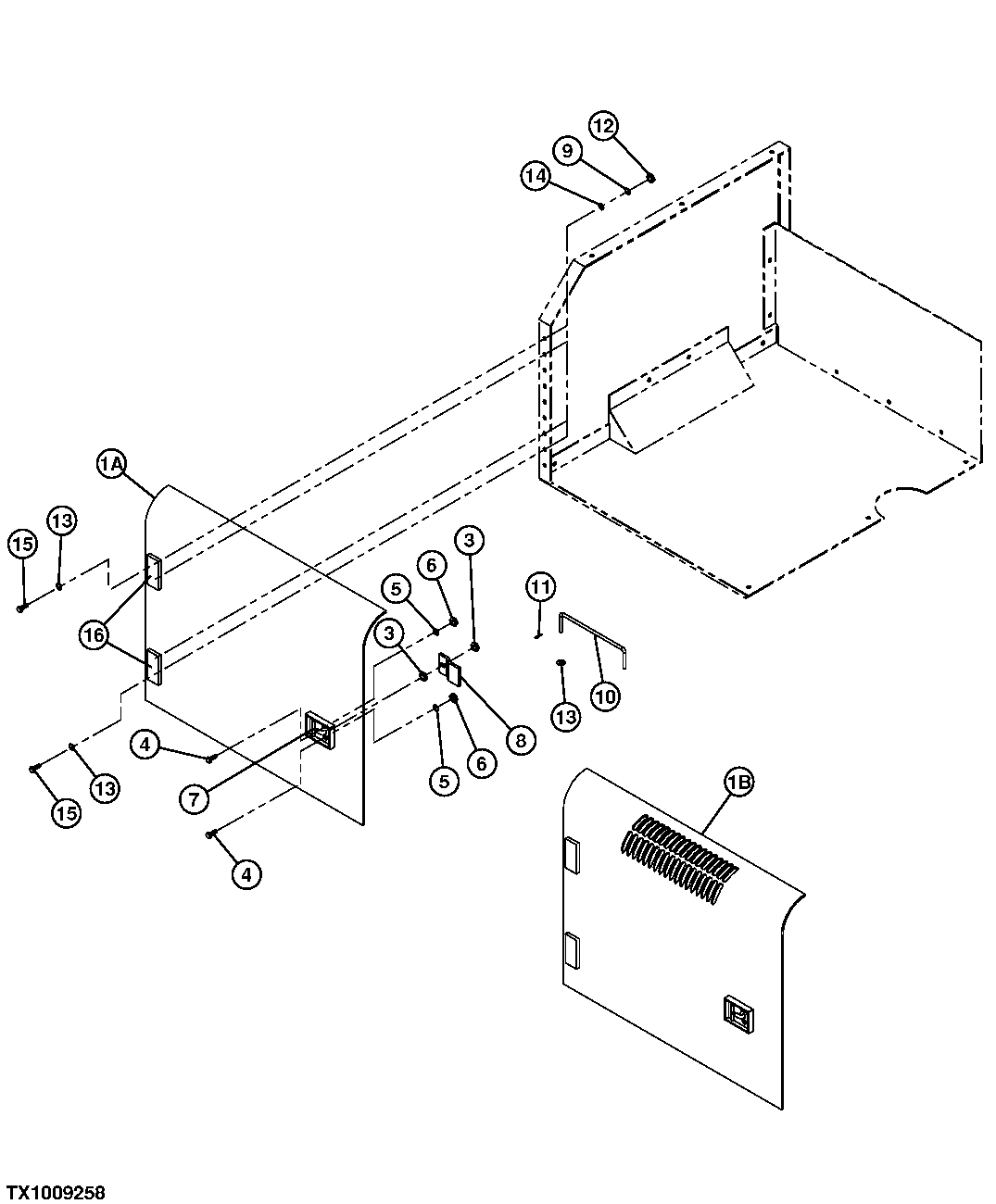

Запчасти John Deere 35C RTS 424 - LEFT FRONT SIDE STORAGE COMPARTMENT DOOR 1910 HOOD OR ENGINE ENCLOSURE

1A

FFSB112763

Door

1шт.

1B

FFSB115581

Door

(USE WITH POWERED CONDENSER)

1шт.

3

14M7141

Nut

M14 (SUB FOR FFSB108115 AND J950014)

2шт.

4

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133 AND J021030)

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

5

24M7028

Washer

10.500 X 20 X 2 mm (SUB F OR FFSB107142 AND A590110)

2шт.

6

14M7274

Nut

M10 (SUB FOR FFSB107411)

2шт.

7

FFSB106270

Latch

1шт.

8

FFSB111739

Cam

1шт.

9

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)( FFSB107961 NLA)

4шт.

10

FFSB110011

Latch

1шт.

11

11M7017

Cotter Pin

3.200 X 32 mm (SUB FOR FF SB108266)( FFSB110014 NLA)

1шт.

12

14M7275

Nut

M12 (SUB FOR FFSB107245)

4шт.

13

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)

5шт.

14

24H1226

Washer

1/2" X 1-1/4" X 0.083"

4шт.

15

19M7403

Cap Screw

M12 X 35 (SUB FOR FFSB109213)

4шт.

16

FFSB115260

Hinge

2шт.
