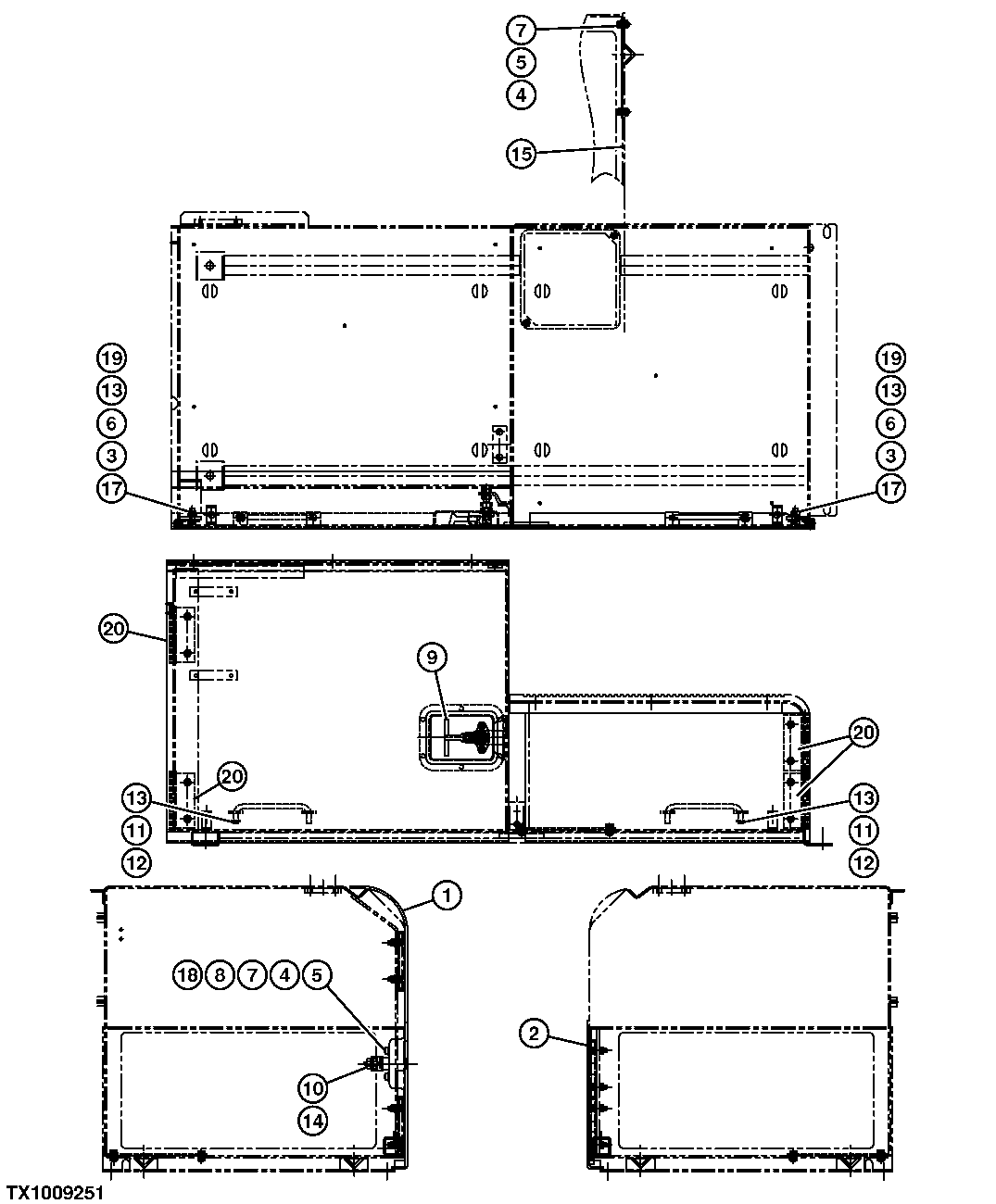

Запчасти John Deere 35C RTS 422 - TOOLBOX DOORS 1910 HOOD OR ENGINE ENCLOSURE

1

FFSB112739

Door

1шт.

2

FFSB112740

Door

1шт.

3

14M7275

Nut

M12 (SUB FOR FFSB107245)

8шт.

4

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB108726 AND 19M7167)

4шт.

5

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

4шт.

6

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)

8шт.

7

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409 AND A599910)

2шт.

8

14M7274

Nut

M10 (SUB FOR FFSB107411)

2шт.

9

FFSB106270

Latch

1шт.

10

FFSB111739

Cam

1шт.

11

FFSB108263

Latch

2шт.

12

11M7017

Cotter Pin

3.200 X 32 mm ( FFSB110014 NLA)

2шт.

13

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)

10шт.

14

14M7141

Nut

M14 (SUB FOR FFSB108115 AND J950014)

2шт.

15

FFSB113301

Plate

1шт.

17

24H1226

Washer

1/2" X 1-1/4" X 0.083" (SUB FOR FFSB108137)

8шт.

18

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

2шт.

19

19M7403

Cap Screw

M12 X 35 (SUB FOR FFSB109213)

8шт.

20

FFSB115262

Hinge

4шт.
