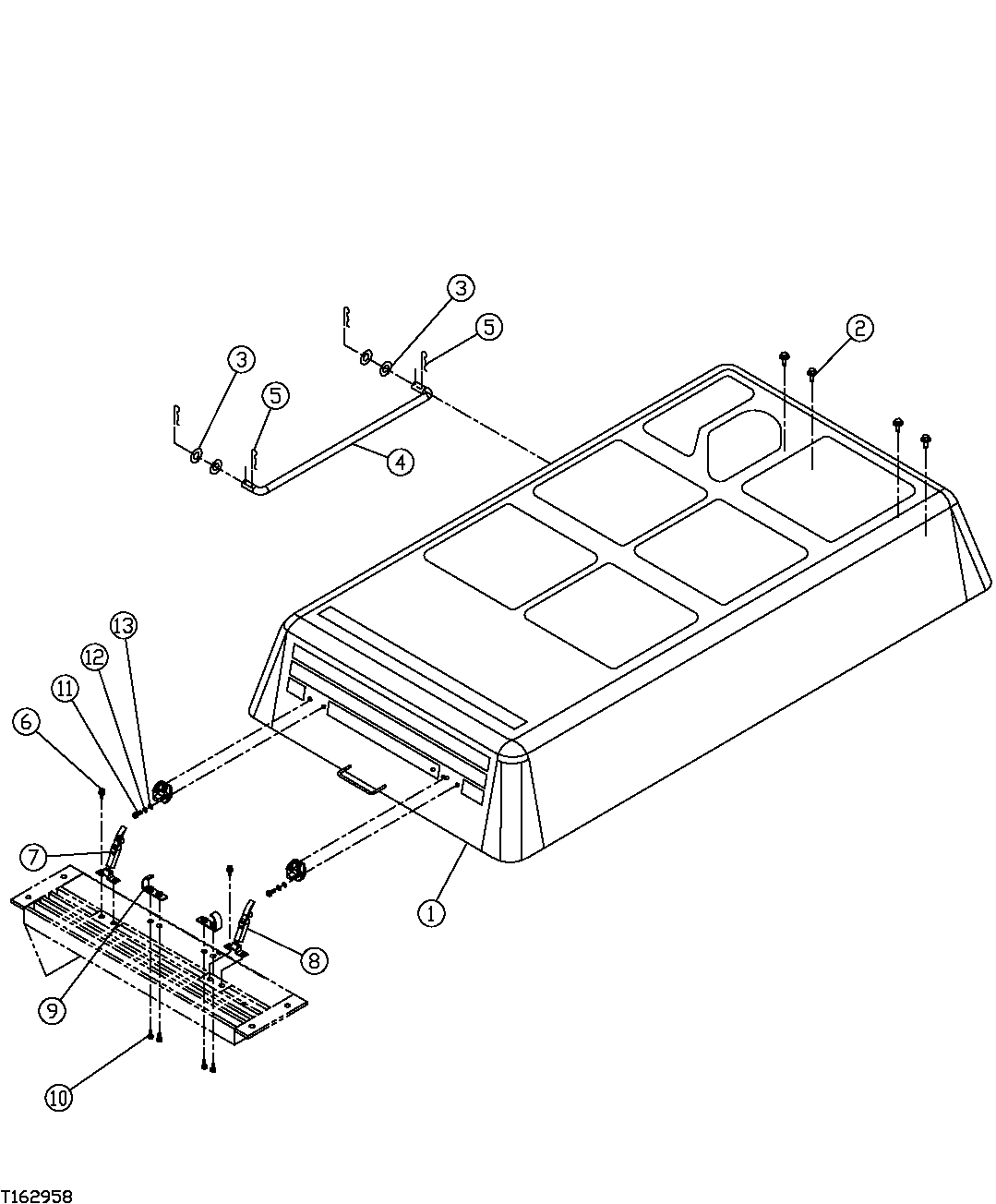

Запчасти John Deere 35C RTS 414 - ENGINE COMPARTMENT HOOD 1910 HOOD OR ENGINE ENCLOSURE

1

FFSB112473

Hood

1шт.

2

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133)

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

3

24M7053

Washer

17 X 30 X 3 mm (SUB FOR FFSB105799)

4шт.

4

4278783

Bracket

(SUB FOR FFSB110878)

1шт.

5

M40461

Spring Locking Pin

(SUB FOR FFSB112616 AND TH100590)

1шт.

6

12M7065

Lock Washer

8 mm (SUB FOR FFSB112212)

4шт.

19M7881

Screw

M8 X 20

4шт.

7

4361438

Catch

(SUB FOR FFSB112617 OR 4361438J)

1шт.

8

4231750

Catch

(SUB FOR FFSB112619 OR 4231750J)

1шт.

9

9749842

Bracket

(SUB FOR FFSB112620)

2шт.

10

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133)

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

11

21M7397

Screw

M8 X 25 (SUB FOR FFSB110857)

4шт.

12

12M7065

Lock Washer

8 mm (SUB FOR FFSB103370)

4шт.

13

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR FFSB107966)

4шт.
