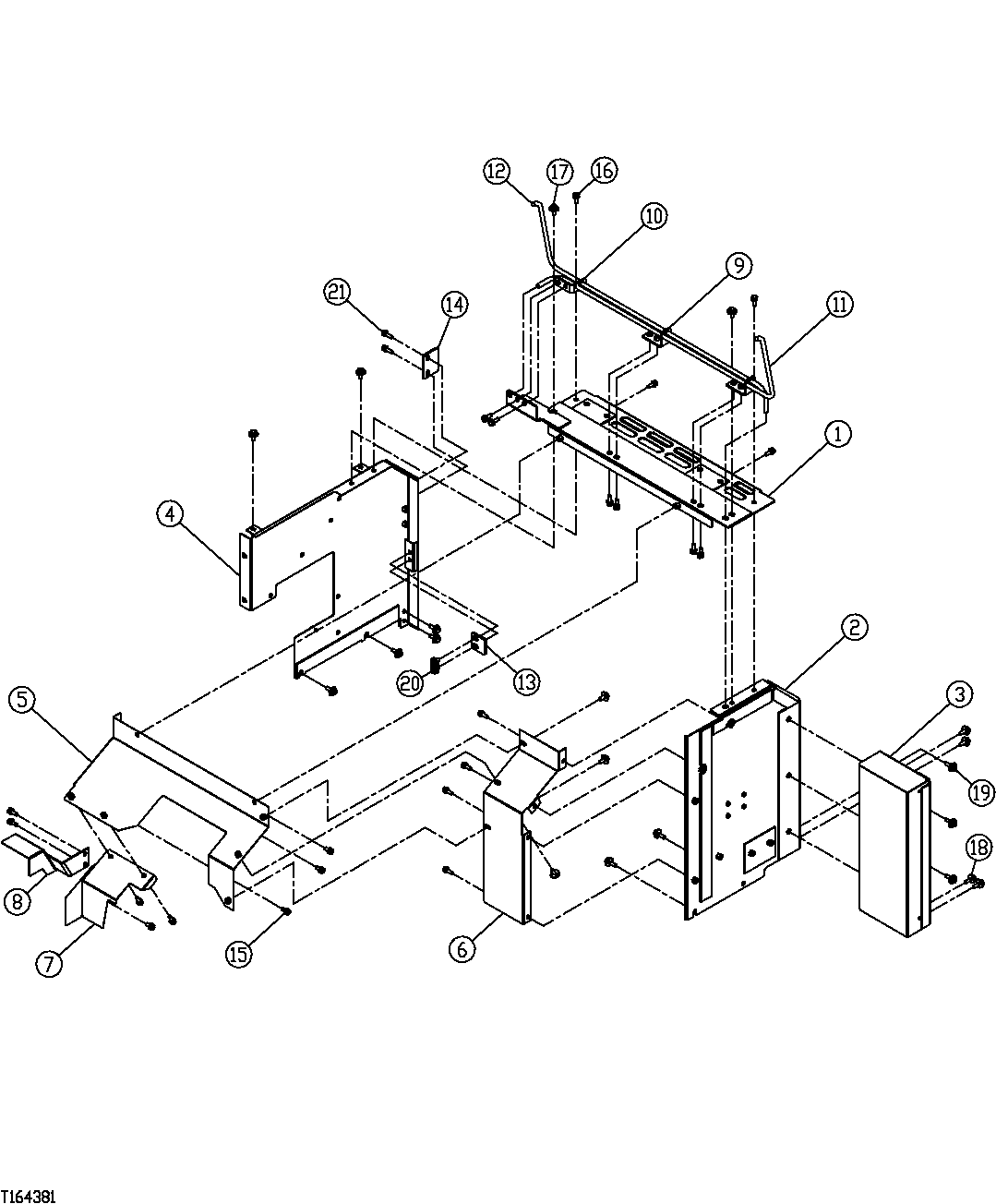

Запчасти John Deere 35C RTS 407 - HYDRAULIC PUMP COMPARTMENT PANELS 1910 HOOD OR ENGINE ENCLOSURE

1

7041014

Cover

(SUB FOR FFSB112553)

1шт.

2

5008923

Panel

(SUB FOR FFSB112554)

1шт.

3

6021850

Panel

(SUB FOR FFSB112555)

1шт.

4

5008757

Panel

(SUB FOR FFSB112556)

1шт.

5

7040656

Cover

(SUB FOR FFSB112557)

1шт.

6

3092954

Cover

(SUB FOR FFSB112558)

1шт.

7

8086485

Cover

(SUB FOR FFSB112559)

1шт.

8

8088286

Bracket

(SUB FOR FFSB110560)

1шт.

9

9748439

Bracket

(SUB FOR FFSB112561)

2шт.

10

9748440

Bracket

(SUB FOR FFSB112562)

1шт.

11

4397604

Torsion Spring

(SUB FOR FFSB112563)

1шт.

12

4441089

Bar

(SUB FOR FFSB112564)

1шт.

13

DH400400

Plug

( FFSB110585 NLA)

1шт.

14

4479652

Bracket

(SUB FOR FFSB110584)

1шт.

15

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107461)

4шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

16

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133)

18шт.

12M7066

Lock Washer

10 mm

18шт.

24M7028

Washer

10.500 X 20 X 2 mm

18шт.

17

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB109178)

7шт.

12M7067

Lock Washer

12 mm

7шт.

24M7346

Washer

11 X 20 X 2 mm

7шт.

18

AT155588

Bolt

(SUB FOR FFSB109179 AND AT200803)

8шт.

19

19M7358

Cap Screw

M10 X 40 (SUB FOR FFSB110 567, AT200009 OR J031040)

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

5шт.

20

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107219 OR J031025)

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

21

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB107462)

2шт.
